2150 (13B-242G100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Transmission Controls Parts Diagram

Garden Tractor

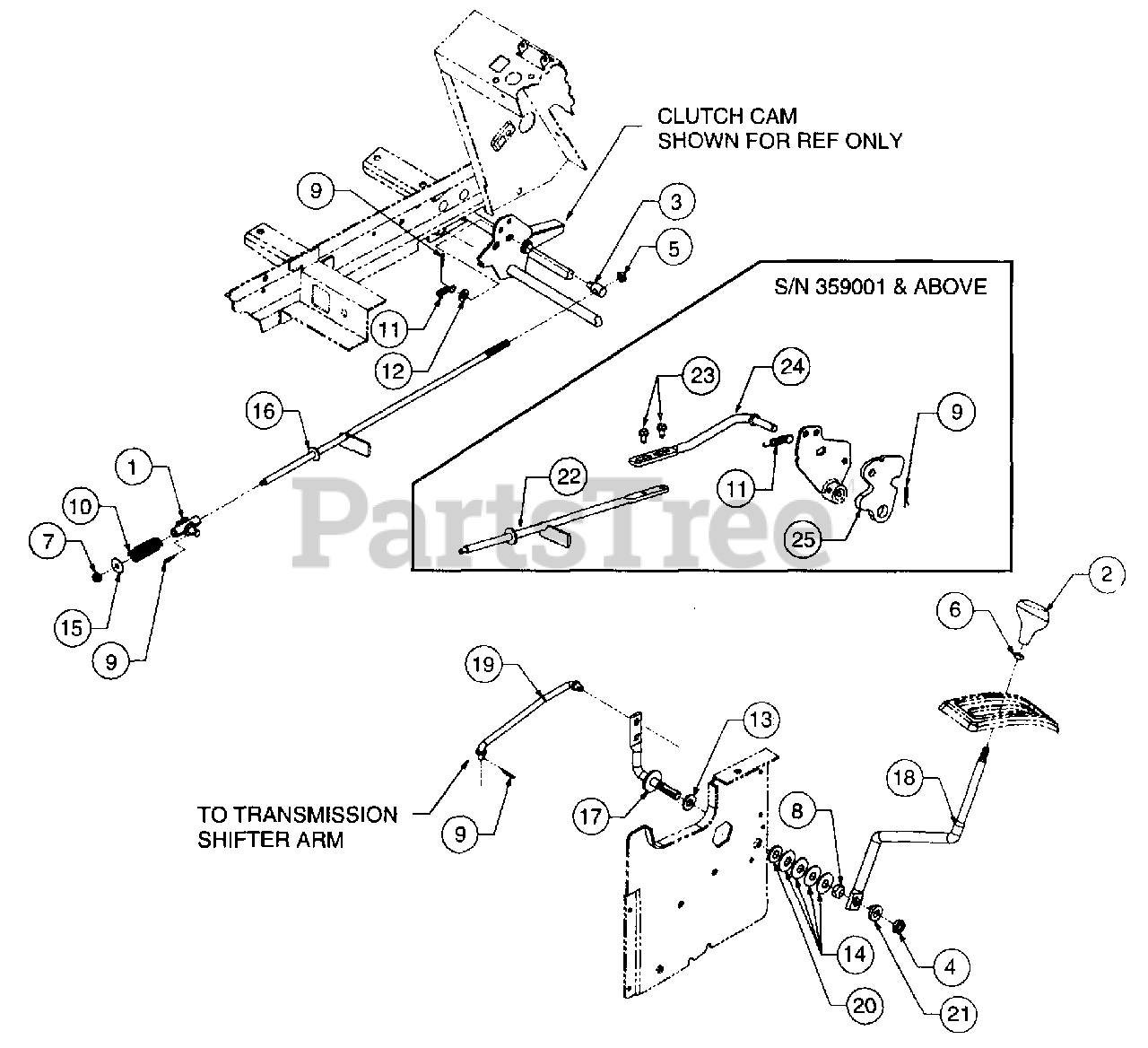

Transmission Controls Parts Diagram

  • Title
1

Cub Cadet 603-0272

Pivot Assy, Sleeve

$

$

Not available

2

Cub Cadet 631-0009

Knob, Shifter
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

3

Cub Cadet 711-3397

Ferrule, Adjustment

Note: (S/N 359000 & Below)

$

$

Not available

4

Cub Cadet 712-3053

Nut, Hex Top Lock, 1/2-20
(Superseded to 912-3053)

$

$

Not available

5

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

Note: (S/N 359000 & Below)

$6.99

$

In Stock, Qty 17

0

6

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

7

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

8

Cub Cadet 712-0333

Nut, Hex, 1/2-20
(Superseded to 912-0333)

$

$

Not available

9

Cub Cadet 714-0104

Pin, Internal Cotter, 5/16 x 1.12

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 732-3094

Spring, Compression, .63 ID x 2.0 Lg
(Superseded to 932-3094)

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-3118

Spring, Extension, .38 OD x 1.44 Lg

$10.99

$

In Stock, only 1 left!

0

12

Cub Cadet 736-0185

Washer, Flat, .406 x .75 x .063

Note: (S/N 359000 & Below)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0326

Washer Flat .510 x 1.0 x .125

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 736-3022

Washer, Bell, .406 x .75 x .063
(Superseded to 936-3022)

$5.49

$

In Stock, only 2 left!

0

15

Cub Cadet 736-3092

Washer, Flat, .265 x 1.0 x .030 Hdn

$3.99

$

In Stock, Qty 9

0

16

Cub Cadet 603-0383

Rod, Clutch Adjustment

Note: (S/N 359000 & Below)

$

$

Not available

17

Cub Cadet 747-3251A

Rod, Shift

$

$

Not available

18

Cub Cadet 747-3252

Rod, Gear Selector

$

$

Not available

19

Cub Cadet 747-3256

Link, 6-Speed Shifter

$

$

Not available

20

Cub Cadet 748-3057

Bushing, Shoulder

$

$

Not available

21

Cub Cadet 748-3058

Hub, Shift
(Superseded to 948-3058)

$

$

Not available

22

Cub Cadet 603-0415

Rod, Clutch

Note: (S/N 359001 & Above)

$

$

Not available

23

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp, 1/4-20 x .5

Note: (S/N 359001 & Above)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 747-3304

Rod, Front Control

Note: (S/N 359001 & Above)

$

$

Not available

25

Cub Cadet 748-3073

Plate, 6-Speed Cruise

Note: (S/N 359001 & Above)

$

$

Not available
