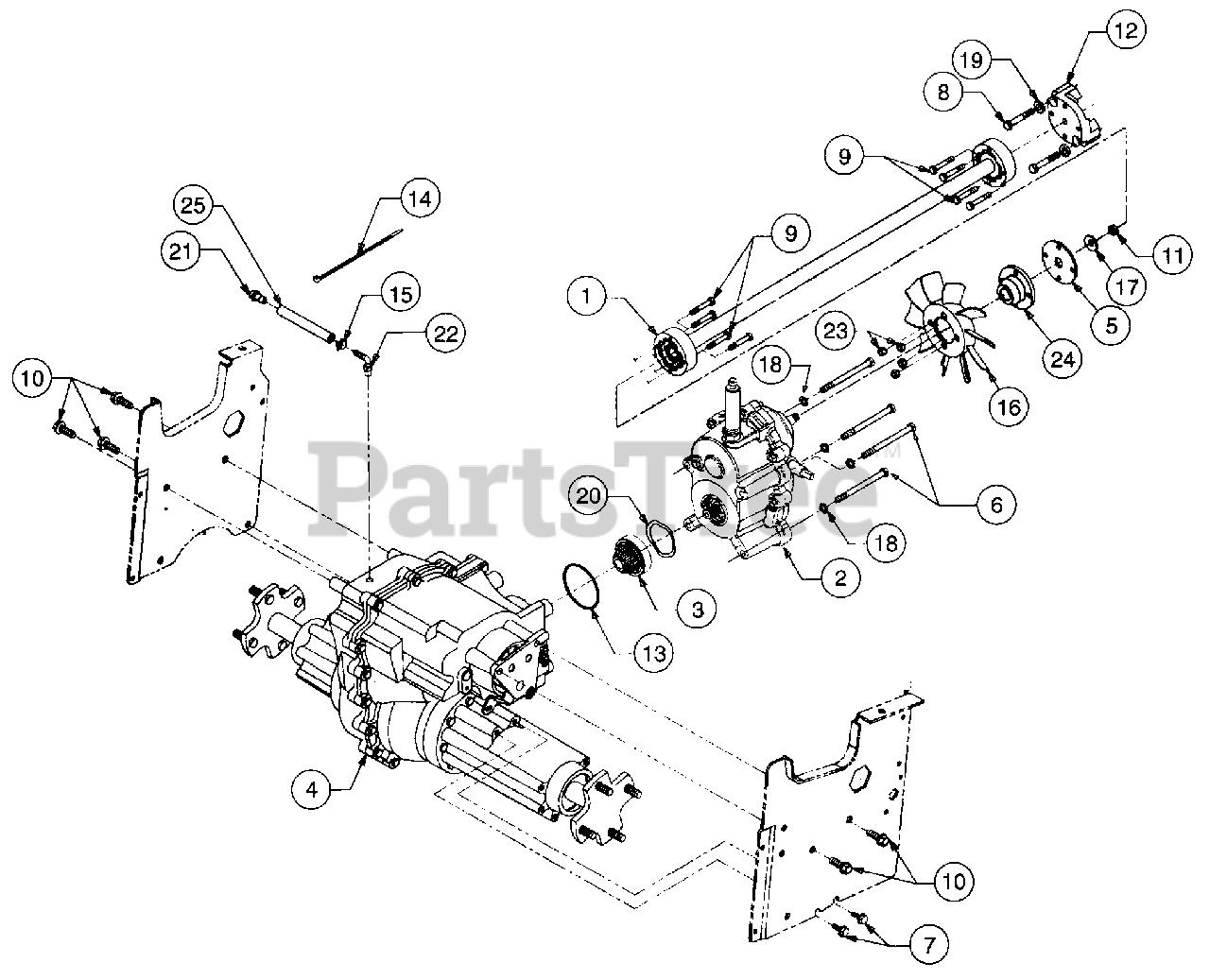

2150 (13B-242G100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Drive Line Parts Diagram

Garden Tractor

Drive Line Parts Diagram

  • Title
1

Cub Cadet 603-0191

Shaft Assy, Drive, 27.87 Lg

$318.99

$

In Stock, only 2 left!

0

Cub Cadet 759-3764

Kit, Drive Barrel

$27.99

$

In Stock, Qty 20+

0

2

Cub Cadet 618-3121

Clutch Assembly

Note: For components see separate parts breakdown for Clutch Assy.

$

$

Not available

3

Cub Cadet 618-3021

Pinion Assy, Input
(Superseded to 918-3021)

$

$

Not available

4

Cub Cadet 618-3059A

Transmission Assy, 6-Speed

Note: For components see separate parts breakdown for Transmission

$

$

Currently unavailable

5

Cub Cadet 703-2687

Plate, Drive Shaft Spacer

$

$

Not available

6

Cub Cadet 710-0190

Screw, Hex Cap 5/16-18 x 4.0 GR5

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1260

Screw, Hex Wash Hd Tapp 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3258

Screw, Hex Patch, M8-1.25 x 50mm

$

$

Not available

9

Cub Cadet 710-3288

Screw, Hex Patch, 1/4-20 x 1.62 GR5

$6.99

$

In Stock, Qty 12

0

10

Cub Cadet 710-3290

Screw, Hex Wash Hd Tapp 3/8-16 x 1.25

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 712-0262

Nut, Hex Center Lock Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$33.99

$

In Stock, only 1 left!

0

13

Cub Cadet 721-0261

O-Ring, 2.75 x 1.03

$9.99

$

In Stock, only 1 left!

0

14

Cub Cadet 725-0157

Tie, Self-Clinch Cable

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 731-3095

Fan, 10 Blade Cooling
(Superseded to 931-3095)

$28.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .063

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-3008

Washer, Flat, .312 x .750 x .119
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-3099

Washer, Spring Wave, 1.96 x 2.44 x .06
(Superseded to 936-3099)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 737-0299

Fitting, Elbow

$

$

Not available

23

Cub Cadet 748-3037

Nut, Fan, 1/4-20
(Superseded to 948-3037)

$

$

Not available

24

Cub Cadet 748-3050

Adapter, Clutch

$

$

Not available

25

Line, Fuel, 7 in. Lg

Note: (Order bulk fuel line part no. 759-3330 10 Ft. long)

$

$

Not available
