2150 (13B-242G100) - Cub Cadet Garden Tractor (SN: 326006 & Above) 6-Speed Transmission Parts Diagram

Garden Tractor

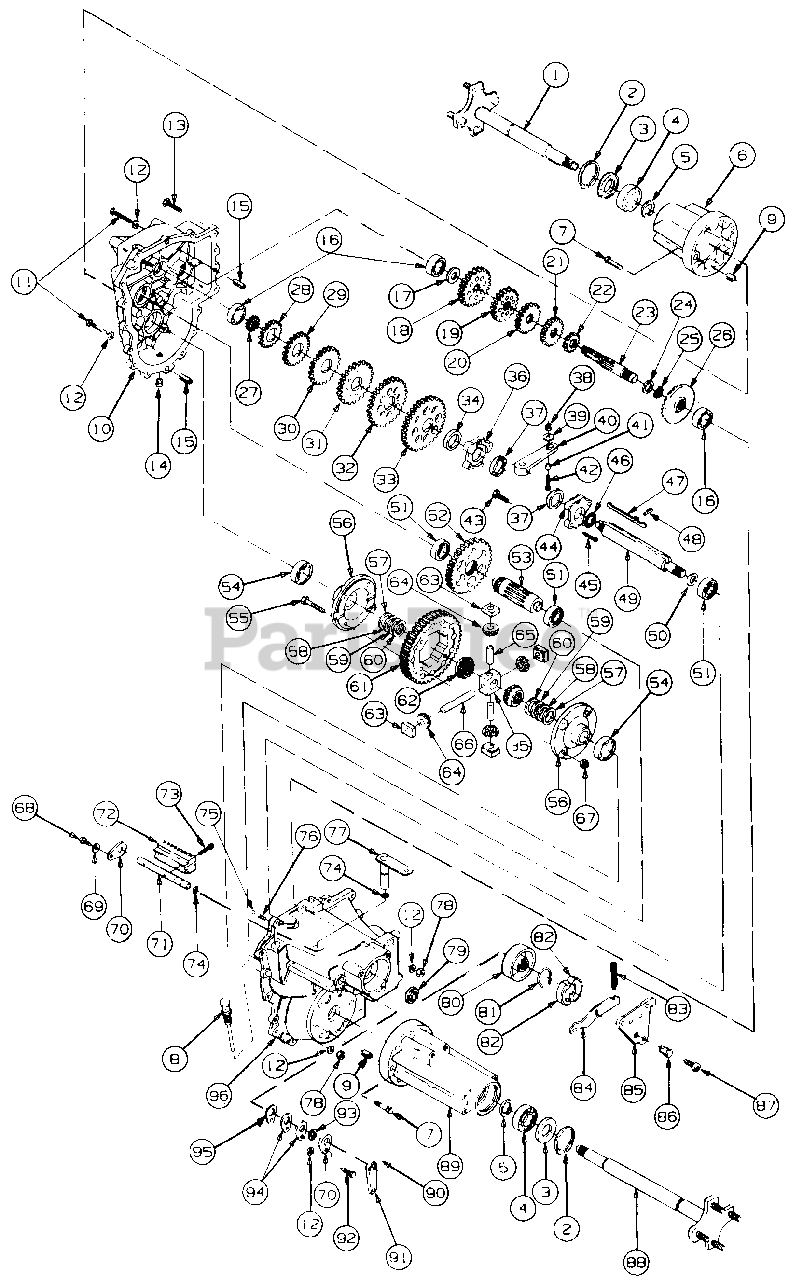

6-Speed Transmission Parts Diagram

  • Title

1

Cub Cadet 611-3008

Axle Assy, LH, 11.9" Lg

$

$

Not available

2

Cub Cadet 716-3015

Ring, Inverted Retainer

$11.99

$

In Stock, only 4 left!

0

3

Cub Cadet 721-3020A

Seal, Oil
(Superseded to 921-3020A)

$12.99

$

In Stock, Qty 17

0

4

Cub Cadet 741-3033A

Bearing
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 7

0

5

Cub Cadet 716-3018

Ring, External Retaining

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 619-3025

Housing, LH Axle

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz Tube

$70.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1008

Crew, Hex L-Wash Tapp, 3/8-16 x 1.88

$5.49

$

In Stock, Qty 9

0

8

Cub Cadet 727-3085

Dipstick, Oil
(Superseded to 927-3085)

$

$

Not available

9

Cub Cadet 715-3045

Bushing, Dowel
(Superseded to 915-3045)

$9.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 619-3037B

Housing, LH Differential
(Superseded to 719-3170)

Note: Replaces 619-3037 by also ordering: (2) 71-3045 dowel bushing: 710-1346 plug & 736-0600 washer.

$250.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz Tube

$70.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 x 1.5

$5.49

$

In Stock, Qty 9

0

12

Cub Cadet 736-0463

Washer, Flat, .25 x .62 x .052

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 710-0788

Screw, Hex Wash Hd Tapp, 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

14

Cub Cadet 737-0177

Plug, 1/2-14 NPTF

Note: Used with 619-3037 LH differential housing

$

$

Not available

Cub Cadet 710-1346

Screw, Plug, M14 x 1.5 x .827

Note: Used with 736-0600 Flat Washer for 619-3037B differential housing

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 715-3038

Pin, Slotted Spring, 7/16-1.0

Note: Used with 619-3037 and 619-3038 LH and RH differential housings

$

$

Not available

Cub Cadet 715-3045

Bushing, Dowel
(Superseded to 915-3045)

Note: Used with 619-3037B and 619-3038A LH and RH differential housings

$9.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 741-0361

Bearing, Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

17

Cub Cadet 736-3101

Washer, Flat, .68 x 1.25 x .060

$

$

Not available

18

Cub Cadet 717-3353

Gear, 27T Drive, Sixth

$

$

Not available

19

Cub Cadet 717-3354

Gear, 23T Drive, Fifth

$

$

Not available

20

Cub Cadet 717-3344

Gear, 20T Drive, Fourth
(Superseded to 917-3344)

$

$

Not available

21

Cub Cadet 717-3351

Gear, 17T Drive, Third

$

$

Not available

22

Cub Cadet 717-3352

Gear, 15T Drive, Second

$

$

Not available

23

Cub Cadet 717-3349

Shaft, Drive w/First

$

$

Not available

24

Cub Cadet 736-3123

Washer, Flat, .765 x 1.125 x .030
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

25

Cub Cadet 736-3122

Washer, Wave, .79 x 1.125 x .012

$

$

Not available

26

Cub Cadet 717-3347

Gear, 36T Bevel

$

$

Not available

27

Cub Cadet 717-3350

Gear, 14T Reduction

$

$

Not available

28

Cub Cadet 717-3357

Gear, 18T Shift, Sixth

$

$

Not available

29

Cub Cadet 717-3358

Gear, 22T Shift, Fifth

$

$

Not available

30

Cub Cadet 717-3359

Gear, 24T Shift, Fourth

$

$

Not available

31

Cub Cadet 717-3360

Gear, 27T Shift, Third

$

$

Not available

32

Cub Cadet 717-3361

Gear, 40T Shift, Second

$

$

Not available

33

Cub Cadet 717-3362

Gear, 58T Shift, First

$

$

Not available

34

Cub Cadet 750-0991

Spacer, Neutral

$

$

Not available

35

Cub Cadet 717-1180

Block, Differential Pinion

$33.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 718-3029

Collar, Shift - LH

$

$

Not available

37

Cub Cadet 718-3030

Spacer, Shift Key

$

$

Not available

38

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0371

Washer, Flat, .343 x .875 x .062

$4.49

$

In Stock, only 3 left!

0

40

Cub Cadet 718-3021

Arm, Key Shifter

$

$

Not available

41

Cub Cadet 750-3104

Spacer, .316 ID x .44 OD x .263 Lg

$

$

Not available

42

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1.0

$3.99

$

In Stock, only 4 left!

0

43

Cub Cadet 710-0573

Screw, Hex Cap, 5/16-18 x 1.25 GR5

$6.49

$

In Stock, Qty 12

0

44

Cub Cadet 718-3028

Collar, Shift - RH

$

$

Not available

45

Cub Cadet 710-3245

Screw, Socket Hd Cap, #10-32 x 1.25

$

$

Not available

46

Cub Cadet 732-3074

Spring, Shift Key

$

$

Not available

47

Cub Cadet 714-3028

Key, Shift

$

$

Not available

48

Cub Cadet 715-3044

Pin, Dowel, 3/16 x 7/8 Lg

$

$

Not available

49

Cub Cadet 711-1039A

Shaft, Shift

$

$

Not available

50

Cub Cadet 736-3119

Washer, Wave, .84 x 1.12 x .016

$

$

Not available

51

Cub Cadet 741-3057

Bearing, Ball, .787 x 1.85 x .551
(Superseded to 941-3057)

$38.99

$

In Stock, Qty 10

0

52

Cub Cadet 717-3345

Gear, 44T Reduction

$

$

Not available

53

Cub Cadet 717-3346

Shaft, 9T Output

$

$

Not available

54

Cub Cadet 741-3037

Bearing, Ball
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

55

Cub Cadet 710-0151

Screw, Hex Cap, 3/8-24 x 2.0

$7.49

$

In Stock, only 3 left!

0

56

Cub Cadet 619-3013

Cover, Differential

$

$

Not available

57

Cub Cadet 736-0423

Washer, Flat, 1.0 x 1.56 x .010 Thk

$

$

Not available

58

Cub Cadet 736-0431

Washer, Flat, 1.0 x 1.56 x .015 Thk
(Superseded to 936-0431)

$

$

Not available

59

Cub Cadet 736-0424

Washer, Flat, 1.0 x 1.56 x .020 Thk
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

60

Cub Cadet 736-0420

Washer, Flat, 1.0 x 1.56 x .040 Thk
(Superseded to 936-0420)

$

$

Not available

61

Cub Cadet 717-1159

Gear, 60T Bull

$

$

Not available

62

Cub Cadet 717-1119

Gear, 14T Differential Side

$44.99

$

In Stock, only 3 left!

0

63

Cub Cadet 717-1190

Block, Differential Thrust

$

$

Not available

64

Cub Cadet 717-1120

Gear, 10T Differential Pinion

$32.99

$

In Stock, only 4 left!

0

65

Cub Cadet 717-1178

Shaft, Cross

$28.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 717-1173

Shaft, Cross, .50 OD x 3.485 Lg

$38.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

68

Cub Cadet 710-0642

Screw, Hex Wash Hd Tapp, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 703-2180

Support, Interlock Shaft

$

$

Not available

71

Cub Cadet 711-3341A

Shaft, Interlock Shift

$

$

Not available

72

Cub Cadet 718-3020

Interlock, Shift

$

$

Not available

73

Cub Cadet 710-3276

Screw, Socket Hd Cap, 1/4-20 x 1.0

$

$

Not available

74

Cub Cadet 721-3033

O-Ring, 1/2 ID x 5/8 OD

$

$

Not available

75

Cub Cadet 741-0862

Ball, Detent, .250 Dia

$4.49

$

In Stock, only 1 left!

0

76

Cub Cadet 732-0863

Spring, Detent
(Superseded to 932-0863)

$4.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 618-3031

Arm Assy, Shift

$

$

Not available

78

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

79

Cub Cadet 721-3029

Seal, Shift Shaft
(Superseded to 921-3029)

$9.49

$

Usually ships in 3-6 days

0

80

Cub Cadet 761-3019

Drum, Brake

$24.99

$

In Stock, only 1 left!

0

81

Cub Cadet 732-3077

Spring, Brake

$2.99

$

In Stock, only 1 left!

0

82

Cub Cadet 761-3020

Shoe, Brake
(Superseded to 961-3020)

$

$

Not available

83

Cub Cadet 732-0152

Spring, Compression

$4.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 703-2191

Arm, Brake

$

$

Not available

85

Cub Cadet 618-3060

Plate, Brake
(Superseded to 918-3060)

$

$

Not available

86

Cub Cadet 761-3028

Actuator, Brake Shoe

$

$

Not available

87

Cub Cadet 710-3262

Screw, Low Hd Cap, 3/8-16 x .75

$

$

Not available

88

Cub Cadet 611-3009

Axle Assy, RH, 15.6 Lg

$

$

Not available

89

Cub Cadet 619-3024

Housing, Axle - RH

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz tube

$70.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 715-0129

Pin, Spirol, 1/8 Dia x .812 Lg

$4.99

$

In Stock, only 1 left!

0

91

Cub Cadet 718-3036

Arm, Interlock Shift

$

$

Not available

92

Cub Cadet 710-0642

Screw, Hex Wash Hd Tapp, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

93

Cub Cadet 716-0171

Ring, Retainer
(Superseded to 916-0171)

$5.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 703-2190

Shim, Interlock Shaft Support, .030 Thk

$

$

Not available

95

Cub Cadet 703-2189

Shim, Interlock Shaft Support, .015 Thk

$

$

Not available

96

Cub Cadet 619-3038A

Housing, RH Differential

Note: Replaces 619-3038 by also ordering (2) 715-3045 Dowel Bushings.

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz Tube

$70.99

$

Usually ships in 3-6 days

0
