2150 (13A-242G100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Crankcase Parts Diagram

Garden Tractor

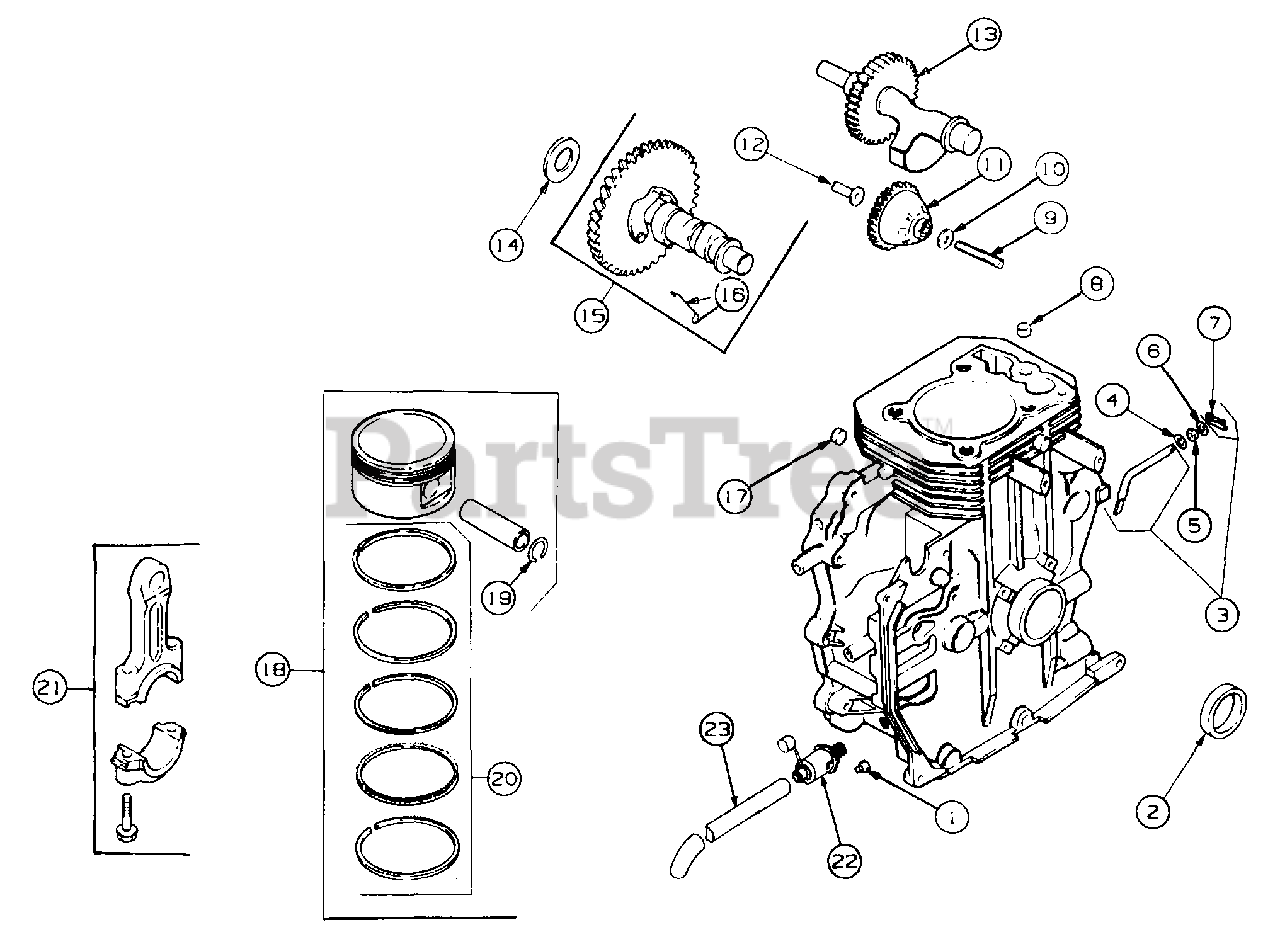

Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-X-75-10

Plug, Solid Sq. Head, 3/8 NPTF
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

2

Cub Cadet KH-12-032-03

Seal, Crankshaft
(Superseded to KH-12-032-03-S)

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-12-755-64

Kit, Gov Cross Shaft

Note: (Incl Ref #7)

$

$

Not available

4

Cub Cadet KH-M-631015

Washer, Governor Shaft
(Superseded to KH-M-631015-S)

$2.49

$

In Stock, Qty 7

0

5

Cub Cadet KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

6

Cub Cadet KH-X-25-102

Washer, Plain, 1/4
(Superseded to KH-X-25-102-S)

$2.49

$

In Stock, Qty 5

0

7

Cub Cadet KH-12-380-04

Pin, Governor Hitch

Note: (Engine Spec No 44508)

$

$

Not available

8

Cub Cadet KH-12-380-03

Dowel, Locating
(Superseded to KH-24-380-16-S)

Note: (Engine Spec No 44508)

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

10

Cub Cadet KH-M-631005

Washer, Governor Gear Thrust

$

$

Not available

11

Cub Cadet KH-12-043-05

Gear, Governor Assy

$

$

Not available

12

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

13

Cub Cadet KH-12-144-26

Shaft, Balance

$

$

Not available

14

Cub Cadet KH-12-422-07

Shim, Camshaft, .0280
(Superseded to KH-12-422-07-S)

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-08

Shim, Camshaft, .0300
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-09

Shim, Camshaft, .0320
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-10

Shim, Camshaft, .0340
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-11

Shim, Camshaft, .0360
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-12

Shim, Camshaft, .0380
(Superseded to KH-12-422-12-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-13

Shim, Camshaft. .0400
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-12-755-49

Camshaft Assy

Note: (Includes Ref #16)

$

$

Not available

16

Cub Cadet KH-12-089-18

Spring, Actuating
(Superseded to KH-12-089-37-S)

Note: (Engine Spec No 44508)

$2.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-12-874-07

Piston w/Ring Set, Std

$

$

Not available

Cub Cadet KH-12-874-11

Piston w/Ring Set, .08mm O.S.

$

$

Currently unavailable

Cub Cadet KH-12-874-08

Piston w/Ring Set, .25mm O.S.

$

$

Not available

Cub Cadet KH-12-874-09

Piston w/Ring Set, .50mm O.S.

$

$

Not available

19

Cub Cadet KH-12-018-02

Retainer, Piston Pin

$

$

Not available

20

Cub Cadet KH-12-108-07

Ring Set, Std.
(Superseded to KH-12-108-07-S)

$82.99

$

In Stock, only 1 left!

0

Cub Cadet KH-12-108-08

Ring Set, .25mm

$

$

Not available

Cub Cadet KH-12-108-09

Ring Set, .50mm

$

$

Not available

21

Cub Cadet KH-12-067-05

Rod, Connecting, Std

$

$

Not available

Cub Cadet KH-12-067-06

Rod, Connecting, .25mm

$

$

Not available

22

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 751-3142

Cap

$4.49

$

In Stock, Qty 14

0

23

Cub Cadet 751-3141-12

Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

Cub Cadet KH-12-755-82

Gasket Set
(Superseded to KH-12-755-93-S)

$89.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-44508

Engine Complete

$

$

Not available

Cub Cadet KH-12-522-39

Short Block

$

$

Not available
