2150 (136-242G100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Implement Lift Handle Parts Diagram

Garden Tractor

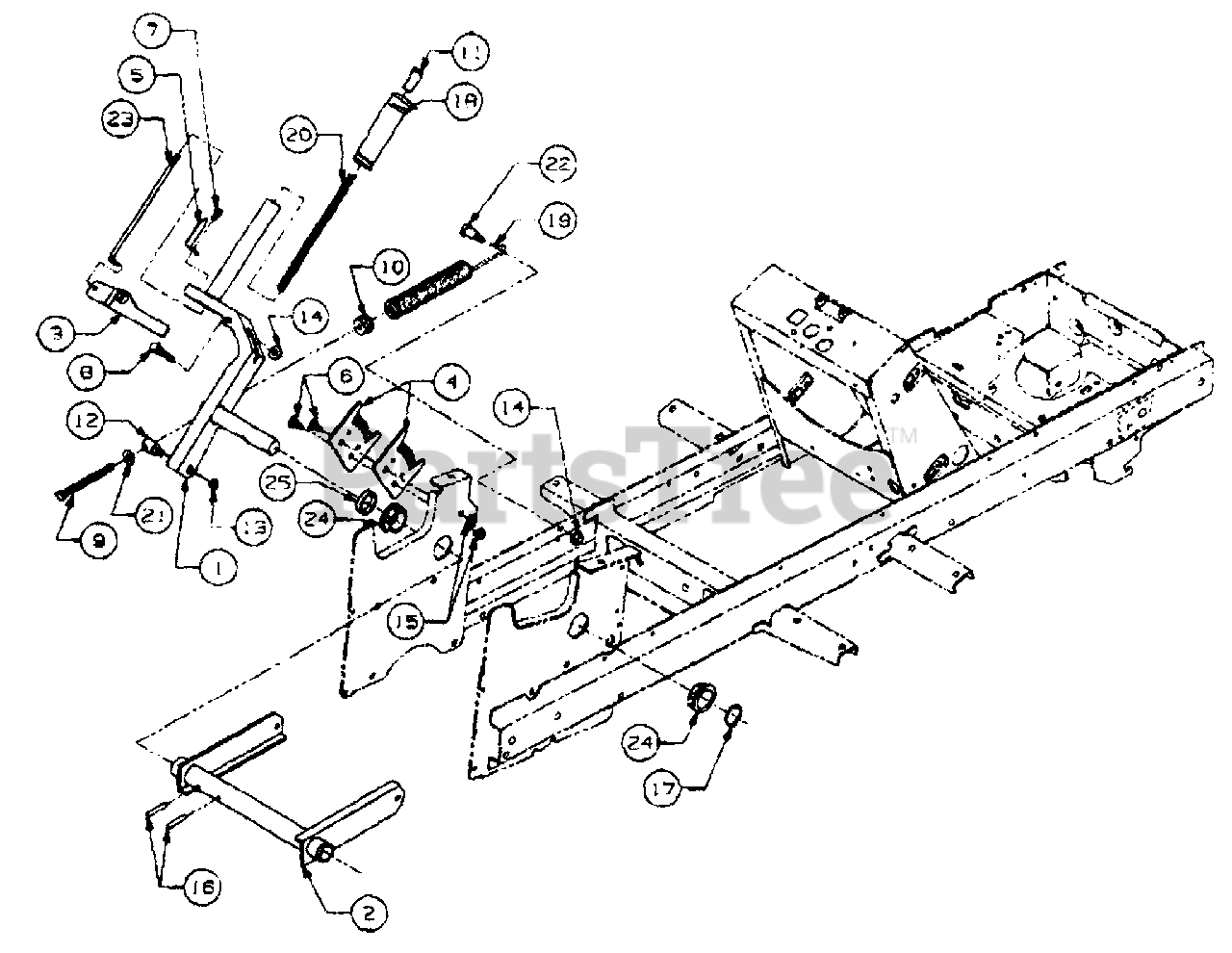

Implement Lift Handle Parts Diagram

  • Title

1

Cub Cadet 603-0057A

Handle Assy, Lift
(Superseded to 759-04048)

Variations

Cub Cadet 603-0057A-0498

Lift Control Handle Kit - OLD CUB YELLOW (0498)

$350.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0057A-0716

Lift Control Handle Kit - CUB YELLOW-99 (0716)

$350.99

$

Usually ships in 3-6 days

0

$350.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0059

Shaft Assy, Lift
(Superseded to 603-04140A-0637)

Variations

Cub Cadet 603-0059-0498

Lift Shaft Assembly - OLD CUB YELLOW (0498)

$149.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0059-0716

Lift Shaft Assembly - CUB YELLOW-99 (0716)

$149.99

$

Usually ships in 3-6 days

0

$149.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0136

Fork, Lift

$

$

Not available

4

Cub Cadet 703-2239

Bracket, Lift Index
(Superseded to 703-2239A-0637)

$12.99

$

In Stock, Qty 9

0

5

Cub Cadet 703-2558

Indicator, Lift Height

$

$

Not available

6

Cub Cadet 710-0451

Bolt Carriage, 5/16-18 x .75 Lg

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0599

Screw, Hex Wash Tapp, 1/4 x .50 Lg

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 x 2.0 Lg GR5

$4.49

$

In Stock, Qty 7

0

9

Cub Cadet 710-3279

Screw, Hex Cap, 3/8-16 x 4.25 Lg GR5

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-0635

Insert, Spring

$44.99

$

In Stock, only 1 left!

0

11

Cub Cadet 711-0642A

Button, Handle

$7.99

$

In Stock, Qty 12

0

12

Cub Cadet 711-3350

Ferrule, Adjustment

$

$

Not available

13

Cub Cadet 712-0262

Nut, Hex Center Lock, Jam 3/8-24

$4.49

$

In Stock, Qty 12

0

14

Cub Cadet 712-0431

Hut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3004A

Nut, Hex Flanged Top Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 715-0114A

Pin, Spiral Spring, 1/4 Dia x 1.50 Lg
(Superseded to 915-0114)

$9.49

$

In Stock, Qty 5

0

17

Cub Cadet 716-0116

Ring, Snap, 1.25 Dia Shaft

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-3158

Grip, Lift Handle

$17.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-3093

Spring, Extension

$61.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-3097

Spring, Compression

$14.99

$

In Stock, only 4 left!

0

21

Cub Cadet 738-0145

Washer, Flat, .385 x .87 x .06 Thk

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 747-3175

Bolt, Shoulder
(Superseded to 747-3175A)

$

$

Not available

23

Cub Cadet 747-3175

Rod, Index
(Superseded to 747-3175A)

$

$

Not available

24

Cub Cadet 748-3051

Bearing, Hex Flange, 1.25 ID
(Superseded to 948-3051A)

$26.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 750-3131

Spacer, 1.28 ID x 1.5 OD x .335 Lg

$

$

Not available
