215 SST (86268) - Snapper String Trimmer Handle Assembly Parts Diagram

String Trimmer

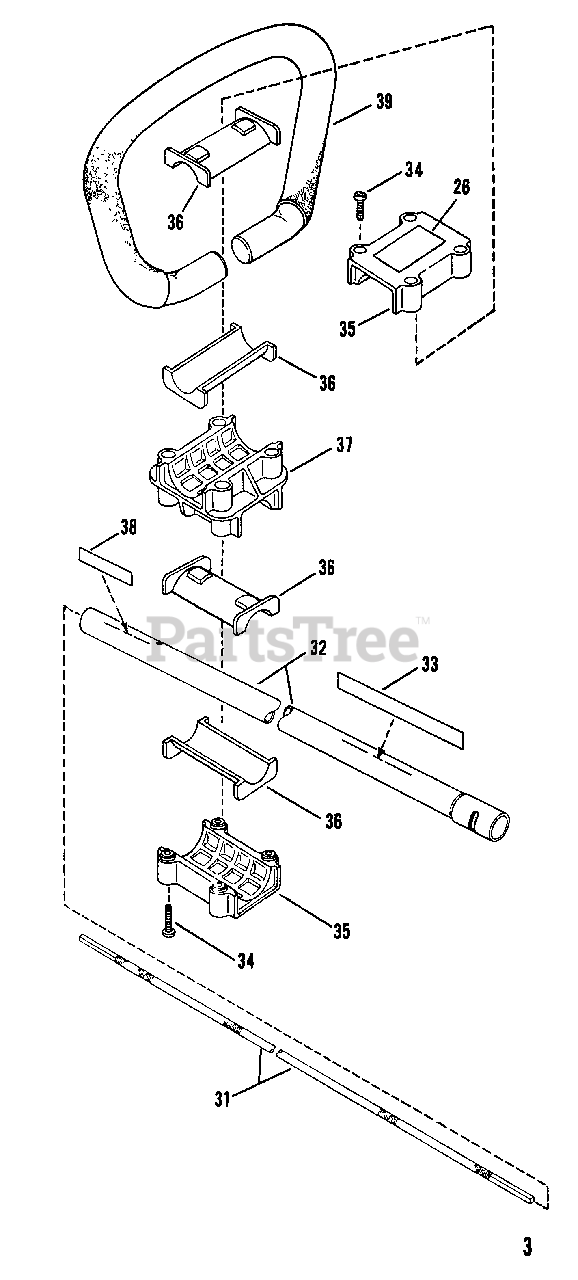

Handle Assembly Parts Diagram

  • Title

26

Snapper 7015644

Label, Replacement Part
(Superseded to 7015644YP)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 7015784

SHAFT, Main, Flex (54.81" x .245:, .062 Square Ends x 1")

$

$

Currently unavailable

32

Snapper 7057491

Assembly, Tubing

Note: (Includes items 33 & 38)

$

$

Not available

33

Snapper 18920

LABEL, Model 215SST

$

$

Currently unavailable

34

Snapper 7090902

SCREW, #10-16 x 3/4"

$

$

Not available

35

Snapper 7018909

HANDLE MOUNT, Cap

$

$

Currently unavailable

36

Snapper 7015739

ISO-MOUNT,

$

$

Currently unavailable

37

Snapper 7017001

HANDLE MOUNT, Center

$

$

Currently unavailable

38

Snapper 7015980

LABEL-WARNING (Eye Protection)

Note: Was 15659

$

$

Currently unavailable

39

Snapper 7051671

HANDLE, ASSEMBLY, Loop

$

$

Not available

?56

Snapper 7015907

SPRING

$

$

Currently unavailable

?57

Snapper 7015908

INDEXER

Note: (Includes item 59)

$

$

Not available
