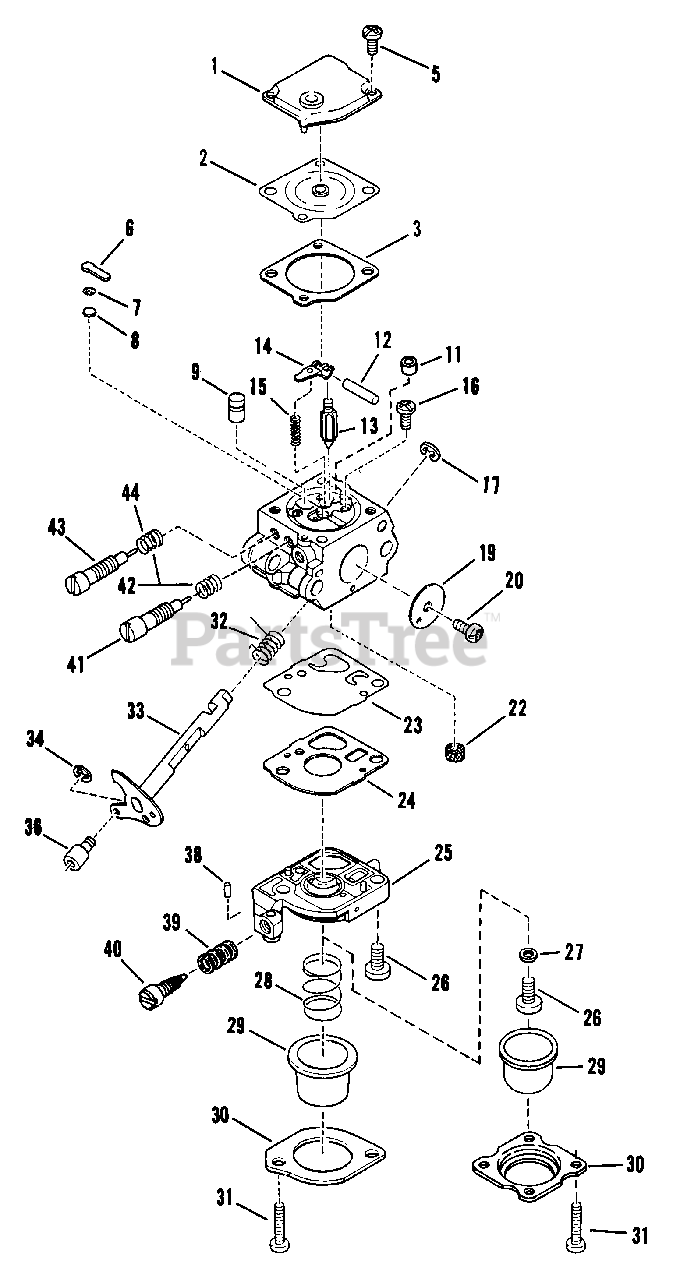

Carburetor Parts (WALBRO) Parts Diagram

  • Title

--

Snapper 42309

Carburetor, Complete

$

$

Currently unavailable

1

Snapper 7044588

COVER. Metering Chamber

$

$

Currently unavailable

2

Snapper 7044566

DIAPHRAGM. Metering

Note: Was 46103

$

$

Not available

3

Snapper 7042311

GASKET. Metering Chamber

$

$

Currently unavailable

4

DISC

$

$

Not available

5

Snapper 7046127

SCREW.Metering Cover

$

$

Currently unavailable

6

Snapper 7044566

PLUG. Welch/Metering Chamber

Note: Was 46120

$

$

Not available

7

Snapper 7044582

RING. Screen Retainer

Note: Was 44582

$

$

Currently unavailable

8

Snapper 7044566

SCREEN. Check Valve

Note: Was 44581

$

$

Not available

9

Snapper 42327

SEAT ASSY. Check Valve
(Superseded to 5042327)

$

$

Currently unavailable

10

SEAT ASSY. Check Valve

$

$

Not available

11

Snapper 42312

PLUG. Welch/Check Valve

$

$

Currently unavailable

12

Snapper 46107

Metering Lever

$

$

Currently unavailable

13

Snapper 7044566

VALVE. Inlet Needle

Note: Was 46110

$

$

Not available

14

Snapper 7044566

LEVER. Metering

Note: Was 46105

$

$

Not available

15

Snapper 7042238

SPRING. Metering Lever

$

$

Currently unavailable

16

Snapper 46106

SCREW. Metering Lever

$

$

Currently unavailable

17

Snapper 7042324

CLIP. Throttle Shaft

$

$

Currently unavailable

18

SCREW. Throttle Shaft Clip

$

$

Not available

19

Snapper 42325

VALVE. Throttle Plate
(Superseded to 5042325)

$

$

Currently unavailable

20

Snapper 42326

SCREW. Throttle Plate Valve

$

$

Currently unavailable

21

BULB. Primer Assy

$

$

Not available

22

Snapper 7044566

SCREEN. Fuel Inlet

Note: Was 46095

$

$

Not available

23

Snapper 7042316

DIAPHRAGM. Fuel Pump

$

$

Not available

24

Snapper 7042317

GASKET.Fuel Pump Cover

$

$

Currently unavailable

25

Snapper 7042314

COVER. Fuel Pump

$

$

Not available

26

Snapper 7042315

SCREW. Fuel Pump Cover

$

$

Currently unavailable

27

Snapper 7042329

GASKET.Pump Cover Screw

$

$

Not available

28

SPRING. Primer Bulb

$

$

Not available

29

Snapper 7042310

BULB. Primer

$

$

Not available

30

Snapper 7046108

RETAINER. Primer Bulb

$

$

Currently unavailable

31

Snapper 7046127

SCREW. Primer Bulb Retainer

$

$

Currently unavailable

32

Snapper 7046114

SPRING, Throttle Return

$

$

Currently unavailable

33

Snapper 7042622

SHAFT. Throttle
(Superseded to 7057717YP)

$

$

Not available

34

Snapper 7042323

CLIP, Throttle Post

$

$

Currently unavailable

35

WASHER. Throttle Post

$

$

Not available

36

Snapper 7044593

POST. Throttle Swivel

$

$

Currently unavailable

37

SCREW. Throttle Swivel Post

$

$

Not available

38

INSERT. Idle Adjust Friction

$

$

Not available

39

Snapper 7046112

SPRING. Idle Adjusting Screw

$

$

Currently unavailable

40

Snapper 7042318

SCREW. Idle Adjusting

$

$

Currently unavailable

41

Snapper 7042319

SCREW. Idle Mix Needle
(Superseded to 7042319YP)

$4.49

$

Usually ships in 2-12 days

0

42

Snapper 46100

SPRING. Idle Mix Screw

$

$

Currently unavailable

43

Snapper 7042320

SCREW. High Speed Mix

$

$

Currently unavailable

44

Snapper 7042321

SPRING. High Speed Mix Screw

$

$

Currently unavailable

45

GASKET. Govenor

$

$

Not available

46

GOVENOR. Check Valve

$

$

Not available

47

ASSY. Air Purge Body

$

$

Not available

48

NUT. Primer Retainer

$

$

Not available

49

WASHER. Primer Retainer

$

$

Not available

--

PUMP COVER KIT

$

$

Not available

--

Snapper 7042305

MAJOR REPAIR KIT

$

$

Not available

--

Snapper 7042306

MINOR REPAIR KIT

$

$

Currently unavailable

--

Snapper 7042308

GASKET AND DIAPHRAGM KIT

$

$

Currently unavailable
