215-406-000 - MTD Tiller (1995) Lower Assembly Parts Diagram

Tiller

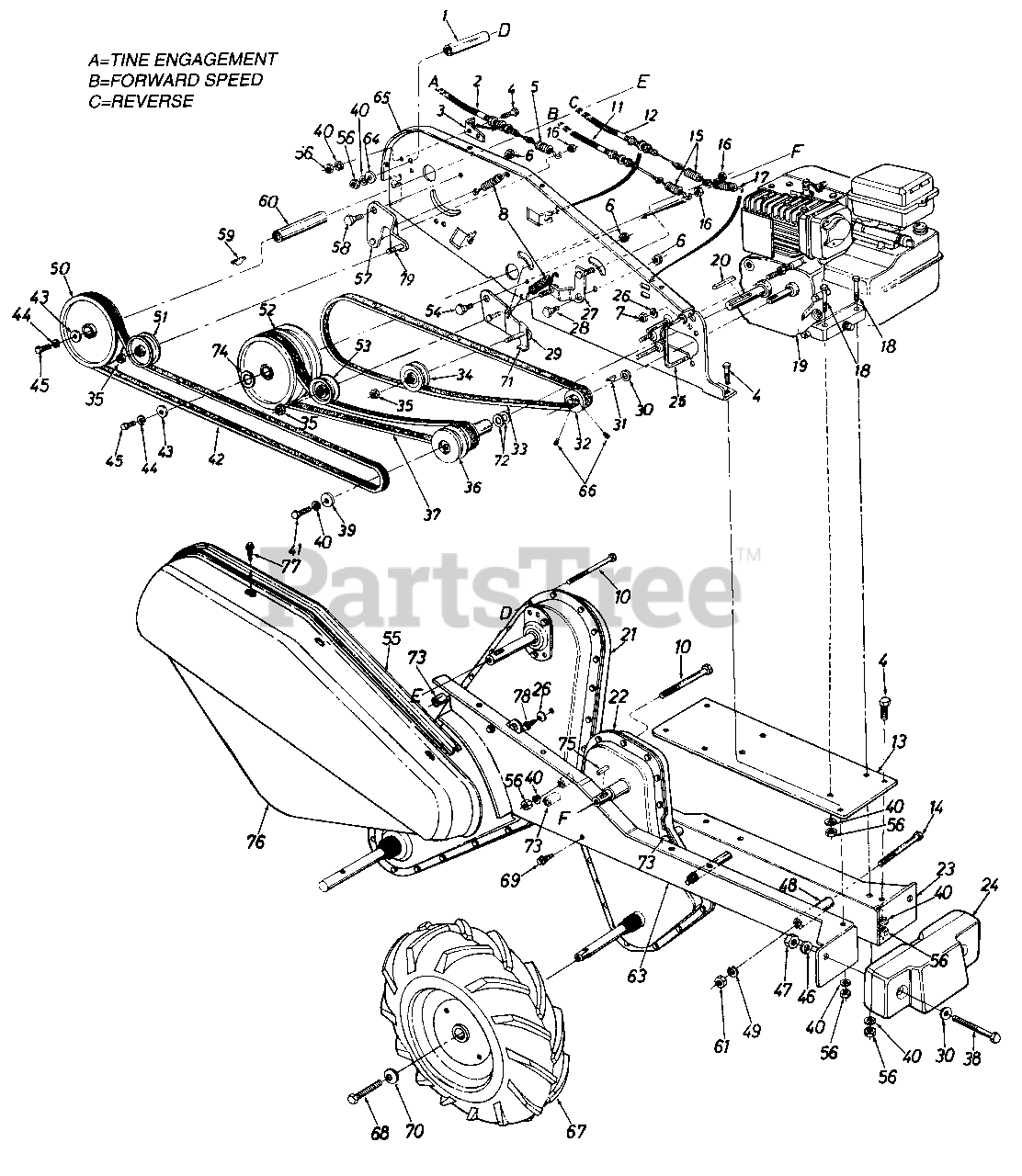

Lower Assembly Parts Diagram

  • Title

1

MTD 750-0219

Spacer .375" I.D. x .5" O.D. x 2" Lg.

$

$

Currently unavailable

2

MTD 746-0535

Clutch Control Cable (Tines)
(Superseded to 946-0535)

$69.99

$

In Stock, Qty 10

0

3

MTD 15093C

Clutch Cable Bracket

$

$

Not available

4

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

MTD 732-0387

Extension Spring .50" O.D. x 2.5" Lg.

$

$

Not available

6

MTD 712-0266

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

8

MTD 732-0445

Extension Spring .50" O.D. x 1.55" Lg.

$8.99

$

In Stock, only 2 left!

0

10

MTD 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

11

MTD 746-0496

Clutch Control Cable 42" Lg. (Forward)
(Superseded to 946-0496)

$81.99

$

In Stock, only 2 left!

0

12

MTD 746-0571

Clutch Control Cable 42" Lg. (Reverse)
(Superseded to 946-0571)

$69.99

$

In Stock, Qty 5

0

13

MTD 14973

Engine Mounting Plate

Variations

MTD 14973-0637

No Longer Available PLATE-MTG- - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 710-0830

Hex Bolt 3/8-24 x 3" Lg.

$

$

Not available

15

Springs

Note: Part of Ref. No. 11 and 12

$

$

Not available

16

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

17

MTD 732-0486

Extension Spring .41" O.D. x 2.05" Lg.

$

$

Not available

18

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

19

Engine

$

$

Not available

20

MTD 714-0105

Sq. Key 3/16 x 1.00" Lg.
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

21

MTD 784-0106

Chain Case Comp. - Tines

$

$

Not available

22

MTD 686-0069

Chain Case Comp. - Wheels

$

$

Currently unavailable

23

MTD 14975

Frame Rail - L.H.

Variations

MTD 14975-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 723-0340

Counterweight 35#

$

$

Not available

25

MTD 747-0507

Belt Keeper

$

$

Currently unavailable

26

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

27

MTD 784-0131

Idler Brkt. Ass'y. (Wheel Reverse)

Variations

MTD 784-0131-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 738-0147

Shld. Bolt .500" Dia. x .170

$

$

Not available

29

MTD 14969

Idler Brkt. Ass'y. (Wheel Forward)

$

$

Not available

30

MTD 736-0326

Fl-Wash. .51" I.D. x 1.0"

$4.49

$

In Stock, only 4 left!

0

31

MTD 714-0131

#5 Hi-Pro-Key 1/8" x 5/8" Dia.

$

$

Not available

32

MTD 756-0386A

1/2" V-Pulley 2.25" O.D. x .503" I.D.

$

$

Not available

33

MTD 754-0109

"V"-Belt
(Superseded to 954-0109)

$42.99

$

In Stock, Qty 6

0

34

MTD 756-0166

"V"-Belt Idler 2.62" O.D.
(Superseded to 756-1035A)

$34.99

$

In Stock, only 3 left!

0

35

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

36

MTD 756-0465

1/2" "V"-Pulley Ass'y.

$

$

Not available

37

MTD 754-0190

"V"-Belt
(Superseded to 954-0190)

$32.99

$

In Stock, Qty 5

0

38

MTD 710-0786

Hex Bolt 1/2-13 x 4" Lg.

$16.99

$

Usually ships in 3-6 days

0

39

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125"

$4.99

$

In Stock, Qty 20+

0

40

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

MTD 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

42

MTD 754-0195A

"V"-Belt
(Superseded to 954-0195A)

$54.99

$

In Stock, only 4 left!

0

43

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

44

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

45

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

46

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

47

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

48

MTD 750-0579

Spacer .38" I.D. x .62" O.D. x 2.18" Lg.

$

$

Currently unavailable

49

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

50

MTD 756-0389A

Fl-Pulley w/Flanges 6" O.D.

$

$

Not available

51

MTD 756-0405

Fl-Idler w/Flanges 3.75" O.D.

$71.99

$

Usually ships in 3-6 days

0

52

MTD 756-0464

Double Fl-Pulley 5/8" I.D.

$

$

Not available

53

MTD 756-0313

Fl-Idler w/Flanges 2.12" O.D.

$26.99

$

In Stock, Qty 5

0

54

MTD 738-0147

Shld. Bolt .500" Dia. x .170" Lg.

$

$

Not available

55

MTD 784-0140

Flange Extension

$

$

Not available

56

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

57

MTD 784-0129

Idler Brkt. Ass'y. - Tines

Variations

MTD 784-0129-0637

No Longer Available BRKT ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

58

MTD 738-0183

Shld. Bolt. .500" Dia. x .215" Lg.
(Superseded to 938-0183)

$

$

Not available

59

MTD 714-0388

#61 Hi-Pro-Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

60

MTD 750-0551

Spacer .647" I.D. x 2.75" Lg.

$

$

Not available

61

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

63

MTD 14974

Frame Rail - R.H.

Variations

MTD 14974-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

64

MTD 736-0185

Fl-Wash. .406" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

65

MTD 14991

Side Plate Ass'y.

$

$

Not available

66

MTD 710-0938

Set Scr. 1/4-28 x .25" Lg.

$

$

Not available

67

MTD 734-1378

R.H. Wheel Ass'y. Comp. 13 x 5

$

$

Currently unavailable

MTD 734-1377

L.H. Wheel Ass'y. Comp. 13 x 5

Note: Not Shown

$

$

Not available

MTD 734-1154

Tire Only
(Superseded to 734-1154-0901)

Variations

MTD 734-1154-0901

TIRE-13X5.0-6 - Carlisle (0901)

$

$

Not available

MTD 734-1154-0902

TIRE-13X5.0-6 - Dico (0902)

$

$

Not available

$

$

MTD 734-1376

Rim Only

$

$

Currently unavailable

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

68

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

69

MTD 710-0600

Hex Self-Tap Scr. 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

70

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

71

MTD 15399

Belt Keeper Brkt.

$

$

Not available

72

MTD 736-0351

Fl-Wash. .76" I.D. x 1.5"

$4.49

$

In Stock, Qty 20+

0

73

MTD 750-0470

Spacer .326" I.D. x .47" O.D. x .96" Lg.

$6.99

$

Usually ships in 3-6 days

0

74

MTD 736-0366

Fl-Wash. 5/8" I.D. x 1" O.E.

$4.49

$

In Stock, Qty 20+

0

75

MTD 714-0122

Sq. Key 3/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

76

MTD 14980A

Belt Cover

Variations

MTD 14980A-0498

No Longer Available COVER-BELT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14980A-0637

No Longer Available COVER-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 14980A-0638

No Longer Available COVER-BELT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14980A-0662

No Longer Available COVER-BELT - OYSTER GRAY (0662)

$

$

Not available

MTD 14980A-0665

No Longer Available COVER-BELT - YARDMAN GREEN (0665)

$

$

Not available

$

$

77

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 710-0653

Hex Wash. S-Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 8

0

79

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0
