215-386-132 - Lawnflite Tiller (1985) (Allied Hardware) Parts02 Parts Diagram

Tiller

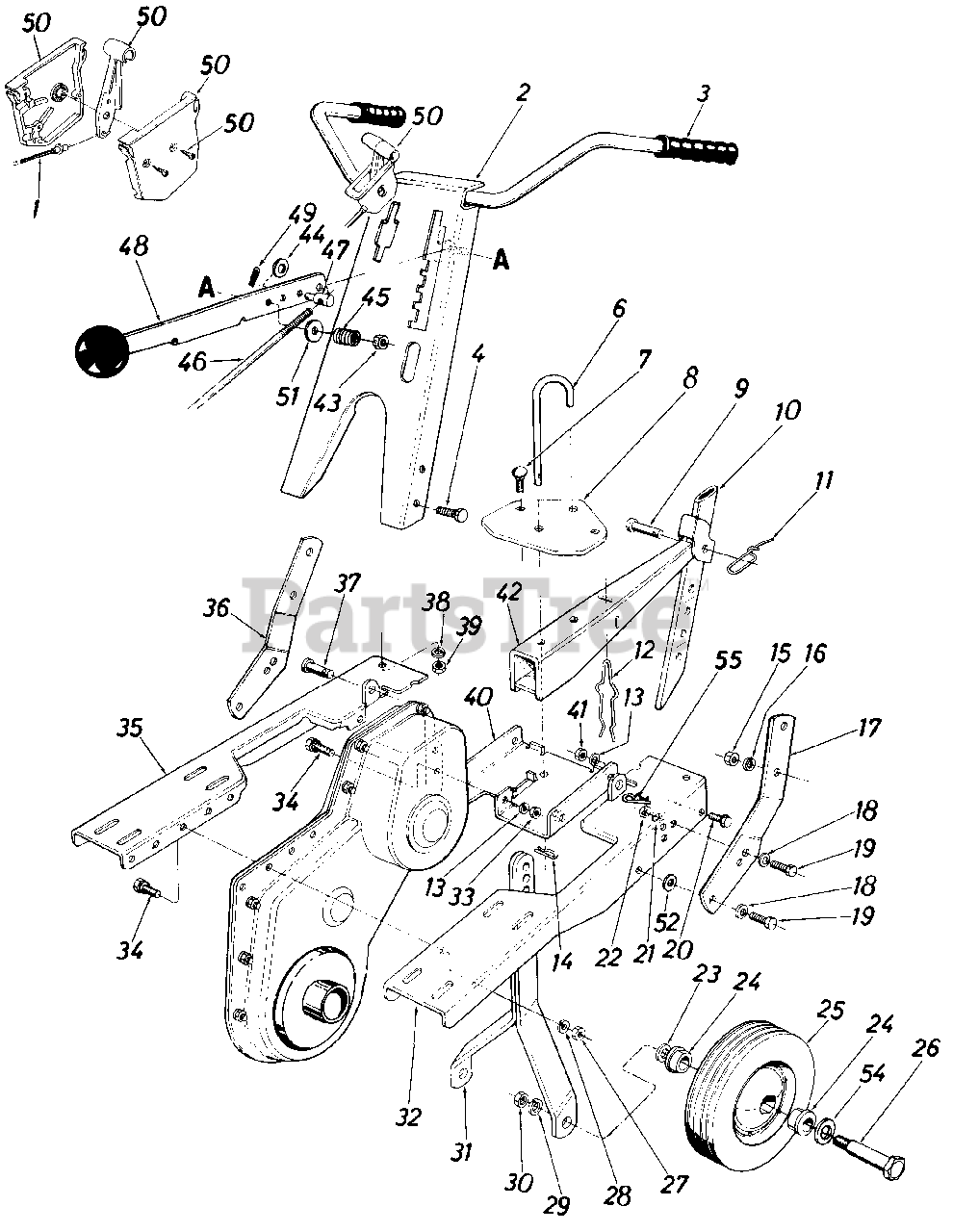

Parts02 Parts Diagram

  • Title

1

MTD 746-0242

Throttle Control Wire

$

$

Not available

2

MTD 717-0110

Handle Ass'y.

$

$

Currently unavailable

3

MTD 720-0204

G ri p

$13.99

$

Usually ships in 3-6 days

0

4

MTD 710-0253

Hex Scr. 3/8-16 x 1.00 Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

6

MTD 04602

"U"-Clevis Pin .500" Dia.

$

$

Not available

7

MTD 710-0451

Carr. Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

8

MTD 04586

"U"-Channel Plate

$

$

Currently unavailable

9

MTD 711-0231

Clevis Pin 1/2" Dia.
(Superseded to 911-0231)

$6.49

$

In Stock, only 3 left!

0

10

MTD 04668

Depth Bar

$

$

Not available

11

MTD 732-0194

Spring Pin

$4.99

$

In Stock, only 2 left!

0

12

MTD 732-0290

Depth Bar Spring

$

$

Not available

13

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 714-0145

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

16

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

17

MTD 06805

Handle Brkt.-L.H.

$

$

Currently unavailable

18

MTD 736-0105

Bell. Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg .
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

23

MTD 736-0253

Belleville Wash. Hdn.

$3.99

$

In Stock, Qty 20+

0

24

MTD 741-0116

Flange Brg. w/Flats .631 I.D.

$

$

Not available

25

MTD 734-0584

Wheel Assembly 10.0 x 1.75
(Superseded to 753-04874)

$58.99

$

In Stock, only 1 left!

0

26

MTD 738-0318

Shld. Scr. .625" Dia. x 2.75" Lg. (1/2-20 Thd.)

$

$

Not available

27

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

30

MTD 712-0200

Hex Elastic Insert Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

31

MTD 06813

Wheel Brkt. Ass'y.

$

$

Not available

32

MTD 06792

Engine"U"-Channel Ass'y.-L.H.

$

$

Currently unavailable

33

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0322

Hex Sems Scr. 5/16-18 x 1.00" Lg.

$

$

Not available

35

MTD 06794

Engine "U"-Channel Ass'y.-R.H.

$

$

Not available

36

MTD 06806

Handle Brkt.-R.H.

$

$

Not available

37

MTD 711-0599

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

40

MTD 06816

"U"-Channel Brkt. Ass'y.

$

$

Currently unavailable

41

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

42

MTD 04589

Tailpiece Ass'y.

$

$

Not available

43

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

44

MTD 736-0264

Fl-Wash. .344 I.D. x .87 O.D.

$6.99

$

In Stock, only 1 left!

0

45

MTD 732-0108

Spring

$

$

Not available

46

MTD 747-0271

Control Rod

$

$

Currently unavailable

47

MTD 711-0392

Ferrule

$13.99

$

Usually ships in 3-6 days

0

48

MTD 04810

Shift LeverAssembly w/Knob

$

$

Currently unavailable

49

MTD 714-0104

Inter. Cotter Pin 1/2" Dia.

$4.49

$

In Stock, Qty 20+

0

50

MTD 831-0692

Throttle Control Box Complete
(Superseded to 831-0796A)

$21.99

$

In Stock, only 2 left!

0

51

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0101

Flat Washer
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

54

MTD 736-0187

Flat Washer (Hardened)

$4.49

$

In Stock, Qty 20+

0

55

MTD 714-0149

Cotter Pin
(Superseded to 914-0149B)

$

$

Not available
