215-035-000 - MTD Tiller (1995) General Assembly Parts Diagram

Tiller

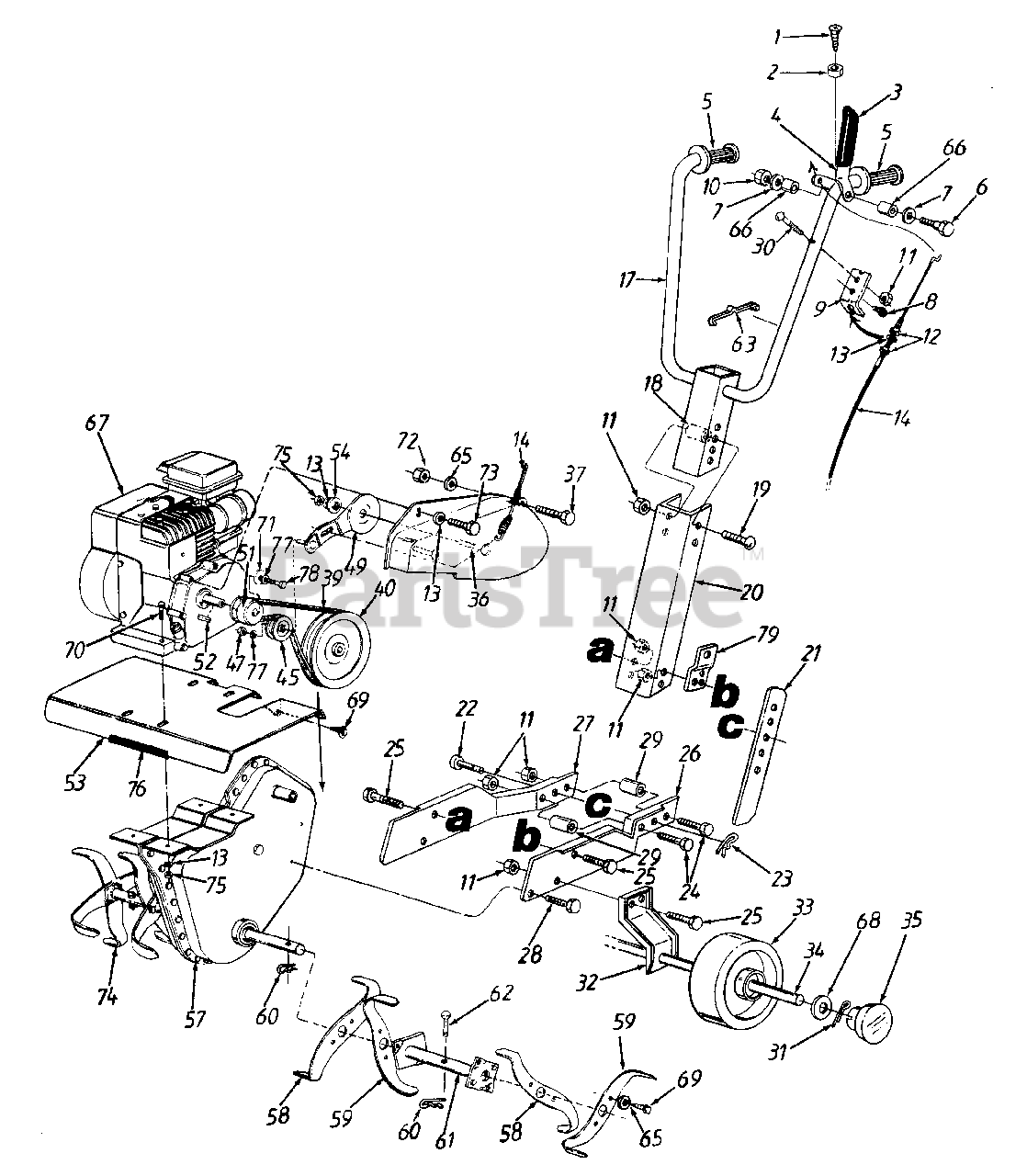

General Assembly Parts Diagram

  • Title

1

MTD 710-1167

Tap Scr. #10-16 x 1/2" Lg.

$

$

Not available

2

MTD 720-0263

Rubber Bumper

$

$

Not available

3

MTD 731-0473

Vinyl Grip

$4.49

$

Usually ships in 3-6 days

0

4

MTD 686-0002

Clutch Lever Ass'y.
(Superseded to 686-0002-0637)

Variations

MTD 686-0002-0637

LEVER ASSY-CLUTCH - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

5

MTD 720-0233

Handle Grip
(Superseded to 920-0233)

$

$

Not available

6

MTD 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$7.49

$

Usually ships in 3-6 days

0

7

MTD 736-3090

Fl-Wash. 1/4" I.D.

$6.99

$

In Stock, Qty 11

0

8

MTD 710-1201

Hex Tap Scr. 1/4-20 x 1/2" Lg.

$

$

Not available

9

MTD 15093C

Cable Bracket

$

$

Not available

10

MTD 712-0324

Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

11

MTD 712-0429

Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

13

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 746-0509

Clutch Control Cable
(Superseded to 946-0926)

$42.99

$

In Stock, only 2 left!

0

17

MTD 649-0153

Handle Ass'y.

Variations

MTD 649-0153-0637

No Longer Available UPPER HAND - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 750-0848

Spacer

$

$

Not available

19

MTD 710-0572

Carr. Bolt 5/16-18 x 2-1/2" Lg.

$4.49

$

In Stock, Qty 20+

0

20

MTD 786-0013

Handle Channel - Frame

Variations

MTD 786-0013-0637

No Longer Available FRAME-CHAN - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 04764

Depth Stake

Variations

MTD 04764-0637

Depth Stake - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

23

MTD 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0

24

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-0759

Hex Bolt 5/16-18 x 5/8" Lg.

$6.99

$

Usually ships in 3-6 days

0

26

MTD 786-0011

L.H. Frame Half

Variations

MTD 786-0011-0637

L.H. Frame Half - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 786-0010

R.H. Frame Half

Variations

MTD 786-0010-0637

R.H. Frame Half - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 710-0607

Hex Tap. Scr. 5/16-18 x 1/2" Lg.

$6.99

$

In Stock, Qty 11

0

29

MTD 750-0845

Spacer
(Superseded to 750-0808)

$

$

Not available

30

MTD 710-1090

Hex Bolt 5/16-18 x 1-1/4" Lg.

$3.99

$

Usually ships in 3-6 days

0

31

MTD 714-3017

Cotter Pin
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

32

MTD 786-0012

Wheel Bracket
(Superseded to 786-0012-0637)

Variations

MTD 786-0012-0637

Wheel Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 634-0013

Wheel - 6"

$

$

Not available

34

MTD 738-0855

Axle - Wheel

$

$

Not available

35

MTD 720-0258

Hub Cap

$

$

Not available

36

MTD 686-0021

Belt Cover

Variations

MTD 686-0021-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 686-0021-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

37

MTD 710-0258

Hex Bolt 1/4-20 x 5/8" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

39

MTD 754-0216

V-Belt
(Superseded to 954-0216)

$30.99

$

In Stock, only 1 left!

0

40

MTD 756-0287

Pulley - Chain Case

$

$

Not available

45

MTD 756-0199

Flat Idler Pulley

$25.99

$

In Stock, only 2 left!

0

47

MTD 712-0116

Hex Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

49

MTD 784-0016

Idler Arm Ass'y.

$

$

Not available

51

MTD 756-0286

Engine Pulley

$

$

Not available

52

MTD 714-0122

Square Key 3/16" x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

53

MTD 04765

Tine Shield

Variations

MTD 04765-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04765-0637

No Longer Available SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

MTD 04765-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

54

MTD 736-0289

Washer - Bushing
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

57

MTD 686-0022

Chain Case Ass'y. Comp.

$

$

Not available

58

MTD 04922

R.H. Tine Blade

Variations

MTD 04922-0637

Tine Blade R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 04923

L.H. Tine Blade
(Superseded to 04923-0637)

Variations

MTD 04923-0637

Tine, LH Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

60

MTD 714-0149B

Hairpin Cotter

$4.49

$

In Stock, Qty 18

0

61

MTD 04918

Adapter Ass'y. - Tine
(Superseded to 04918-0637)

Variations

MTD 04918-0637

ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$

62

MTD 711-0702

Clevis Pin

$

$

Not available

63

MTD 726-0306

Cable Tie - Plastic

$

$

Not available

65

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

66

MTD 750-0846

Spacer

$

$

Not available

67

Engine

$

$

Not available

68

MTD 736-0185

Fl-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

69

MTD 710-0599

Tap Scr. 1/4-20 x 1/2" Lg.

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-0442

Hex Bolt 5/16-18 x 1-1/2" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

71

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D.

$4.49

$

In Stock, only 2 left!

0

72

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

73

MTD 710-0107

Hex Bolt 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

74

MTD 04921

Tine Blade Ass'y. Comp.

Variations

MTD 04921-0637

Tine Ass'y. Comp. - POWDER BLACK (0637)

$

$

Not available

$

$

75

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

76

MTD 731-0511-12

Trim Strip

$22.99

$

Usually ships in 3-6 days

0

77

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

78

MTD 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

79

MTD 786-0046

Belt Cover Bracket

Variations

MTD 786-0046-0637

Belt Cover Bracket - POWDER BLACK (0637)

$

$

Not available

$

$
