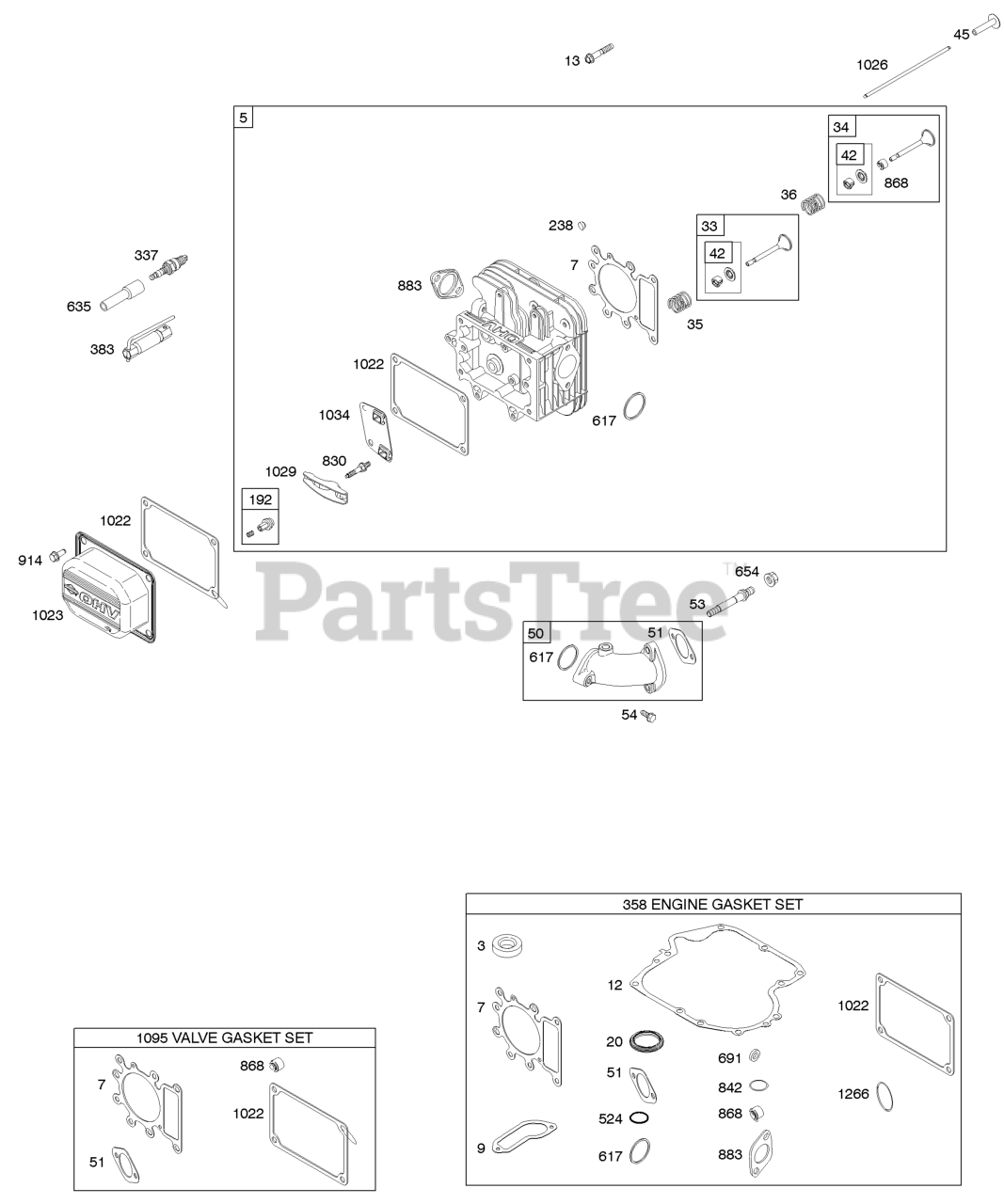

214907-0272-E1 - Briggs & Stratton Vertical Engine Head, Kit/Gasket Sets - Engine, Kit/Gasket Sets - Valve Parts Diagram

Vertical Engine

Head, Kit/Gasket Sets - Engine, Kit/Gasket Sets - Valve Parts Diagram

  • Title

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 697396

Head-Cylinder
(Superseded to 796183)

$302.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 273280S

GASKET, Cylinder Head

$10.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 697109

Gasket-Breather

$7.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 697110

GASKET, Crankcase

Note: (.015" Thick)(Standard)

$7.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 690360

SCREW
(Superseded to 84001963)

Note: (Cylinder Head)

$3.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

33

Briggs & Stratton 695760

Valve-Exhaust
(Superseded to 792868)

$35.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 695761

Valve-Intake
(Superseded to 791935)

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691279

SPRING, Valve

Note: (Intake)

$5.99

$

In Stock, Qty 10

0

36

Briggs & Stratton 691279

SPRING, Valve

Note: (Exhaust)

$5.99

$

In Stock, Qty 10

0

42

Briggs & Stratton 499586

KEEPER, Valve

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

TAPPET, Valve

$9.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 697361

Manifold-Intake
(Superseded to 592845)

$61.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 690227

Stud

Note: (Carburetor)

$7.99

$

In Stock, Qty 6

0

54

Briggs & Stratton 691148

SCREW

Note: (Intake Manifold)

$3.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 691986

ADJUSTER, Rocker Arm

$11.99

$

In Stock, Qty 20+

0

238

Briggs & Stratton 691843

CAP, Valve

$8.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 491055S

PLUG, Spark

$4.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 697151

Gasket Set-Engine
(Superseded to 796181)

$94.99

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$6.49

$

In Stock, only 4 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 19

0

635

Briggs & Stratton 691909

BOOT, Spark Plug

$4.99

$

In Stock, Qty 6

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

691

Briggs & Stratton 692407

SEAL, Governor Shaft

$7.99

$

In Stock, Qty 8

0

830

Briggs & Stratton 691095

STUD, Rocker Arm

$7.99

$

In Stock, Qty 20+

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

914

Briggs & Stratton 691108

SCREW

Note: (Rocker Cover)

$3.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475S

GASKET, Rocker Cover

$6.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 692492

Cover-Rocker
(Superseded to 797421)

$35.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 697394

ROD, Push

Note: (Intake)

$14.99

$

In Stock, Qty 18

0

1026

Briggs & Stratton 697395

Rod-Push
(Superseded to 794573)

Note: (Exhaust)

$14.99

$

In Stock, Qty 11

0

1029

Briggs & Stratton 691751

ARM, Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 690822

GUIDE, Push Rod

$9.49

$

In Stock, only 2 left!

0

1095

Briggs & Stratton 691581

Gasket Set-Valve
(Superseded to 796189)

$64.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0
