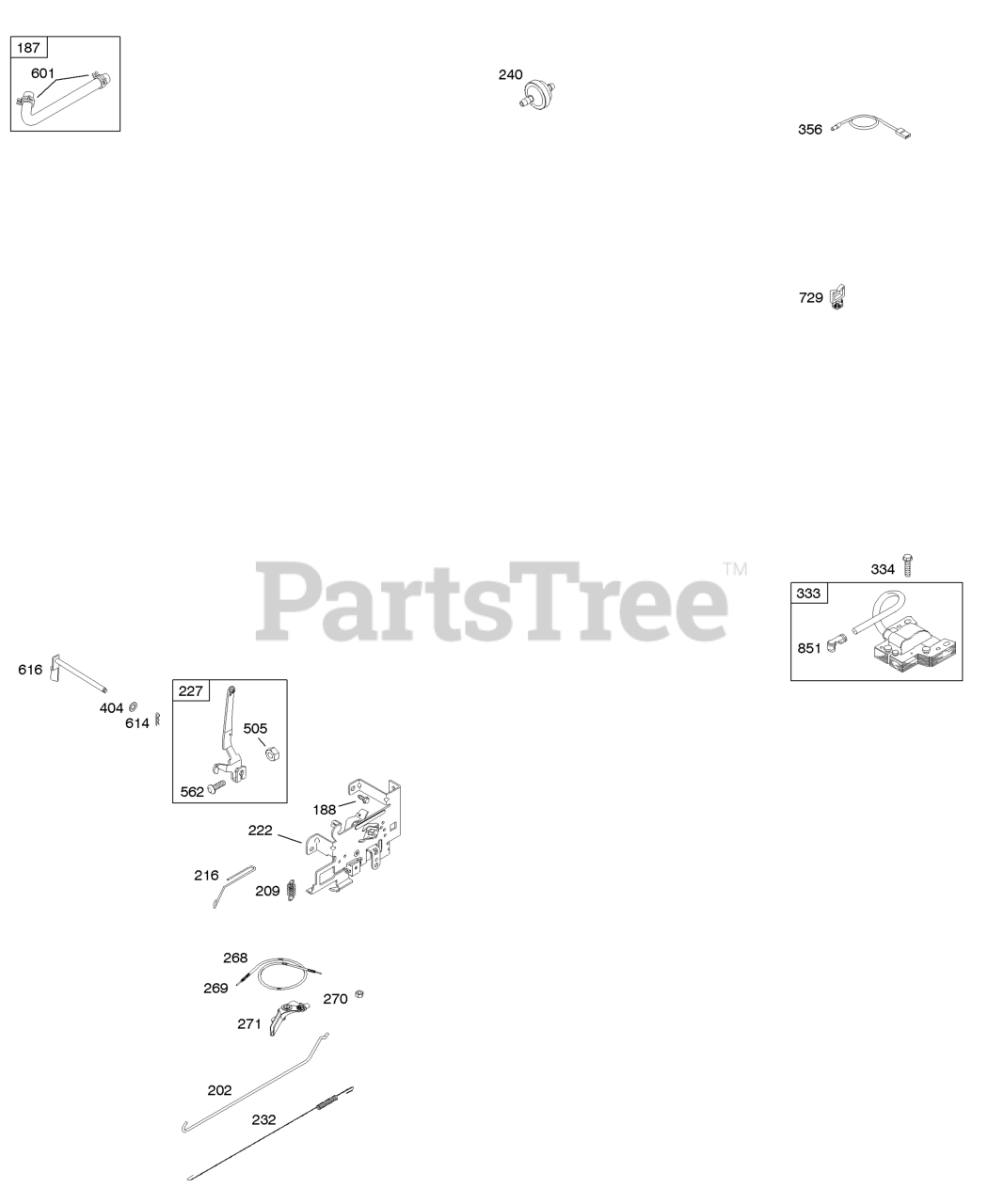

214907-0272-E1 - Briggs & Stratton Vertical Engine Controls, Ignition Parts Diagram

Vertical Engine

Controls, Ignition Parts Diagram

  • Title

187

Briggs & Stratton 699331

Line-Fuel
(Superseded to 791805)

Note: (Formed)(Cut To Required Length)

$24.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 8

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 13

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

Note: (Red)

$4.99

$

In Stock, Qty 13

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

In Stock, Qty 19

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 298090S

Filter-Fuel

Note: (Red, 150 Microns)

$

$

Not available

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 697397

Wire-Stop

Note: (1 Wire, 20" Long)(Snap Connect Insulated Female Blade Terminal, AndSnap Connect Insulated Pin Socket)

$12.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

Note: (Zinc Plate)(Spring Wire)

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

729

Briggs & Stratton 691335

Clip-Wire

Note: (Wire Retainer)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0
