2149 - Jonsered Chainsaw (2001-09) FUEL TANK Parts Diagram

Chainsaw

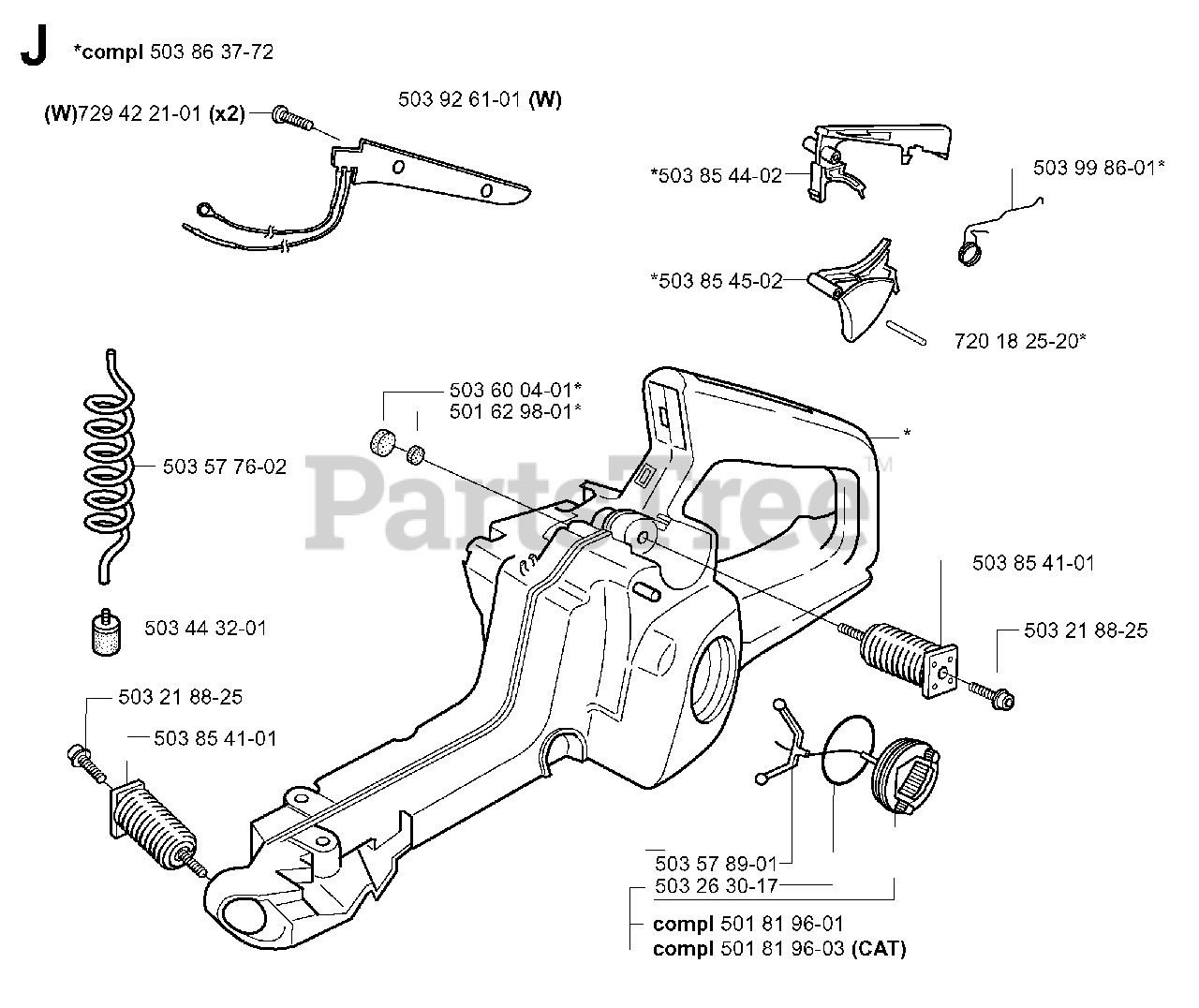

FUEL TANK Parts Diagram

  • Title
5038637-72

Jonsered 503863772

TANK UNIT
(Superseded to 503863704)

$

$

Not available

7294221-01

Jonsered 729422101

SCREW
(Superseded to 503213801)

$

$

Not available

5035776-02

Jonsered 503577602

HOSE
(Superseded to 544325002)

$5.99

$

Usually ships in 3-10 days

0

5034432-01

Jonsered 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

5032188-25

Jonsered 503218825

%SCREW
(Superseded to 503218876)

$6.49

$

In Stock, Qty 20+

0

5038541-01

Jonsered 503854101

VIBRATION ABSORBER

$24.99

$

In Stock, Qty 9

0

5018196-03

Jonsered 501819603

FUEL CAP/GREEN
(Superseded to 537215203)

$8.07

$

Usually ships in 3-10 days

0

5018196-01

Jonsered 501819601

FUEL CAP
(Superseded to 501819602)

$11.99

$

In Stock, Qty 12

0

5032630-17

$8.99

$

In Stock, Qty 19

0

5035789-01

$9.99

$

In Stock, Qty 15

0

5016298-01

Jonsered 501629801

VALVE PLUG

$7.49

$

In Stock, Qty 7

0

5036004-01

Jonsered 503600401

FILTER PLUG

$7.49

$

In Stock, only 1 left!

0

5039261-01

Jonsered 503926101

PLATE (G)

$43.84

$

Usually ships in 3-10 days

0

5038544-02

Jonsered 503854402

THROTTLE LOCK

$10.99

$

In Stock, only 1 left!

0

5038545-02

Jonsered 503854502

THROTTLE TRIGGER

$12.99

$

In Stock, only 2 left!

0

5032188-25

Jonsered 503218825

%SCREW
(Superseded to 503218876)

$6.49

$

In Stock, Qty 20+

0

5038541-01

Jonsered 503854101

VIBRATION ABSORBER

$24.99

$

In Stock, Qty 9

0

7201825-20

$2.99

$

In Stock, Qty 18

0

5039986-01

$9.99

$

Usually ships in 3-10 days

0
