21485x6A - Murray Ultra 21" Walk-Behind Mower (2000) Handle Assembly Parts Diagram

Ultra 21" Walk-Behind Mower

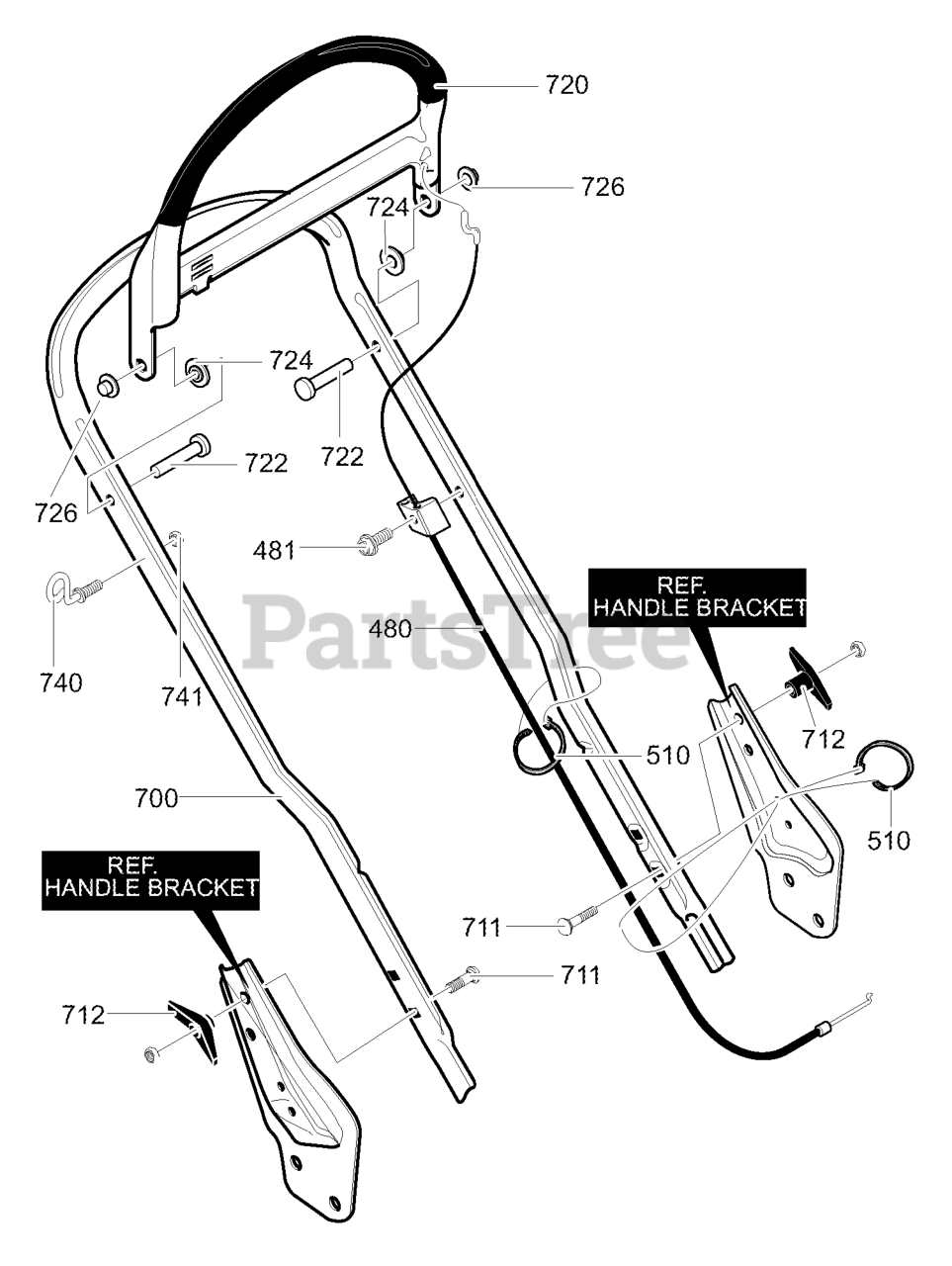

Handle Assembly Parts Diagram

  • Title

--

Murray F-000476M

OWNER'S MANUAL

$

$

Currently unavailable

480

Murray 672326MA

CABLE, STOP

$39.99

$

In Stock, only 1 left!

0

481

Murray 710269

SCREW, 10-16X.75

$

$

Not available

510

Murray 712267

CABLE TIE

$3.99

$

Usually ships in 2-12 days

0

700

Murray 672285-846

HANDLE

$

$

Currently unavailable

711

Murray 710175

CARR. BOLT, 5/16-18X2.00

$5.99

$

Usually ships in 2-12 days

0

712

Murray 671294MA

WING KNOB
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

720

Murray 1101123MA

STOP LEVER

$53.99

$

Usually ships in 2-12 days

0

722

Murray 712105MA

CLEVIS PIN

$

$

Not available

724

Murray 672734MA

SPACER, FLANGE

$4.49

$

Usually ships in 2-12 days

0

726

Murray 710286

CAP, RETAINER W/COVER

$29.99

$

Usually ships in 2-12 days

0

740

Murray 672510MA

GUIDE, ROPE 1/4-20

$5.99

$

Usually ships in 2-12 days

0

741

Murray 710203

NUT, 1/4-20

$19.99

$

Usually ships in 2-12 days

0
