21472 - Toro 22" Recycler Walk-Behind Mower (SN: 410239154 - 411763999) Engine and Blade Assembly Parts Diagram
22" Recycler Walk-Behind Mower

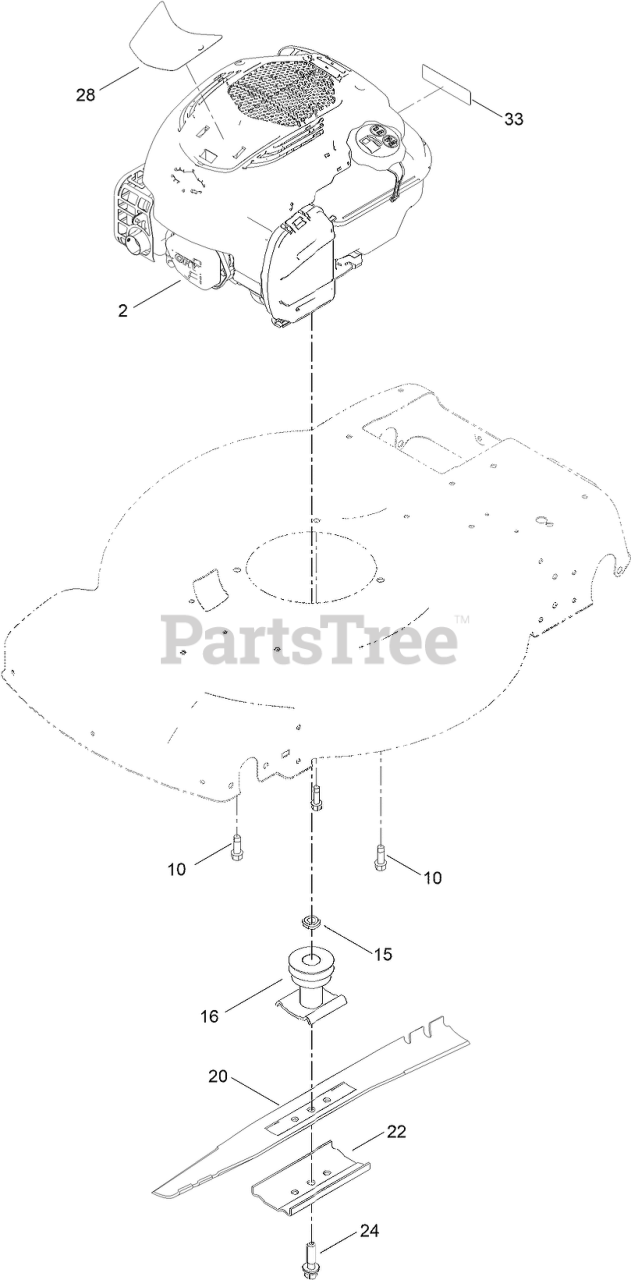

Engine and Blade Assembly Parts Diagram
2
ENGINE-BRIGGS, 104M020010F1
Note: Not serviced separately
$
$
Not available
2
ENGINE-BRIGGS, 104M020010F1
Note: Obtain parts from www.briggsandstratton.com
$
$
Not available
Toro 121-5844
SCREW-THD FORM, HWH
$1.49
$
In Stock, only 3 left!
Toro 106-3999
SPACER-DRIVER
$3.99
$
In Stock, Qty 20+
Toro 130-6705
DRIVER-BLADE
$43.99
$
In Stock, Qty 6
Toro 131-4547-03
BLADE-22 INCH
$23.99
$
In Stock, Qty 20+
Toro 108-3766-03
SUPPORT-BLADE
$11.99
$
In Stock, Qty 20+
Toro 125-2466
BOLT-BLADE
$3.99
$
In Stock, Qty 20+
Toro 140-4248
DECAL - BRIGGS 725 EX
$3.49
$
In Stock, only 2 left!
Toro 133-8062
DECAL-ARRESTOR, SPARK
$2.99
$
Usually ships in 3-6 days
