21472 - Toro 22" Recycler Walk-Behind Mower (SN: 408900000 - 410239153) Rear Wheel and Height-of-Cut Assembly Parts Diagram

22" Recycler Walk-Behind Mower

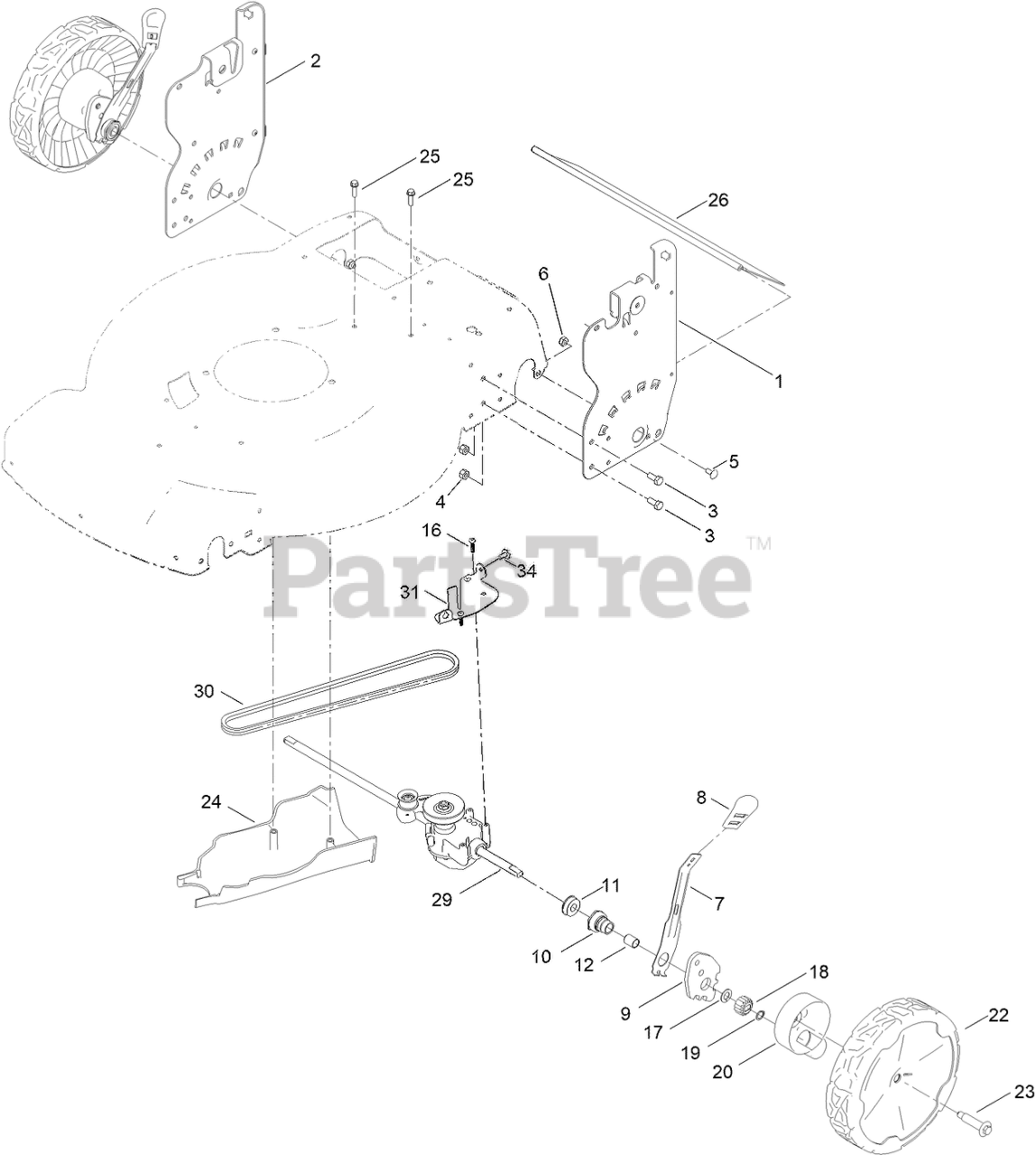

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title
1

Toro 139-6591-05

PLATE-HOC, LH (ISO)
(Superseded to 144-6476-05)

$28.99

$

Usually ships in 3-6 days

0

2

Toro 139-6590-05

PLATE-HOC, RH (ISO)
(Superseded to 144-6515-05)

$28.99

$

Usually ships in 3-6 days

0

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

7

Toro 132-4486

ARM-SPRING

$14.99

$

Usually ships in 3-6 days

0

8

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

9

Toro 139-5451

ARM-PIVOT, REAR

$12.99

$

In Stock, Qty 6

0

10

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

Usually ships in 3-6 days

0

11

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 18

0

12

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 7

0

16

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

17

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

18

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

19

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

20

Toro 140-2362

ASM-COVER, GEAR (DK GRAY)

$4.49

$

In Stock, Qty 7

0

22

Toro 140-2350

ASM-9.65" WHEEL, GEARED

$34.99

$

In Stock, only 4 left!

0

23

Toro 139-1789

WHEEL BOLT
(Superseded to 145-3899)

$1.99

$

In Stock, Qty 5

0

24

Toro 130-6709

COVER-BELT, REAR

$15.99

$

In Stock, only 1 left!

0

25

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

26

Toro 139-6597

SHIELD-TRAILING
(Superseded to 145-5821)

$19.99

$

Usually ships in 3-6 days

0

29

Toro 140-2370

TRANSMISSION-AWD

$117.99

$

Usually ships in 3-6 days

0

30

Toro 140-2380

BELT-AWD, 34.50

$20.99

$

In Stock, only 1 left!

0

31

Toro 140-2371-03

GUIDE-BELT, AWD

$6.99

$

Usually ships in 3-6 days

0

34

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0
