21472 - Toro 22" Recycler Walk-Behind Mower (SN: 408900000 - 410239153) Front Wheel and Height-of-Cut Assembly Parts Diagram

22" Recycler Walk-Behind Mower

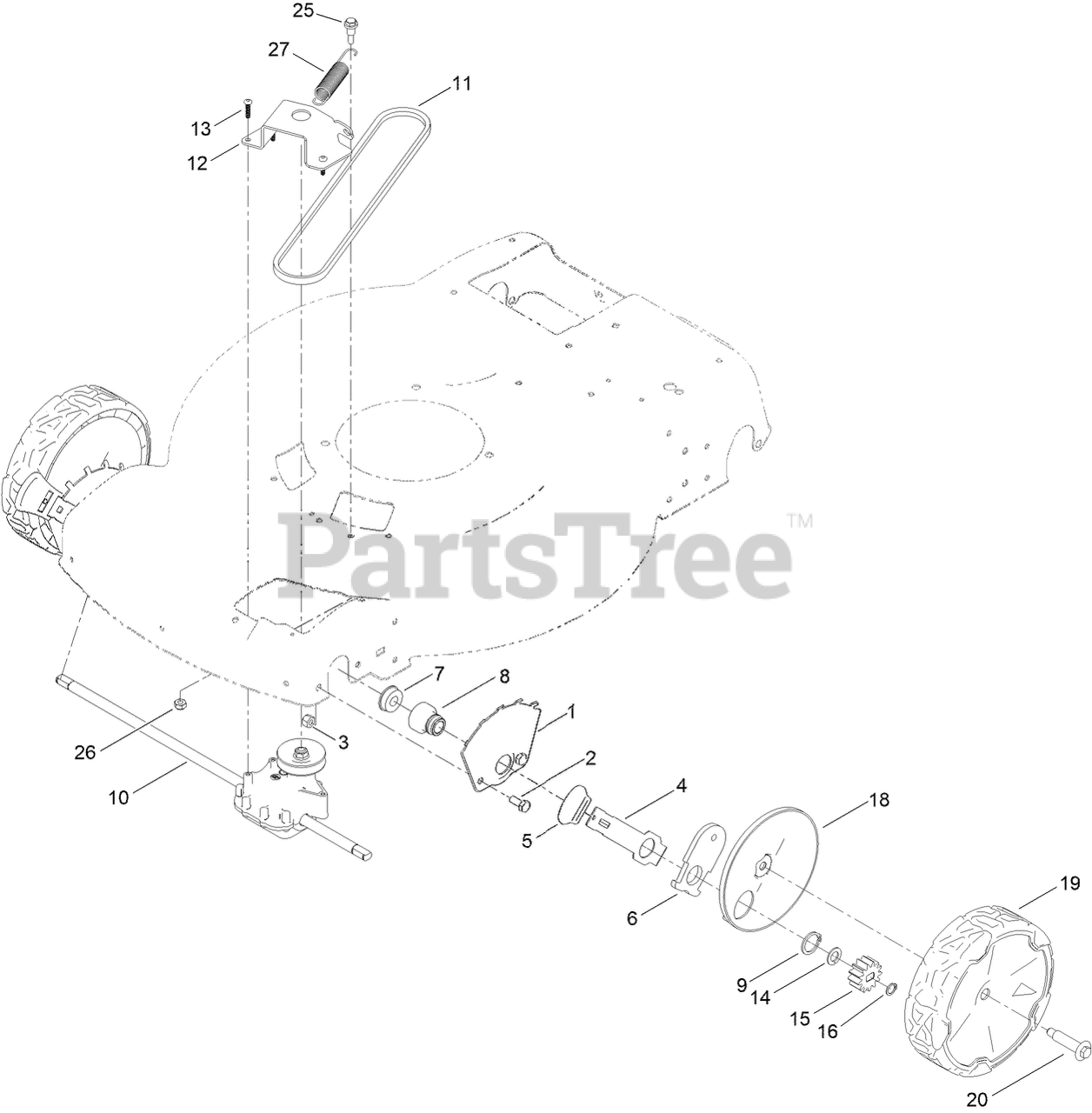

Front Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 115-1956-05

PLATE-HOC,FRONT FSVQ WEDNESDAY

$10.99

$

In Stock, only 1 left!

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 105-1809

ARM-SPRING

$11.99

$

In Stock, only 2 left!

0

5

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

6

Toro 137-9128

ARM-PIVOT, FRONT

$7.49

$

In Stock, only 3 left!

0

7

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 18

0

8

Toro 131-0836

RETAINER-BEARING, HOC

$14.99

$

In Stock, only 2 left!

0

9

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

10

Toro 137-4823

TRANSMISSION

$110.99

$

In Stock, only 1 left!

0

11

Toro 71-9450

V-BELT

$23.99

$

In Stock, only 2 left!

0

12

Toro 114-7978-03

BRACKET-TRANSMISSION

$11.99

$

In Stock, only 1 left!

0

13

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

14

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

15

Toro 131-0896

GEAR-PINION, 13T

$6.99

$

In Stock, Qty 20+

0

16

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

18

Toro 140-2364

ASM-COVER, WHEEL (DK GRAY)

$6.99

$

In Stock, only 3 left!

0

19

Toro 140-2358

ASM-8" WHEEL, FWD (BUSHINGS)

$29.99

$

In Stock, Qty 5

0

20

Toro 139-1789

WHEEL BOLT
(Superseded to 145-3899)

$1.99

$

In Stock, Qty 5

0

25

Toro 104-0858

BOLT-SHOULDER

$5.49

$

In Stock, Qty 9

0

26

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

27

Toro 140-4193

SPRING-EXTENSION

$1.99

$

Usually ships in 3-6 days

0
