21467 - Toro 22" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 400000000 - 999999999) Motor Module Assembly No. 147-0425 2 Parts Diagram

22" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

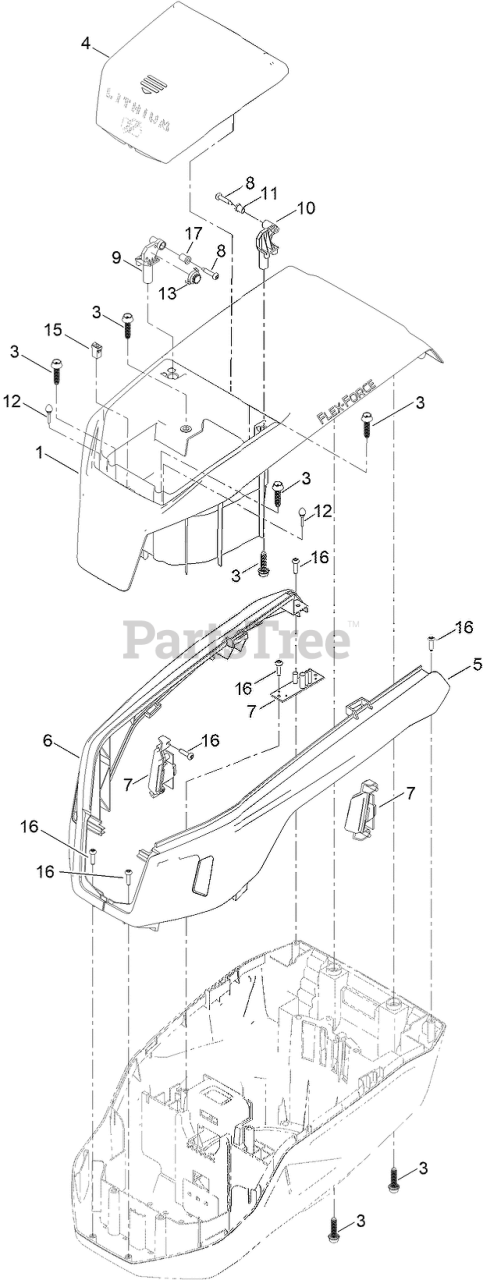

Motor Module Assembly No. 147-0425 2 Parts Diagram

  • Title

1

Toro 144-6442

SHROUD-UPPER

$30.99

$

Usually ships in 0 days

0

2

Toro 145-1511

SPRING-TORSION

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0

3

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 20+

0

4

Toro 144-6445

DOOR-BATTERY

$17.99

$

Usually ships in 3-6 days

0

5

Toro 147-0426

BEZEL-LH

$

$

Currently unavailable

6

Toro 147-0427

BEZEL-RH

$

$

Currently unavailable

7

Toro 144-6447

LED ASM

$46.99

$

Usually ships in 3-6 days

0

8

Toro 139-6642

SCREW

$0.99

$

Usually ships in 3-6 days

0

9

Toro 144-6449

PIVOT-DOOR, BATTERY

$3.99

$

Usually ships in 0 days

0

10

Toro 145-1513

PIVOT-DOOR, BATTERY

$3.99

$

Usually ships in 0 days

0

11

Toro 145-1510

BUSHING-SPACER

$2.99

$

Usually ships in 0 days

0

12

Toro 145-3887

BUMPER-RUBBER

$

$

Currently unavailable

13

Toro 145-1515

DAMPER-GEAR

$6.99

$

Usually ships in 0 days

0

15

Toro 145-1517

LATCH-PUSH

$2.99

$

Usually ships in 3-6 days

0

16

Toro 145-1516

SCREW-TORX DRIVE PLASTITE

$

$

Currently unavailable

17

Toro 145-1539

BUSHING-SPACER, METAL

$4.99

$

Usually ships in 0 days

0
