21465 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 411852567 - 411961727) Engine Assembly Parts Diagram

22" Recycler Walk-Behind Mower with SmartStow

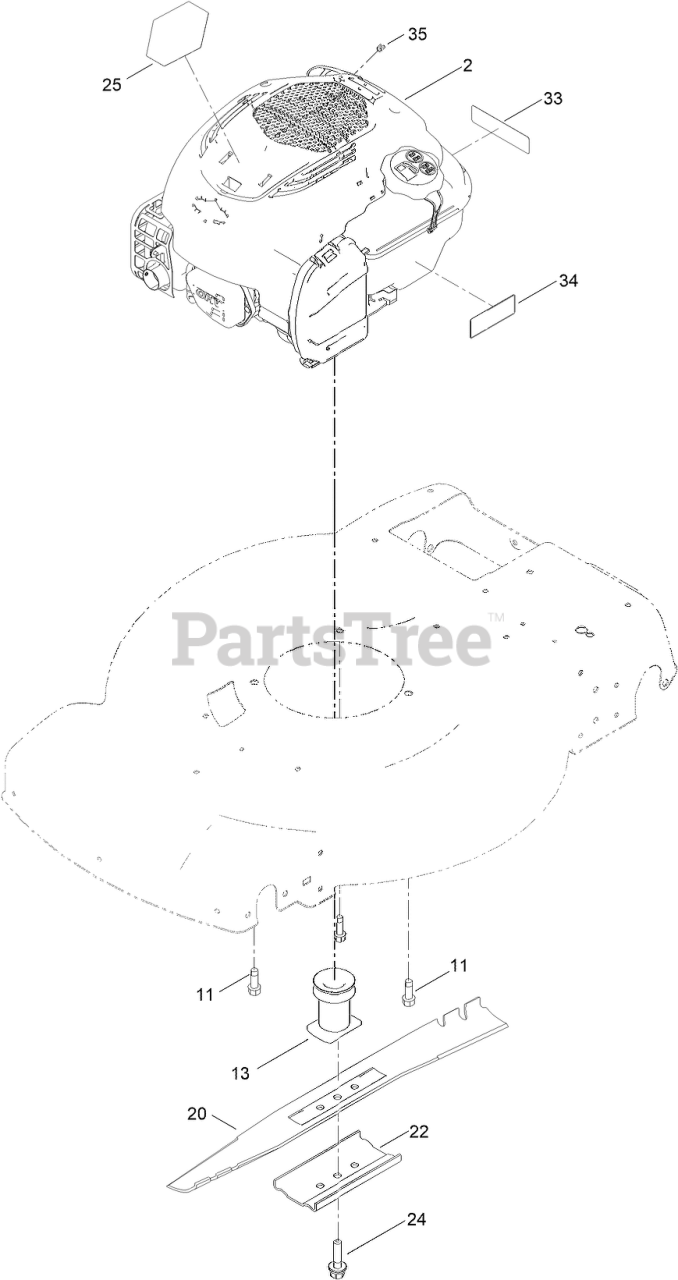

Engine Assembly Parts Diagram

  • Title

2

ENGINE-BRIGGS, 104M020010F1

Note: Not serviced separately

$

$

Not available

2

ENGINE-BRIGGS, 104M020010F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

11

Toro 121-5844

SCREW-THD FORM, HWH

$1.49

$

In Stock, only 3 left!

0

13

Toro 139-1816

DRIVER-BLADE

$21.99

$

In Stock, only 4 left!

0

20

Toro 131-4547-03

BLADE-22 INCH

$22.99

$

In Stock, Qty 20+

0

22

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

24

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

25

Toro 140-4247

DECAL-BRIGGS 625 EXI SS

$2.99

$

Usually ships in 3-6 days

0

33

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

34

Toro 133-8198

DECAL-LEVEL, FUEL

$

$

Currently unavailable

35

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0
