21464 - Toro 22" Recycler Walk-Behind Mower (SN: 410018042 - 411659999) Electrical Assembly Parts Diagram

22" Recycler Walk-Behind Mower

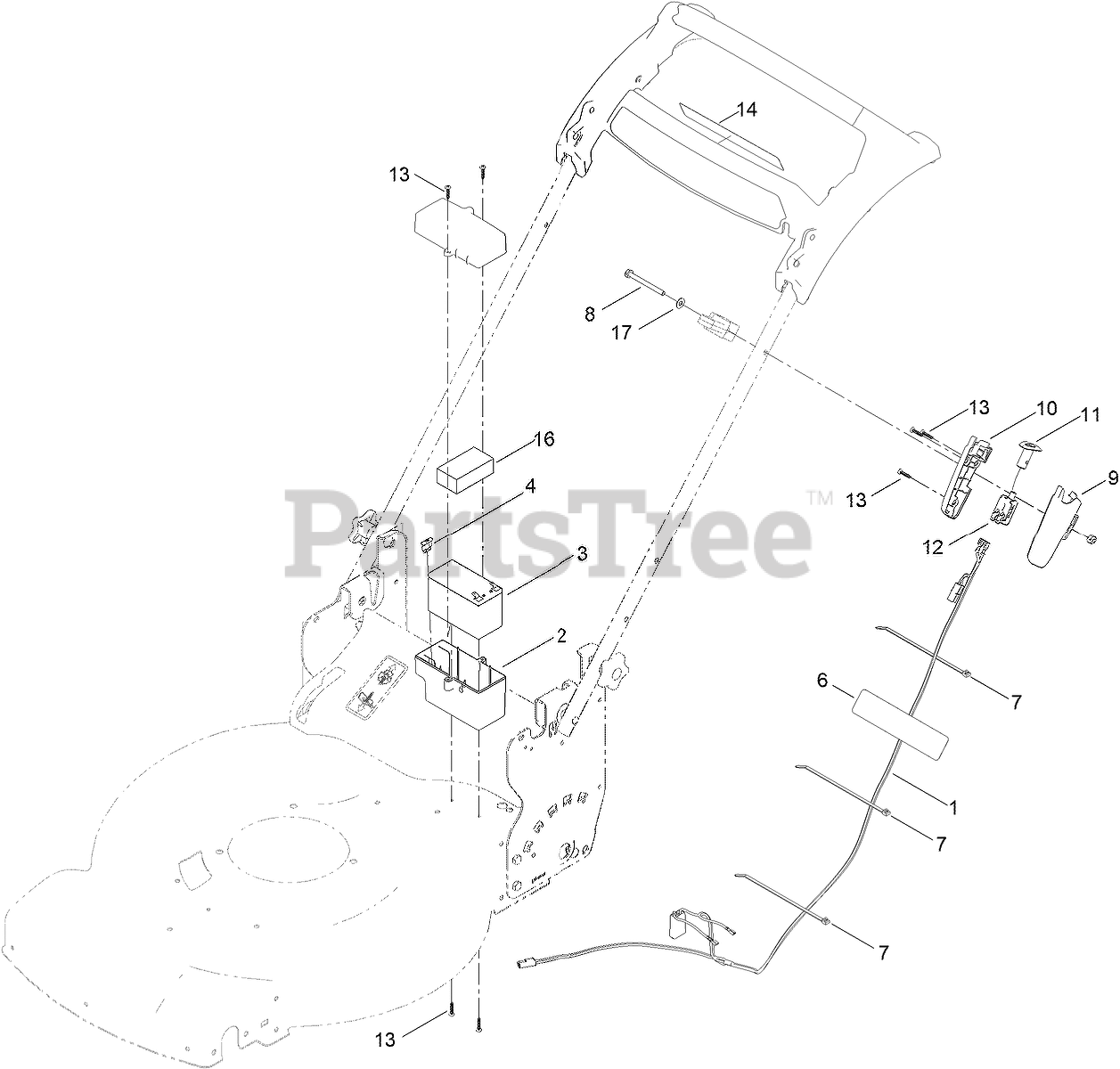

Electrical Assembly Parts Diagram

  • Title

1

Toro 140-3924

HARNESS-WIRE

$38.99

$

Usually ships in 3-6 days

0

2

Toro 144-6390

BATTERY BOX ASM

$11.99

$

Usually ships in 3-6 days

0

3

Toro 127-0694

BATTERY-NONSPILLABLE, 12 V

$99.99

$

In Stock, only 1 left!

0

4

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

6

Toro 140-4357

DECAL-BATTERY CHARGING

$10.99

$

Usually ships in 3-6 days

0

7

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

8

Toro 321-57

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

9

Toro 133-8160

HOUSING-SWITCH, LH

$1.99

$

In Stock, Qty 5

0

10

Toro 133-8161

HOUSING-SWITCH, RH

$1.99

$

In Stock, only 2 left!

0

11

Toro 125-2470

BUTTON-SWITCH

$2.49

$

In Stock, Qty 11

0

12

Toro 121-9173

SWITCH-PUSH BUTTON

$23.99

$

In Stock, only 1 left!

0

13

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14

Toro 133-1900

DECAL-BUTTON, PUSH

$5.99

$

In Stock, only 2 left!

0

16

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

17

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
