21463 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 400000000 - 415399999) Bail Brake Assembly Parts Diagram

22" Recycler Walk-Behind Mower with SmartStow

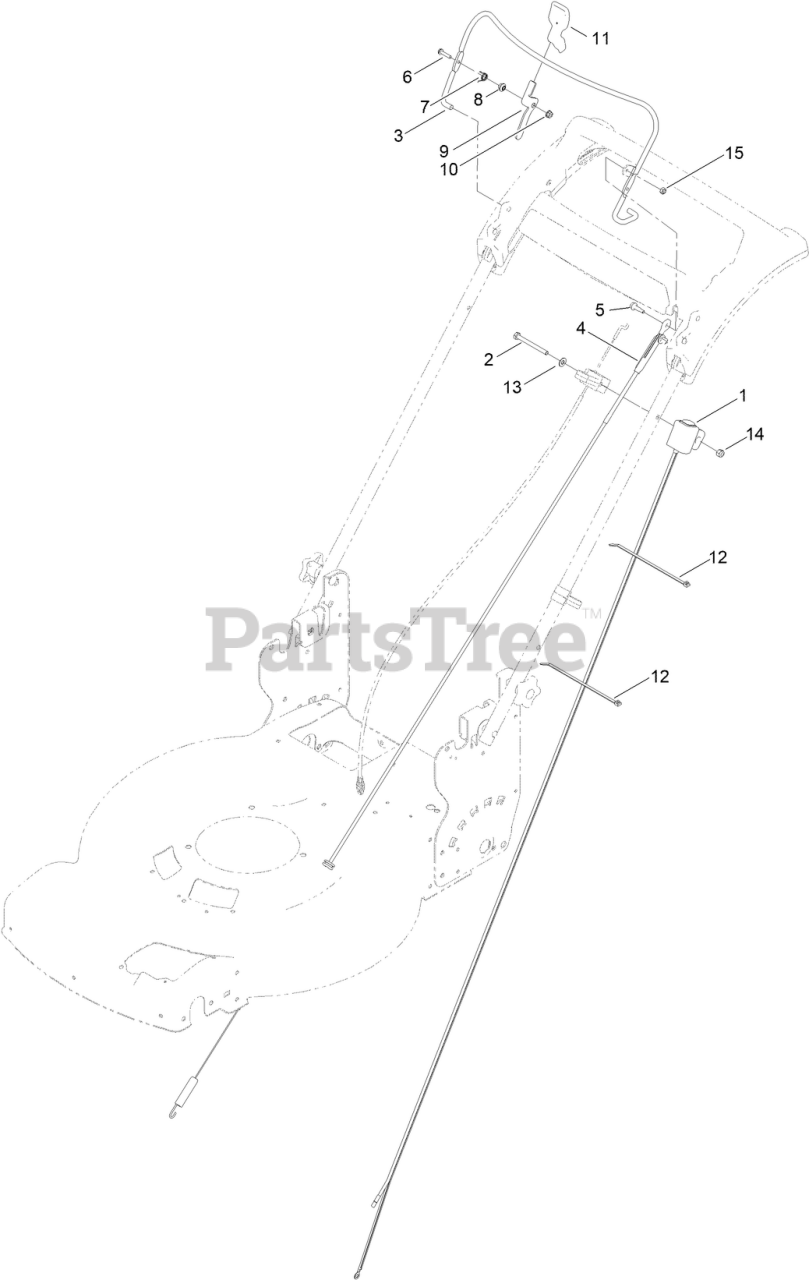

Bail Brake Assembly Parts Diagram

  • Title

1

Toro 117-5975

SWITCH HOUSING ASM

$19.99

$

In Stock, Qty 20+

0

2

Toro 321-57

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

3

Toro 147-0505-03

BAIL-BRAKE [BLACK]

$14.99

$

Usually ships in 0 days

0

4

Toro 115-8439

CABLE-BRAKE

$30.99

$

In Stock, Qty 20+

0

5

Toro 139-1709

SCREW-SHOULDER

$2.49

$

Usually ships in 3-6 days

0

6

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 4 left!

0

7

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, Qty 12

0

8

Toro 107-7463

SPACER

$3.49

$

In Stock, Qty 13

0

9

Toro 144-3174

LEVER

$15.99

$

Usually ships in 3-6 days

0

10

Toro 139-1712

NUT-HEX FLANGE

$0.99

$

Usually ships in 3-6 days

0

11

Toro 112-8884

KNOB

$6.49

$

In Stock, Qty 20+

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

13

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 7

0

15

Toro 137-3085

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0
