21462 - Toro 22" Recycler Walk-Behind Mower (SN: 411700000 - 412001349) Handle Assembly Parts Diagram

22" Recycler Walk-Behind Mower

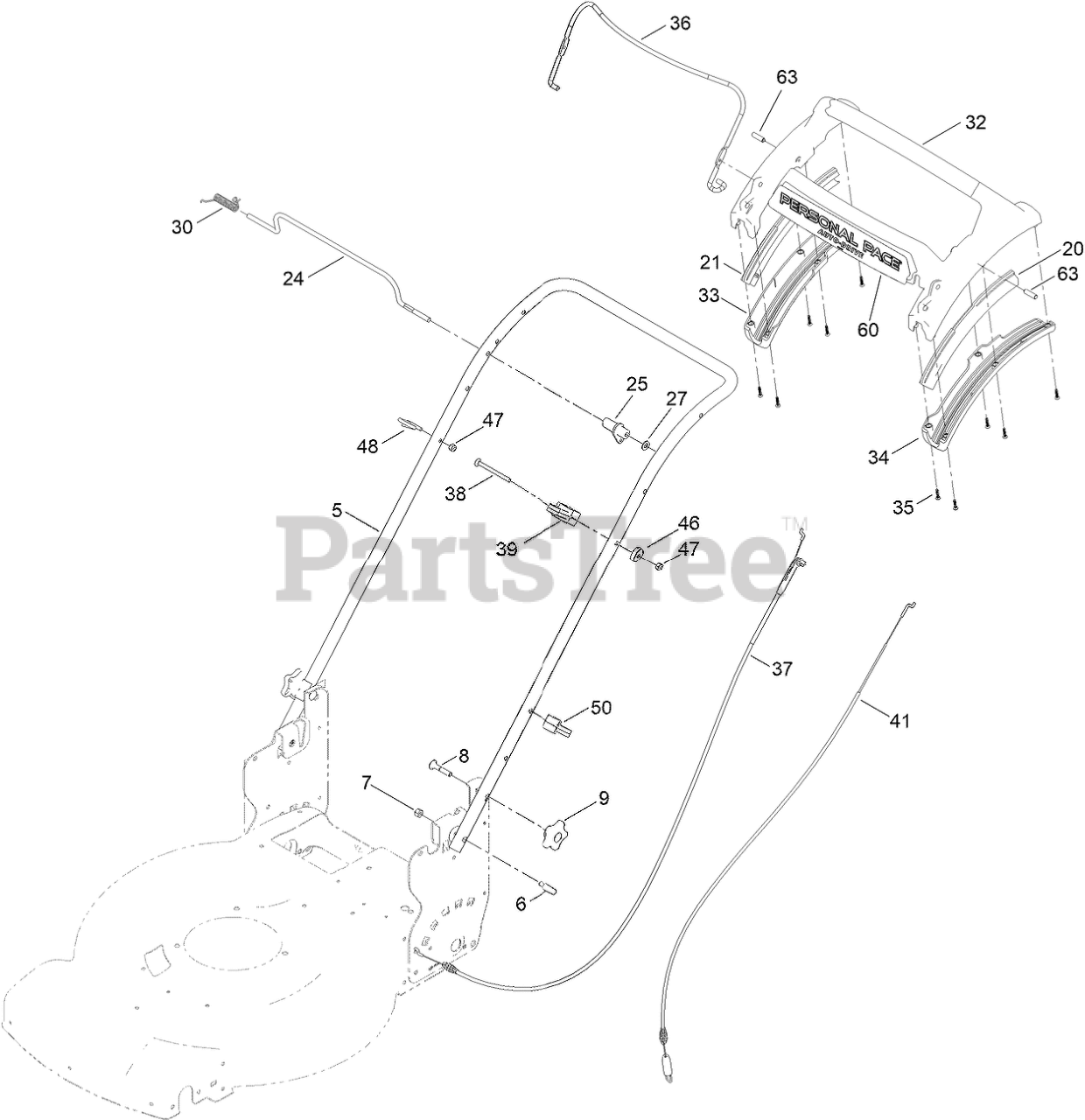

Handle Assembly Parts Diagram

  • Title

5

Toro 139-5458-05

HANDLE-CURVED

$49.99

$

In Stock, only 1 left!

0

6

Toro 139-6599

BOLT-SHOULDER, HANDLE

$1.49

$

In Stock, Qty 6

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 131-9663

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

20

Toro 140-2367

GUIDE-CURVED, LH (RWD)

$5.99

$

In Stock, only 1 left!

0

21

Toro 140-2366

GUIDE-CURVED, RH (RWD)

$5.99

$

In Stock, only 1 left!

0

24

Toro 139-5464

ROD-CONTROL, TRACTION

$7.49

$

In Stock, only 1 left!

0

25

Toro 139-6554

LEVER-TRACTION, RWD

$2.99

$

In Stock, only 2 left!

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 140-4194

SPRING-TORSION

$1.99

$

In Stock, only 4 left!

0

32

Toro 139-6569

HANDLE-PERSONAL PACE, CURVED

$31.99

$

In Stock, only 1 left!

0

33

Toro 139-6567

BOTTOM-HANDLE, RH

$3.99

$

In Stock, only 1 left!

0

34

Toro 139-6568

BOTTOM-HANDLE, LH

$3.99

$

In Stock, only 1 left!

0

35

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

36

Toro 140-4023-03

BAIL-BRAKE

$

$

Not available

37

Toro 139-6594

CABLE-BRAKE, PP BS

$15.99

$

In Stock, Qty 8

0

38

Toro 144-0221

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

39

Toro 139-6581

ANCHOR-CABLE, RWD

$3.49

$

In Stock, only 1 left!

0

41

Toro 139-6595

CABLE-TRACTION, RWD (PP)

$15.99

$

In Stock, Qty 11

0

46

Toro 136-9075

WASHER-CURVED

$1.49

$

In Stock, only 2 left!

0

47

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

48

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

50

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

60

Toro 140-4187

DECAL

$5.49

$

Usually ships in 3-6 days

0

63

Toro 139-6577

PIN-HANDLE, PP

$1.49

$

In Stock, Qty 10

0
