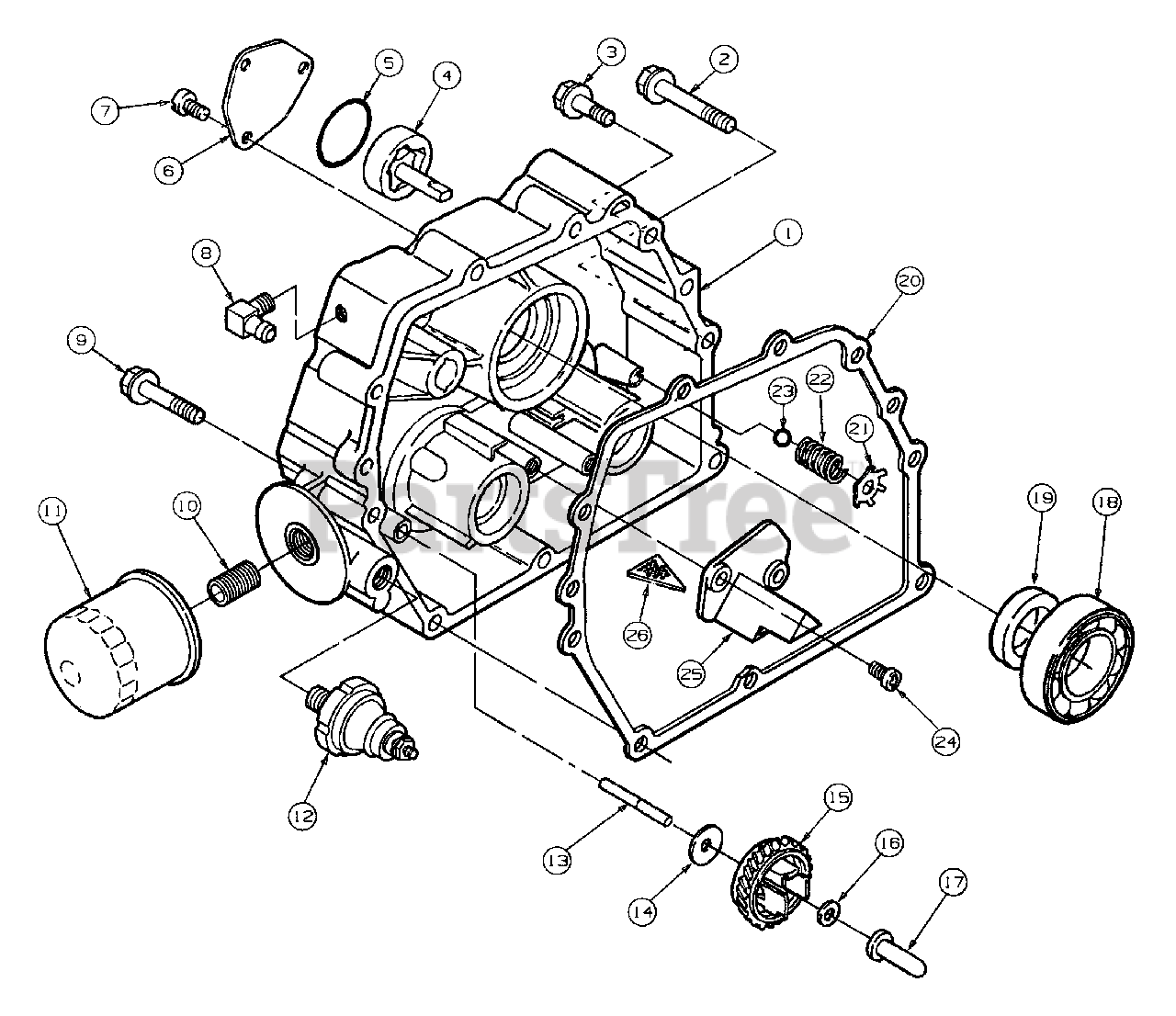

2146 (13A-224F100) - Cub Cadet Garden Tractor Gearcase Parts Diagram

Garden Tractor

Gearcase Parts Diagram

  • Title

1

Cub Cadet ME-103-0825-03

Gearcase

$

$

Not available

2

Cub Cadet ME-815-0829-03

Screw, Hex Hd, TT, M8x1.25x 70

$

$

Not available

3

Cub Cadet ME-815-0829-01

Screw, Hex Hd, TT, M8x1.25x 35

$

$

Not available

4

Cub Cadet ME-120-1313

Oil Pump

$

$

Not available

5

Cub Cadet ME-509-0253

O-Ring

$

$

Not available

6

Cub Cadet ME-120-1299-02

Cover, Oil Pump

$

$

Not available

7

Cub Cadet ME-823-0003-05

Screw, Torx Pan Hd, M6 x 1 x 14
(Superseded to ME-823-0003-02)

$

$

Not available

8

Cub Cadet ME-502-0313

Elbow, 90° Hose

$

$

Currently unavailable

9

Cub Cadet ME-815-0829-02

Screw, Hex Hd TT, M8 x 1.25x 50

$

$

Not available

10

Cub Cadet ME-122-0475

Adapter, Oil Filter

$

$

Not available

11

Cub Cadet ME-122-0737-02

Filter, Oil

$40.99

$

Usually ships in 3-6 days

0

12

Cub Cadet ME-309-0615

Switch, Oil Pressure

$

$

Not available

13

Cub Cadet ME-775-0069

Shaft Governor

$

$

Not available

14

Cub Cadet ME-526-2078

Washer, Flat, Special

$

$

Not available

15

Cub Cadet ME-150-2272

Gear, Gov

Note: (Incl Shafts & Weights)

$134.99

$

Usually ships in 3-6 days

0

16

Cub Cadet ME-150-2547

Retainer, Governor Gear

$

$

Not available

17

Cub Cadet ME-150-2754

Sleeve, Governor

$

$

Not available

18

Cub Cadet ME-510-0160

Bearing, Crankshaft

$

$

Not available

19

Cub Cadet ME-509-0258

Seal, Crankshaft Oil

$

$

Not available

20

Cub Cadet ME-110-3833

Gasket, Gearcase
(Superseded to ME-102-1441)

$

$

Not available

21

Cub Cadet ME-518-0560

Ring, Retaining

$

$

Not available

22

Cub Cadet ME-120-0140

Spring, Relief Valve

$

$

Not available

23

Cub Cadet ME-510-0195

Ball, Steel, 7.5mm OD

$

$

Not available

24

Cub Cadet ME-823-0003-02

Screw, Torx Pan Hd, M6 x 1 x 14

$

$

Not available

25

Cub Cadet ME-120-1295

Tube, Oil Pickup

$

$

Not available

26

Cub Cadet ME-120-1298

Screen Oil Pickup

$

$

Not available
