2146 (13A-224F100) - Cub Cadet Garden Tractor Engine Mounting And Muffler Parts Diagram

Garden Tractor

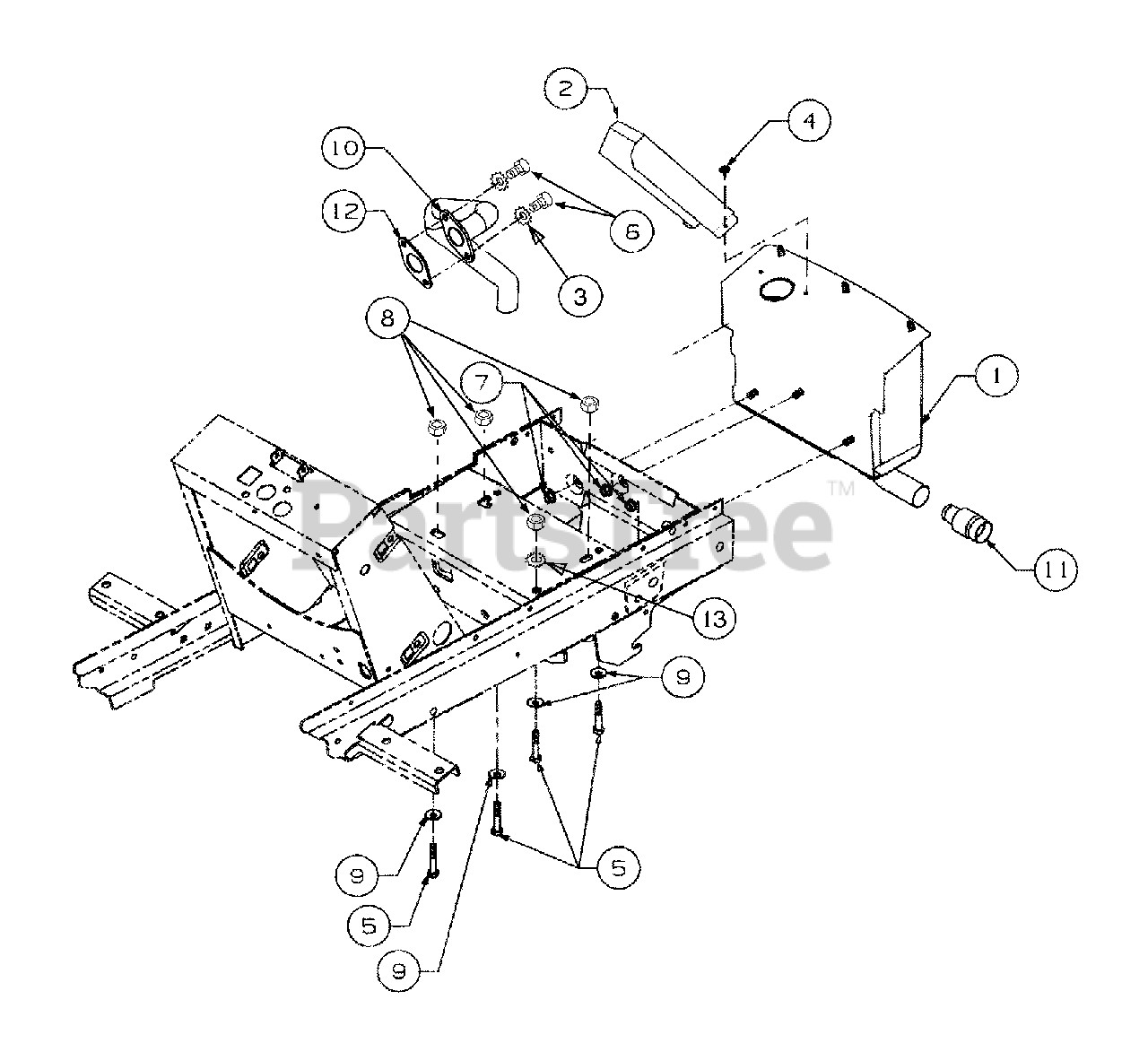

Engine Mounting And Muffler Parts Diagram

  • Title
1

Cub Cadet 651-3001

Muffler Assembly
(Superseded to 951-3001P)

$437.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-3099

Sheild, Muffler Tube
(Superseded to 703-3099A)

$33.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-0607

Washer, External Lock, 5/16

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1268

Screw, Hex Wsh Hd Tap, #10-16 x .38

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0539

Bolt, Eng Mount, 3/8-24 x 1.75 GR5

$4.99

$

In Stock, Qty 11

0

6

Cub Cadet 710-3175

Screw, Hex Hd Cap, M8 x 1.25 x 14

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .062

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 751-0806

Tube, Exhaust

$115.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 759-3744

Arrestor, Spark
(Superseded to 951-0544)

$

$

Not available

12

Cub Cadet ME-155-2378

Gasket, Exhaust

$

$

Not available

13

Cub Cadet 736-0148

Washer, External Lock, 3/8

$3.99

$

In Stock, Qty 20+

0
