2146 (13A-224F100) - Cub Cadet Garden Tractor Cylinder Block And Engine Parts Diagram

Garden Tractor

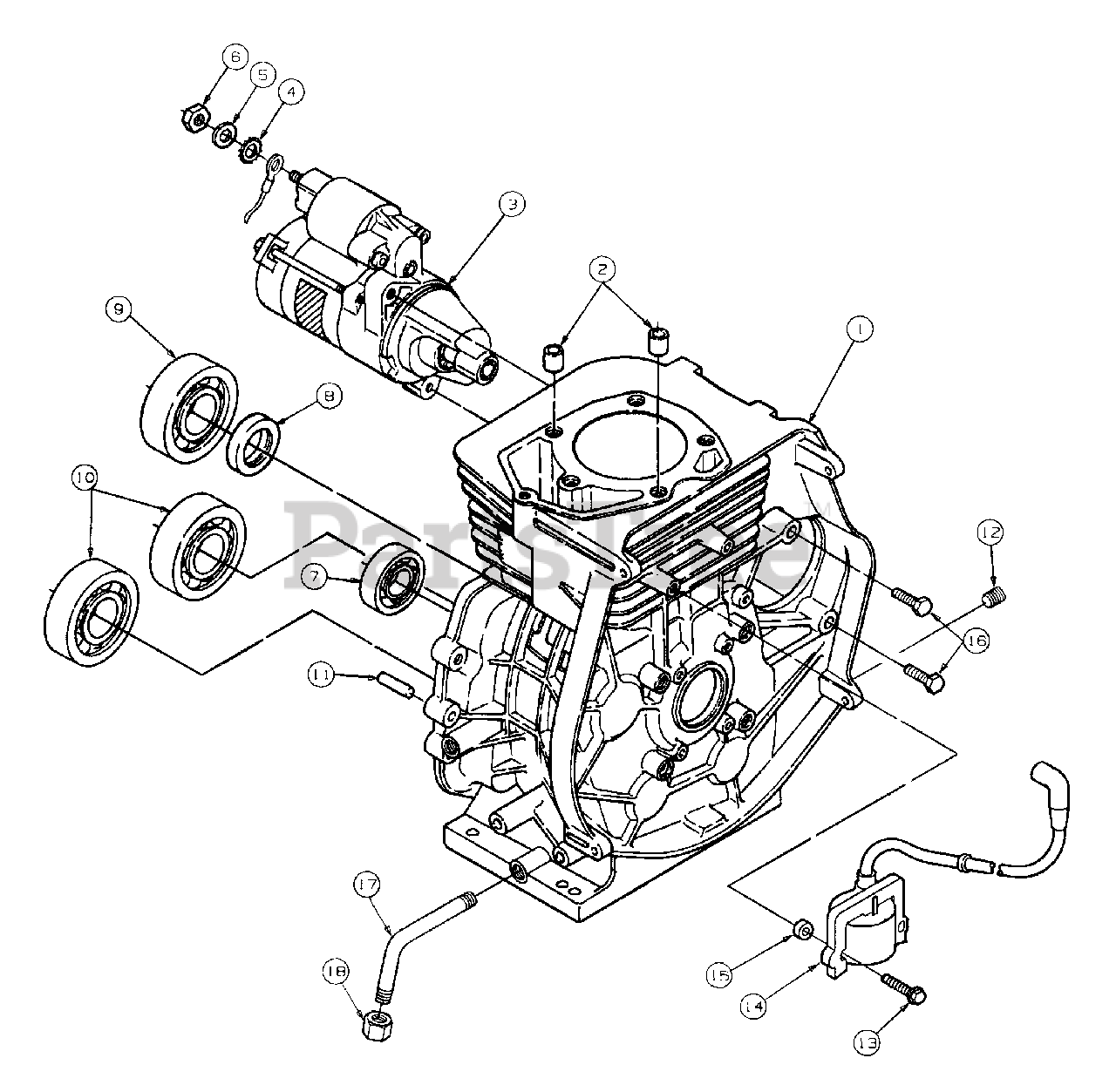

Cylinder Block And Engine Parts Diagram

  • Title

1

Cub Cadet ME-ZX390/11317D

Engine, Complete

$

$

Not available

2

Cub Cadet ME-110-3892

Pin, Hollow Dowel

$

$

Not available

3

Cub Cadet ME-191-2107

Starter

$

$

Not available

4

Cub Cadet ME-853-0016

Washer, ET Lock, 5/16

$

$

Not available

5

Cub Cadet ME-526-0115

Washer, Flat, 5/16

$

$

Not available

6

Cub Cadet ME-860-2008

Nut, Hex, M8 x 1.25

$

$

Not available

7

Cub Cadet ME-510-0162

Bearing, Camshaft

$

$

Not available

8

Cub Cadet ME-509-0258

Seal, Crankshaft Oil

$

$

Not available

9

Cub Cadet ME-510-0160

Bearing, Crankshaft

$

$

Not available

10

Cub Cadet ME-510-0163

Bearing Balancer Shaft

$

$

Not available

11

Cub Cadet ME-775-0074

Pin, Alignment

$

$

Not available

12

Cub Cadet ME-505-0180

Plug, 1/4 NPT Countersunk Hd

$

$

Not available

13

Cub Cadet ME-823-0003-07

Screw, Pan Head, M6 x 1 x 30

$

$

Not available

14

Cub Cadet ME-166-0832

Coil, Ignition

$

$

Not available

15

Cub Cadet ME-166-0837

Spacer, Ignition Coil, M6 x 30

$

$

Not available

16

Cub Cadet ME-718-1040

Screw, Hex Hd, M8 x 1.25 x 40

$

$

Not available

17

Cub Cadet 751-3132

Pipe, Oil Drain

$

$

Not available

18

Cub Cadet 751-3129

Cap, Oil Drain
(Superseded to 737-0132)

$10.99

$

Usually ships in 3-6 days

0

?19

Cub Cadet ME-102-1441

Gasket Set, Engine

$

$

Not available
