2146 (13A-224F100) - Cub Cadet Garden Tractor Air Cylinder Housing Parts Diagram

Garden Tractor

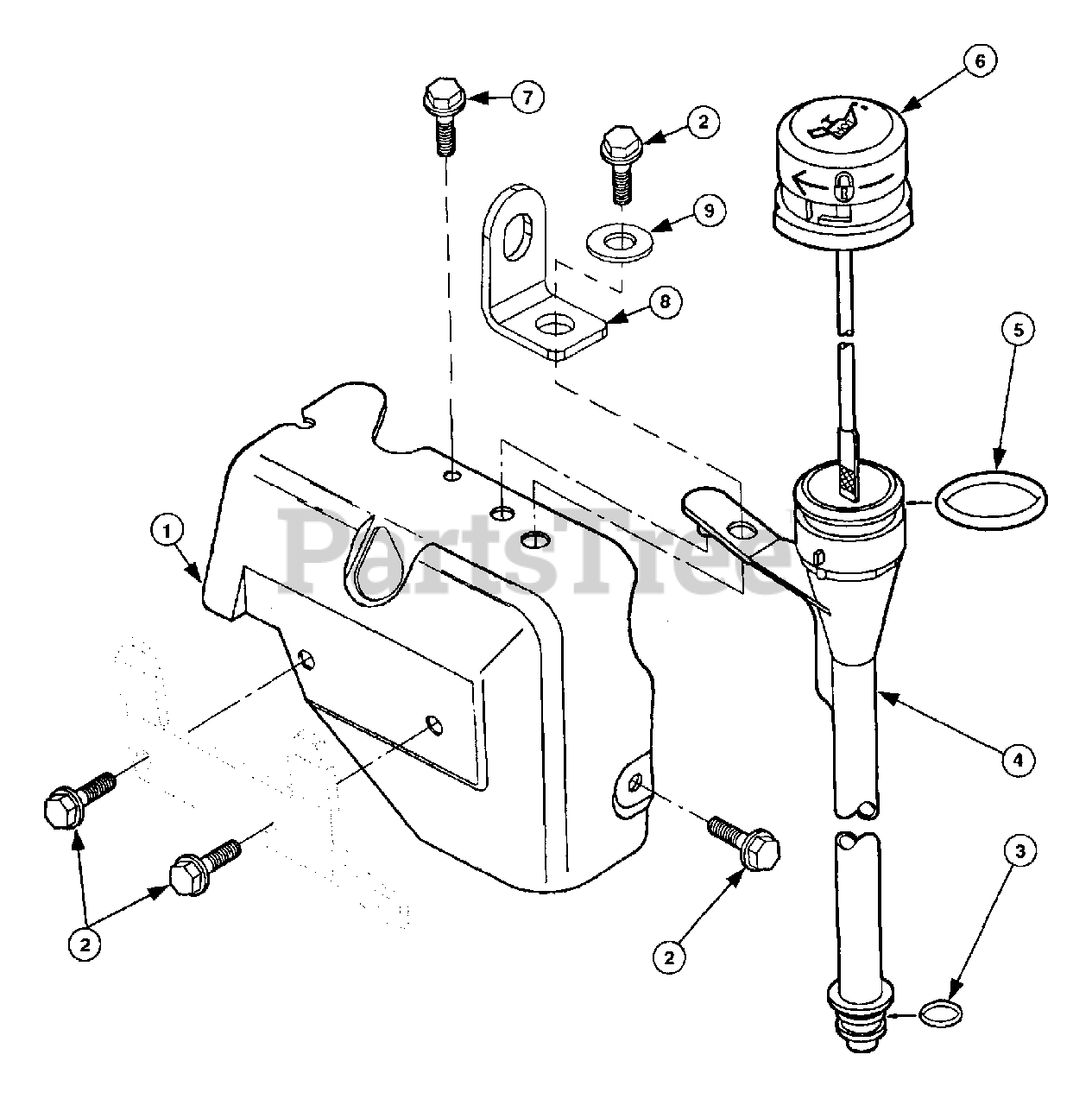

Air Cylinder Housing Parts Diagram

  • Title
1

Cub Cadet ME-134-4991-02

Housing, Air Cylinder

$

$

Not available

2

Cub Cadet ME-815-0829-04

Screw, Hx Hd TT, M8 x 1.25 x 16

$

$

Not available

3

Cub Cadet ME-509-0324

O-Ring, Lower

$

$

Not available

4

Cub Cadet ME-123-1970

Tube, Oil Fill

$

$

Not available

5

Cub Cadet ME-509-0304

O-Ring, Upper

$

$

Not available

6

Cub Cadet ME-123-1972-01

Indicator and Cap Ass'y.

$

$

Not available

7

Cub Cadet ME-821-2033

Screw, Hx Flange Lock, M6 x 1 x 16

$

$

Not available

8

Cub Cadet ME-403-4202-02

Bracket, Lift

$

$

Not available

9

Cub Cadet ME-526-0115

Washer, Flat, 5/16"

$

$

Not available
