2145 (135-234G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Piston Parts Diagram

Garden Tractor

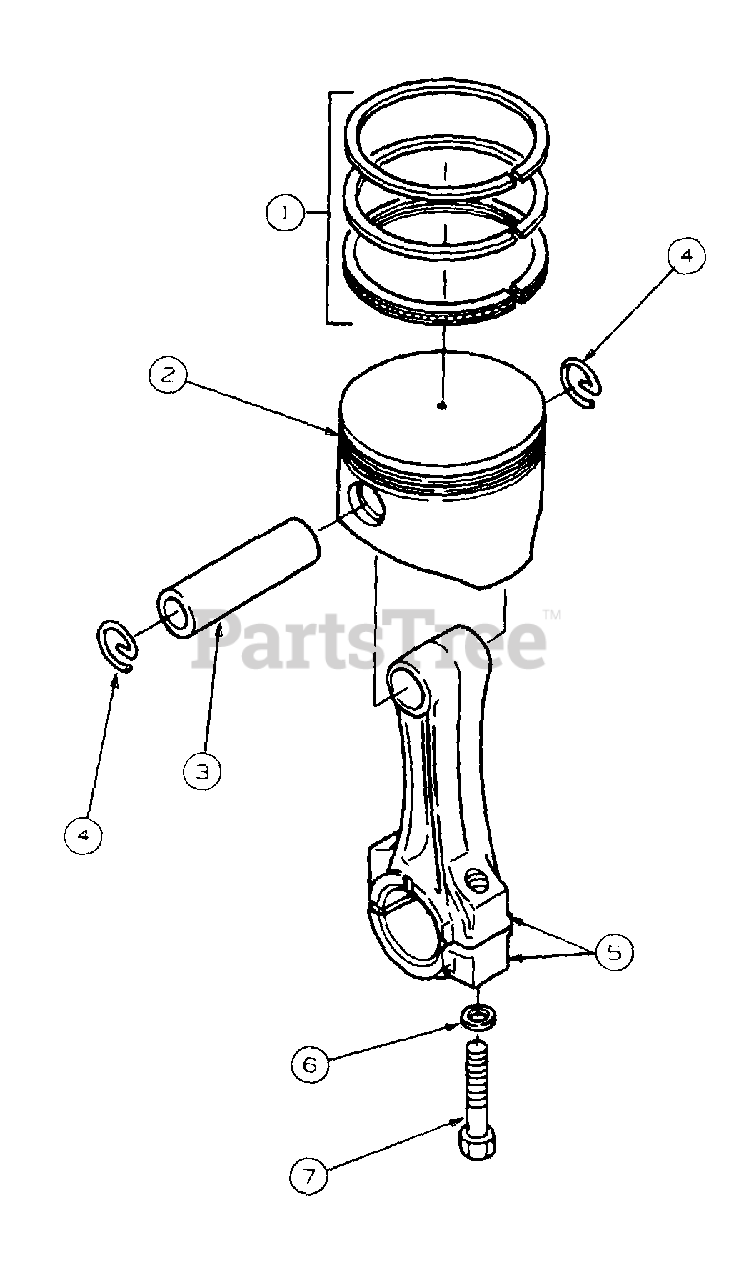

Piston Parts Diagram

  • Title
1

Cub Cadet ME-113-0330

Ring Set, Piston, Std

$103.99

$

Usually ships in 3-6 days

0

Cub Cadet ME-113-0330-01

Ring Set, Piston .25 OS

$

$

Not available

Cub Cadet ME-113-0330-02

Ring Set, Piston .50 OS

$

$

Not available

2

Cub Cadet ME-112-0276

Piston, Std

Note: (Includes Ref No. 1, 3 & 4)

$

$

Not available

Cub Cadet ME-112-0276-01

Piston, .25 OS

$

$

Not available

Cub Cadet ME-112-0276-02

Piston, .50 OS

$

$

Not available

3

Cub Cadet ME-112-0244

Pin, Piston

$

$

Not available

4

Cub Cadet ME-112-0245

Ring, Retaining

$

$

Not available

5

Cub Cadet ME-114-0357

Rod, Connecting, Std

Note: (Includes Ref No. 7)

$

$

Not available

Cub Cadet ME-114-0357-01

Rod, Connecting .25 OS
(Superseded to ME-114-0357)

$

$

Not available

Cub Cadet ME-114-0357-02

Rod, Connecting .50 OS

$

$

Not available

6

Cub Cadet ME-114-0356

Washer, Rod Connecting

$

$

Not available

7

Cub Cadet ME-114-0355

Bolt, Rod, Connecting
(Superseded to ME-114-0357)

$

$

Not available
