2145 (135-234G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Governor Parts Diagram

Garden Tractor

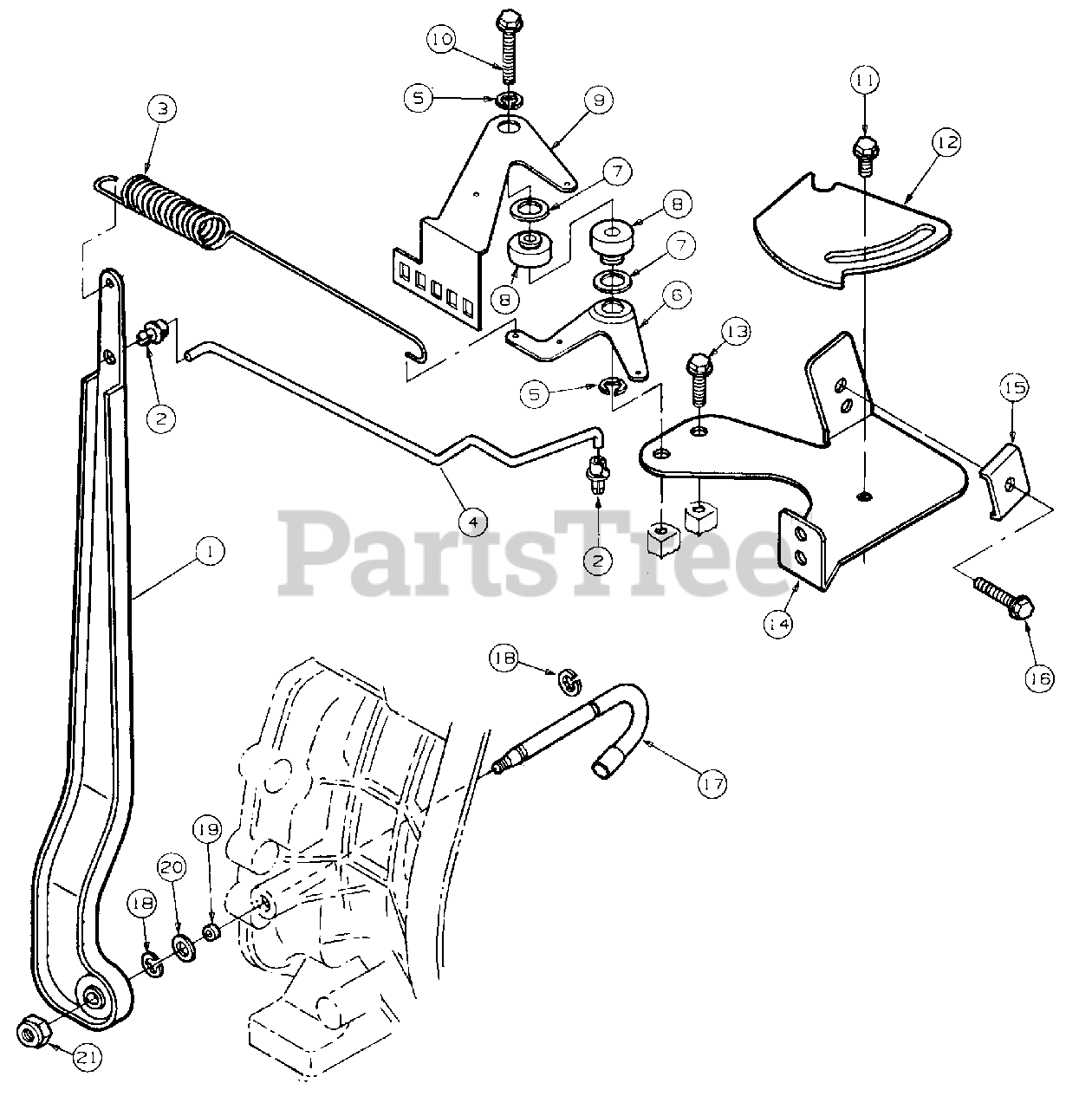

Governor Parts Diagram

  • Title

1

Cub Cadet ME-150-2534-02

Lever, Governor

$

$

Not available

2

Cub Cadet ME-152-0343

Clip, Link

$

$

Not available

3

Cub Cadet ME-150-2542

Spring, Governor

$

$

Not available

4

Cub Cadet ME-152-0332

Link, Throttle

$

$

Not available

5

Cub Cadet ME-518-0576

Circlip

$

$

Not available

6

Cub Cadet ME-152-0346-03

Lever, Control

$

$

Not available

7

Cub Cadet ME-851-0042

Washer, Wave Spring, M5

$

$

Not available

8

Cub Cadet ME-145-0697

Pivot, Lever

$

$

Not available

9

Cub Cadet ME-153-0663-03

Lever, Choke

$

$

Not available

10

Cub Cadet ME-815-0793-07

Screw, Hex Flange M5 x 0.8 x 30 mm

$

$

Not available

11

Cub Cadet ME-815-0793-02

Screw, Hex Flange M5 x 0.8 x 10 mm

$

$

Not available

12

Cub Cadet ME-152-0345-03

Bracket, Throttle Stop

$

$

Not available

13

Cub Cadet ME-815-0793-04

Screw, Hex Flange M5 x 0.8 x 16 mm

$

$

Not available

14

Cub Cadet ME-152-0344-03

Bracket, Throttle Lever

$

$

Not available

15

Cub Cadet ME-153-0633-01

Clamp, Cable

$

$

Not available

16

Cub Cadet ME-815-0359

Screw, Hex Washer Head, Thread Forming, #10-32 x 7/8

$

$

Not available

17

Cub Cadet ME-150-2529

Shaft, Governor Lever

$

$

Not available

18

Cub Cadet ME-518-0576

Clip, Retainer

$

$

Not available

19

Cub Cadet ME-509-0255

Seal, Governor Shaft Lever

$

$

Not available

20

Cub Cadet ME-740-1006

Washer, Flat, M8

$

$

Not available

21

Cub Cadet ME-870-0506

Nut, Nylon Lock, M6 x 1

$

$

Not available
