21445 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 411871745 - 411998891) Handle Assembly Parts Diagram

22" Recycler Walk-Behind Mower with SmartStow

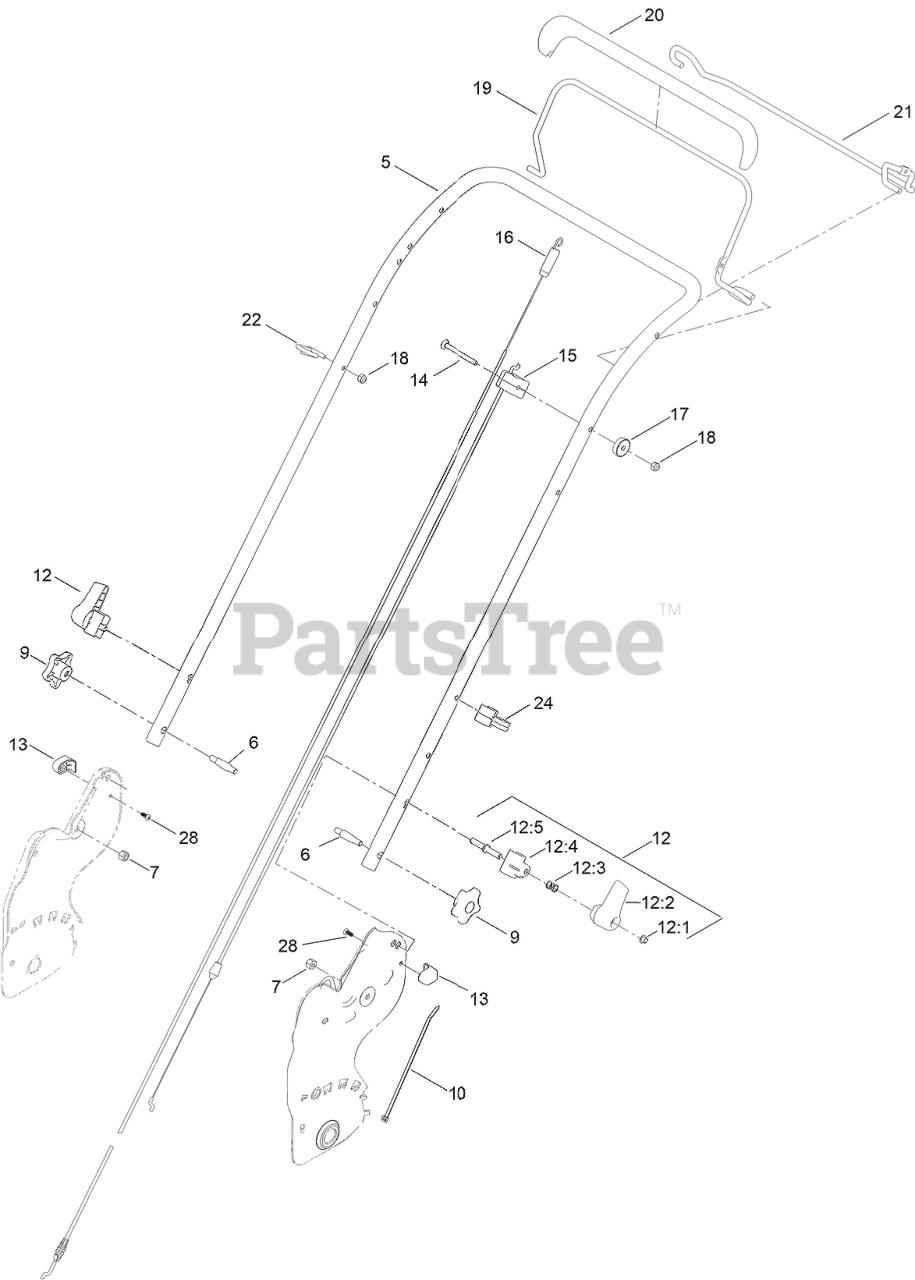

Handle Assembly Parts Diagram

  • Title

5

Toro 139-5458-05

HANDLE-CURVED

$49.99

$

In Stock, only 1 left!

0

6

Toro 139-6588

BOLT-SHOULDER, HANDLE

$1.99

$

In Stock, only 3 left!

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

10

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

12

Toro 138-3249

QUICK RELEASE ASM

$11.99

$

In Stock, only 2 left!

0

12:1

Toro 140-4157

NUT-PUSH

$1.99

$

Usually ships in 3-6 days

0

12:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

12:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

12:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

12:5

Toro 140-4158

ROD-RELEASE

$1.49

$

Usually ships in 3-6 days

0

13

Toro 140-2369

PAD-SMART STOW

$1.49

$

Usually ships in 3-6 days

0

14

Toro 144-0221

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

15

Toro 140-3948

CABLE-BRAKE, FWD

$17.99

$

In Stock, Qty 10

0

16

Toro 140-3947

CABLE-TRACTION, FWD

$15.99

$

In Stock, Qty 18

0

17

Toro 136-9075

WASHER-CURVED

$1.49

$

In Stock, only 2 left!

0

18

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

19

Toro 140-3918-03

BAIL-BRAKE

$12.99

$

In Stock, only 4 left!

0

20

Toro 140-3879

COVER-BAIL

$4.49

$

In Stock, only 1 left!

0

21

Toro 140-4024-03

BAIL-TRACTION

$10.99

$

In Stock, only 1 left!

0

22

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

24

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

28

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0
