21442 - Toro 22" Recycler Walk-Behind Mower (SN: 411820185 - 411994987) Rear Wheel and Height-of-Cut Assembly Parts Diagram

22" Recycler Walk-Behind Mower

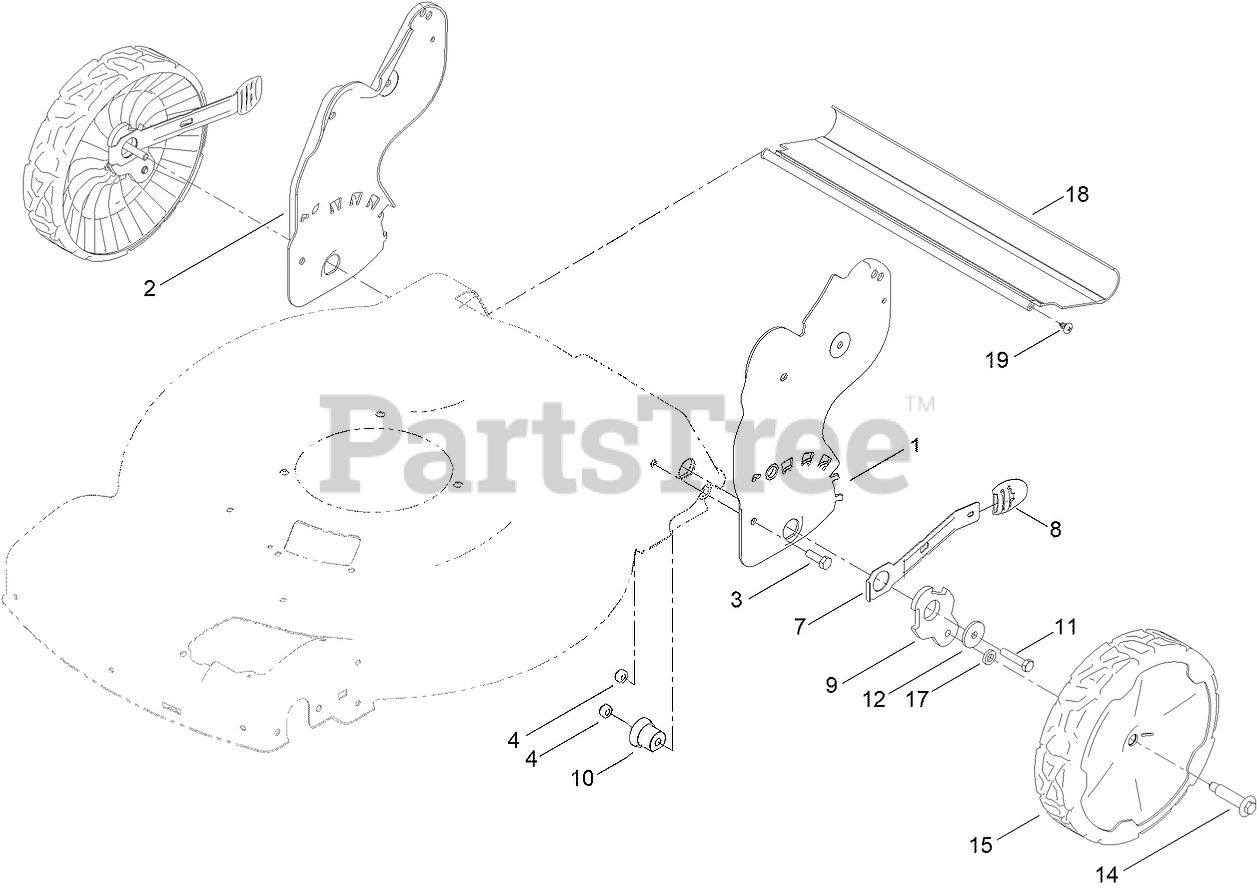

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 140-3912-05

PLATE-HOC, FWD LH

$28.99

$

Usually ships in 3-6 days

0

2

Toro 140-3913-05

PLATE-HOC, FWD RH

$28.99

$

Usually ships in 3-6 days

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 115-2899

ARM-SPRING, REAR

$12.99

$

In Stock, only 1 left!

0

8

Toro 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, Qty 5

0

9

Toro 140-3878

ARM-PIVOT, REAR

$10.99

$

In Stock, only 1 left!

0

10

Toro 131-0895

BUSHING-MOUNT, HOC

$3.49

$

In Stock, only 2 left!

0

11

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 12

0

14

Toro 139-1789

WHEEL BOLT
(Superseded to 145-3899)

$1.99

$

In Stock, Qty 5

0

15

Toro 140-2351

ASM-9.65" WHEEL, BUSHINGS

$31.99

$

In Stock, only 4 left!

0

17

Toro 139-5449

WASHER-WHEEL BOLT

$1.49

$

In Stock, Qty 10

0

18

Toro 144-6431

SHIELD-TRAILING

$15.99

$

In Stock, Qty 8

0

19

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0
