21442 - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 411820184) Handle Assembly Parts Diagram

22" Recycler Walk-Behind Mower

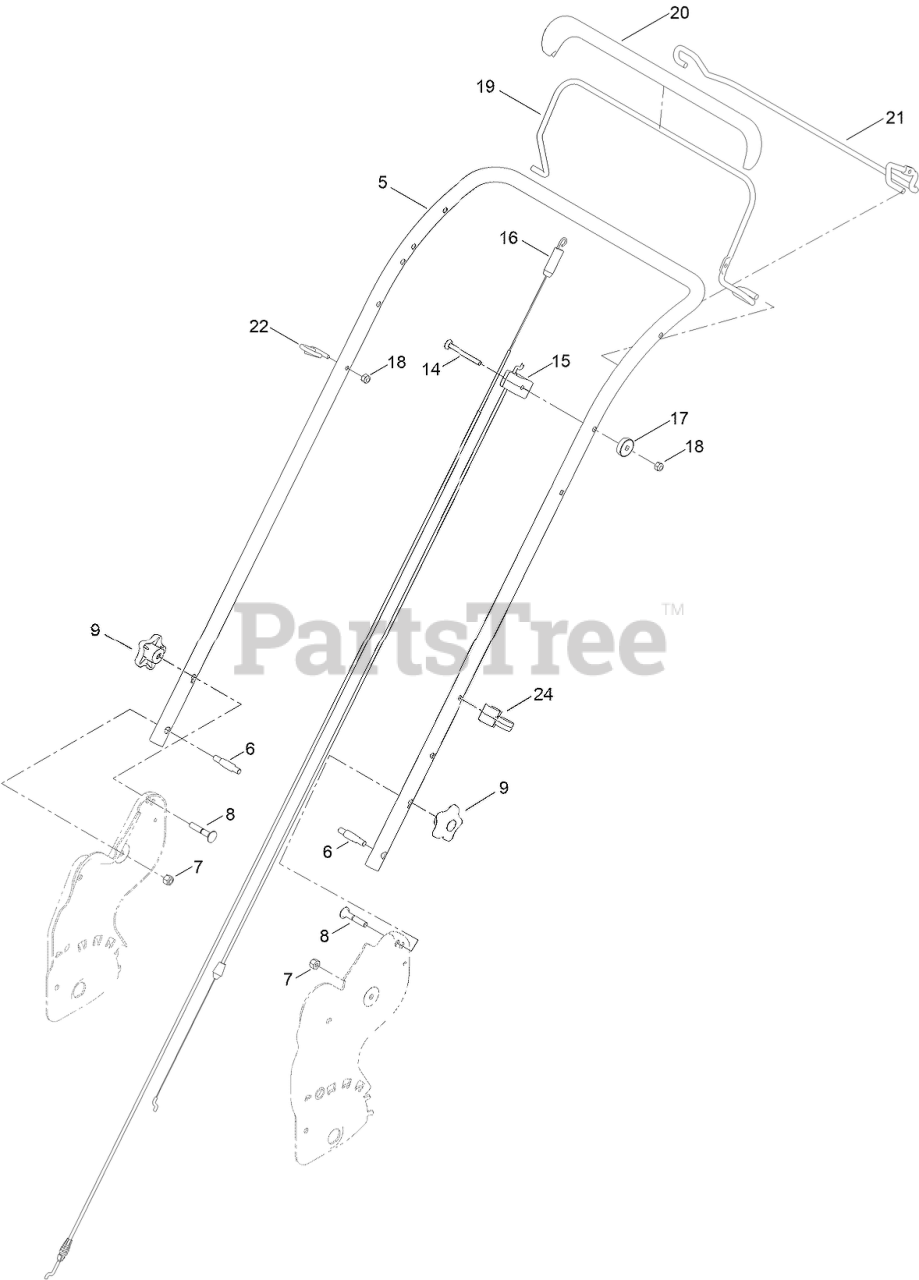

Handle Assembly Parts Diagram

  • Title
5

Toro 139-5458-05

HANDLE-CURVED

$49.99

$

In Stock, only 1 left!

0

6

Toro 139-6599

BOLT-SHOULDER, HANDLE

$1.49

$

In Stock, Qty 6

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 131-9663

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 13

0

14

Toro 144-0221

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

15

Toro 140-3948

CABLE-BRAKE, FWD

$17.99

$

In Stock, Qty 20+

0

16

Toro 140-3947

CABLE-TRACTION, FWD

$15.99

$

In Stock, Qty 20+

0

17

Toro 136-9075

WASHER-CURVED

$1.49

$

In Stock, Qty 12

0

18

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

19

Toro 140-3918-03

BAIL-BRAKE

$12.99

$

In Stock, Qty 20+

0

20

Toro 140-3879

COVER-BAIL

$4.49

$

In Stock, Qty 11

0

21

Toro 140-4024-03

BAIL-TRACTION

$10.99

$

In Stock, Qty 10

0

22

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 20+

0

24

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0
