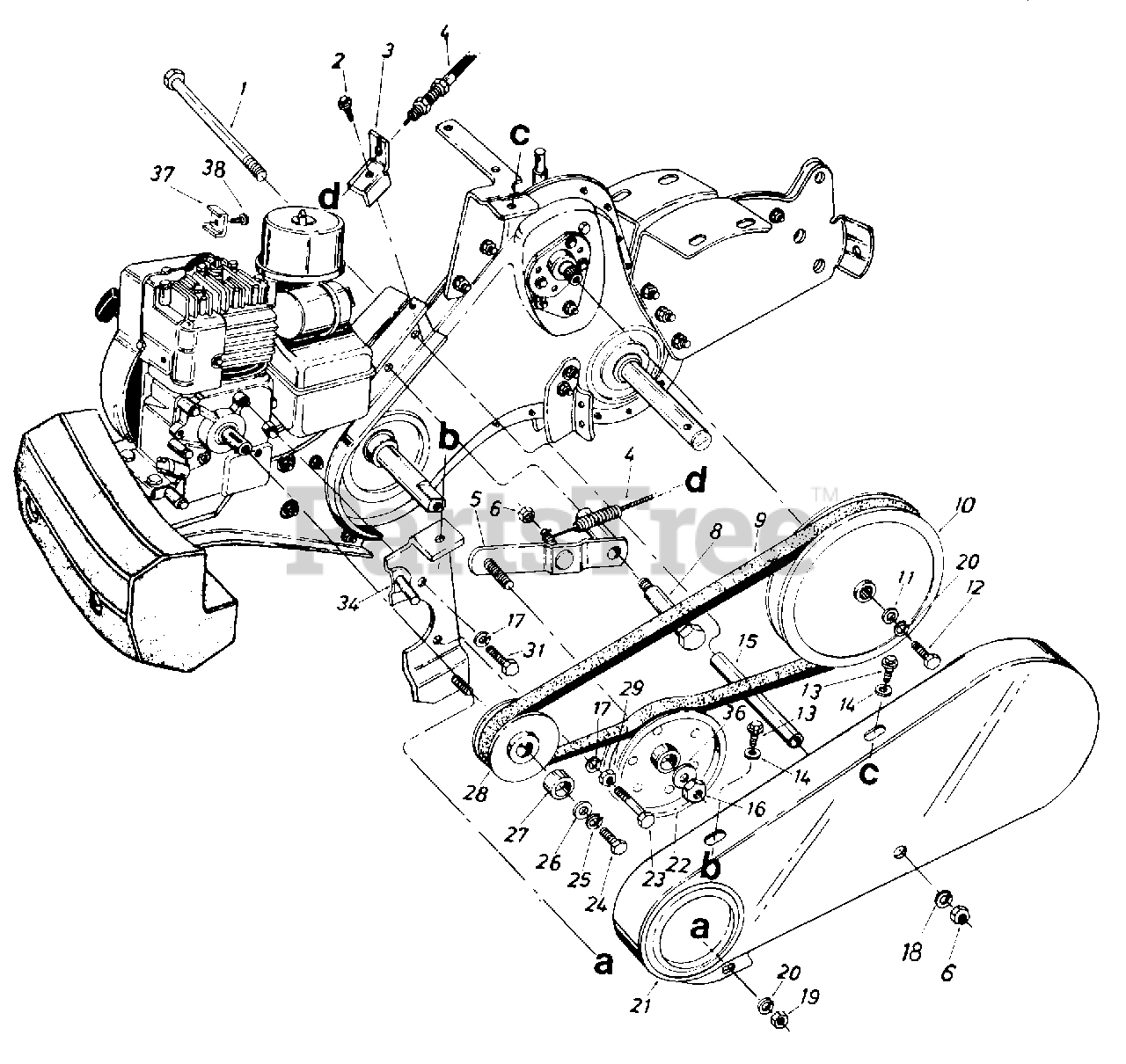

21430C - MTD Tiller (1986) Rear Parts Diagram

Tiller

Rear Parts Diagram

  • Title

1

MTD 710-0974

Hex Bolt 5/16-18 x 4.75" Lg. Gr. 2

$11.99

$

Usually ships in 3-6 days

0

2

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

3

MTD 784-0203

Bracket Clutch Cable

$

$

Not available

4

MTD 746-0612

Clutch Control Cable 53" Lg.
(Superseded to 946-0612)

$71.99

$

In Stock, only 3 left!

0

5

MTD 784-0175

Idler Bracket Ass'y.

Variations

MTD 784-0175-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

8

MTD 738-0681

Shld. Bolt .500" Dia. x 2.27"

$

$

Not available

9

MTD 754-0325

"V"-Belt 1/2" X 58.0" Lg.
(Superseded to 954-0325)

$

$

Not available

10

MTD 756-0472

"V"-Pulley Split 518" I.D.

$

$

Not available

11

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

12

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

13

MTD 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0463

Fl-Wash. .281" I.D. x .625"

$4.49

$

In Stock, Qty 20+

0

15

MTD 750-0688

Spacer 3/8" I.D. x 3.38" Lg.

$

$

Not available

16

MTD 712-0262

Hex Cent. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0123

Fl-Wash. 5/16" I.D.
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

19

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

20

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

21

MTD 784-0158

Belt Cover
(Superseded to 784-0158B)

Variations

MTD 784-0158-0637

USE 784-0158B-0638 COVER-BELT - POWDER BLACK (0637)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158-0638

USE 784-0158B-0638 COVER-BELT - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158-0483

USE 784-0158A COVER-BELT - CHARCOAL GRAY (0483)

$76.99

$

Usually ships in 3-6 days

0

MTD 784-0158-0662

COVER-BELT - OYSTER GRAY (0662)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158-0665

COVER-BELT - YARDMAN GREEN (0665)

$88.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

22

MTD 756-0405

Fl-Idler w/Flanges 3.75" O.D.

$71.99

$

Usually ships in 3-6 days

0

23

MTD 710-0409

Hex Bolt 5/16-24 x 1.75"

$4.99

$

Usually ships in 3-6 days

0

24

MTD 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

26

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.00"

$4.49

$

In Stock, only 4 left!

0

27

MTD 750-0345

Spacer .758" I.D. x .990'

$

$

Not available

28

MTD 748-0282

Engine Pulley

$

$

Not available

29

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

31

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

34

MTD 784-0197

Belt Keeper Ass'y.

Variations

MTD 784-0197-0637

No Longer Available GUIDE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.00"

$4.49

$

In Stock, only 4 left!

0

37

MTD 751-0360

Casing Clamp
(Superseded to 751B221535)

$10.99

$

In Stock, Qty 10

0

38

MTD 710-0899

Hex Sems Scr. #10-32 x .62"
(Superseded to 710-0899A)

$6.99

$

Usually ships in 3-6 days

0
