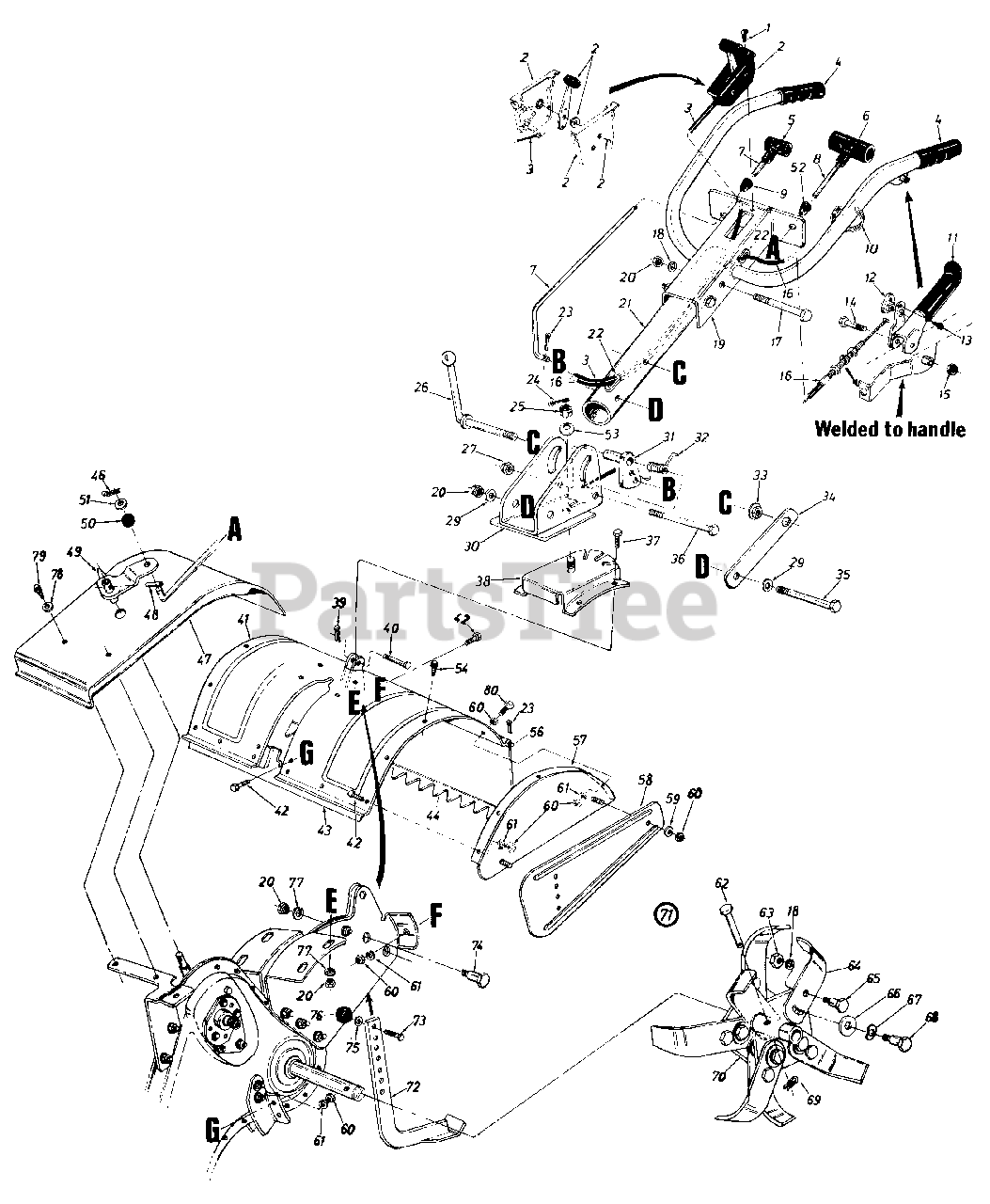

21430-9 - MTD Tiller (1989) Rear Parts Diagram

Tiller

Rear Parts Diagram

  • Title

1

MTD 710-0779A

Truss Mach. AB-Tap. Scr. #10 x .50" Lg.

$4.49

$

In Stock, Qty 12

0

2

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

3

MTD 746-0513

Throttle Control Wire
(Superseded to 946-0513B)

$19.99

$

In Stock, only 3 left!

0

4

MTD 720-0180

Handle Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

5

MTD 720-0210A

Small "T" Knob

$15.99

$

In Stock, only 2 left!

0

6

MTD 720-0209

Large"T" Knob

$21.99

$

In Stock, only 2 left!

0

7

MTD 747-0666

Clutch Rod

$25.99

$

Usually ships in 3-6 days

0

8

MTD 747-0664

Control Rod 37" Lg.

$23.99

$

Usually ships in 3-6 days

0

9

MTD 735-0228

Snap On Bushing 3/8" Dia.

$

$

Not available

10

MTD 725-0157

Cable Tie-Self Clinching

$3.99

$

In Stock, Qty 20+

0

11

MTD 784-0202

Clutch Grip Ass'y. L.H.
(Superseded to 684-04399A-0637)

$33.99

$

In Stock, only 4 left!

0

12

MTD 746-0605

Barrel Cable Hold Down
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 8

0

14

MTD 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0266

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

16

MTD 746-0612

Clutch Control Cable 53" Lg.
(Superseded to 946-0612)

$71.99

$

In Stock, only 3 left!

0

17

MTD 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.

$

$

Not available

18

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

19

MTD 784-0185

Handle Ass'y.
(Superseded to 649-0030-0638)

Variations

MTD 784-0185-0638

HANDLE ASM W/THROTTLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0185-0665

HANDLE ASM W/THROTTLE - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

21

MTD 784-0189

Handle Tubing Ass'y.

Variations

MTD 784-0189-0480

TUBING ASSY HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 784-0189-0498

TUBE ASM-HNDL - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0189-0637

TUBE ASM-HNDL - POWDER BLACK (0637)

$

$

Not available

MTD 784-0189-0638

TUBE ASM-HNDL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0189-0648

TUBE ASM-HNDL - TECH GRAY (0648)

$

$

Not available

MTD 784-0189-0650

TUBE ASM-HNDL - RED METALLIC (0650)

$

$

Not available

MTD 784-0189-0662

TUBE ASM-HNDL - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0189-0665

TUBE ASM-HNDL - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-0189-0691

TUBE ASM-HNDL - BLACK JACK (0691)

$

$

Not available

MTD 784-0189-4015

TUBING ASSY HANDLE - FIRE RED (4015)

$

$

Not available

$

$

22

MTD 735-0226

Rubber Grommet .66" I.D.

$10.99

$

Usually ships in 3-6 days

0

23

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

24

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.25" Lg.

$4.99

$

In Stock, Qty 13

0

25

MTD 712-0386A

I lex Slotted Nut 5/8-18 Thd.

$7.99

$

Usually ships in 3-6 days

0

26

MTD 784-0190

Handle Adj. Crank

$24.99

$

Usually ships in 3-6 days

0

27

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

29

MTD 736-0105

Bell-Wash. .4" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 784-0182

HandlePivot Bracket
(Superseded to 684-0263A-0637)

$

$

Not available

31

MTD 784-0183

Positioner Crank Ass'y.

$

$

Not available

32

MTD 732-0493

Spring Handle Adj.

Note: (Torsion)

$16.99

$

Usually ships in 3-6 days

0

33

MTD 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

34

MTD 784-0191

Bracket Hex Nut Retainer

$7.49

$

Usually ships in 3-6 days

0

35

MTD 710-0644

Hex Bolt 3/8-16 x 3.25" Lg.
(Superseded to 710-3130)

$10.99

$

In Stock, only 1 left!

0

36

MTD 710-0521

Hex Bolt 3/8-16 x 3.00" Lg. Gr. 8

$5.49

$

In Stock, Qty 11

0

37

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

38

MTD 784-0181A

Handle Positioner Brkt. Ass'y.
(Superseded to 686-0071)

Variations

MTD 784-0181A-0480

BRACKET ASSY-POSITIONER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 784-0181A-0483

BRACKET ASSY-POSITIONER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0181A-0498

BRACKET ASSY-POSITIONER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0181A-0637

BRACKET ASSY-POSITIONER - POWDER BLACK (0637)

$

$

Not available

MTD 784-0181A-0638

BRACKET ASSY-POSITIONER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0181A-0662

BRACKET ASSY-POSITIONER - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0181A-0665

BRACKET ASSY-POSITIONER - YARDMAN GREEN (0665)

$

$

Not available

$

$

39

MTD 714-0145

Intern. Cotter Pin

$4.99

$

In Stock, Qty 20+

0

40

MTD 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

41

MTD 784-0156

Tine Shield 18"

Variations

MTD 784-0156-0483

No Longer Available SHIELD-TIN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0156-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0156-0499

No Longer Available SHIELD-TIN - CUB BEIGE (0499)

$

$

Not available

MTD 784-0156-0637

No Longer Available SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

MTD 784-0156-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0156-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0156-0665

No Longer Available SHIELD-TIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

43

MTD 784-0210

Bracket Reinforcement 18"

$

$

Not available

44

MTD 14979

Tine Shield Hinge Flap
(Superseded to 786-0113)

Variations

MTD 14979-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$90.99

$

In Stock, only 4 left!

0

MTD 14979-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

MTD 14979-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

MTD 14979-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

MTD 14979-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

MTD 14979-0606

No Longer Available SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 14979-0662

No Longer Available SHIELD - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

46

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

47

MTD 784-0208A

Shift Cover
(Superseded to 784-0208C)

Variations

MTD 784-0208A-0637

USE 784-0208C COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

MTD 784-0208A-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0208A-0648

USE 784-0208C COVER-SHIFT - TECH GRAY (0648)

$

$

Not available

MTD 784-0208A-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

$

$

48

MTD 715-0120

Spring Roll Pin 3/16" Dia.

$10.99

$

In Stock, only 1 left!

0

49

MTD 784-0173

Shifting Crank Ass'y.

$

$

Not available

50

MTD 735-0127

Rubber Washer .33" I.D.

$6.99

$

Usually ships in 3-6 days

0

51

MTD 736-0133

Fl-Wash. .4" I.D. x 1.25" O.D.

$5.49

$

In Stock, Qty 7

0

52

MTD 735-0227

Snap On Bushing 1/2" Dia.

$

$

Not available

53

MTD 736-0317

Bell-Wash. .63" I.D. x 1.25"

$7.99

$

In Stock, Qty 20+

0

54

MTD 710-0607

Hex Wash. Tap Scr.

$6.99

$

In Stock, Qty 11

0

56

MTD 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

57

MTD 784-0179

End Cover Ass'y.
(Superseded to 984-0179A-0637)

Variations

MTD 784-0179-0498

COVER ASSY END - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0179-0637

COVER ASSY END - POWDER BLACK (0637)

$

$

Not available

$

$

58

MTD 15390

Side Shield

Variations

MTD 15390-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 15390-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15390-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 15390-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 15390-0637

No Longer Available SHIELD-SID - POWDER BLACK (0637)

$

$

Not available

MTD 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15390-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 15390-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 15390-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 15390-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

59

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

60

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

61

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

MTD 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

63

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

64

MTD 742-0305

13" Dia. Articulating Tine
(Superseded to 742-0305A-0637)

Variations

MTD 742-0305-0637

Articulating Tine, Black - POWDER BLACK (0637)

$20.99

$

In Stock, Qty 20+

0

$20.99

$

In Stock, Qty 20+

0

65

MTD 738-0689

Shld. Bolt 1/2" Dia. x .175
(Superseded to 938-0689)

$8.99

$

In Stock, only 2 left!

0

66

MTD 736-0208

Fl-Wash. .51" I.D. x 1.50"

$4.49

$

In Stock, Qty 9

0

67

MTD 736-0255

Bell-Wash. .515" I.D. x 1.14"

$4.99

$

In Stock, only 3 left!

0

68

MTD 738-0688

Shld. Bolt 1/2" Dia. x .320
(Superseded to 938-0688)

$9.99

$

In Stock, Qty 15

0

69

MTD 714-0149B

Intern. Cotter Pin

$4.49

$

In Stock, Qty 18

0

70

MTD 784-0160

Tine Adapter Ass'y. 18"
(Superseded to 784-0160-0637)

Variations

MTD 784-0160-0637

Tine Adapter Assembly, Black - POWDER BLACK (0637)

$115.99

$

In Stock, only 3 left!

0

$115.99

$

In Stock, only 3 left!

0

71

MTD 784-0205

Tine Ass'y. Comp. 18"
(Superseded to 984-0205A-0637)

Variations

MTD 784-0205-0637

Tine Assembly, Articulating - POWDER BLACK (0637)

$215.99

$

In Stock, only 2 left!

0

$215.99

$

In Stock, only 2 left!

0

72

MTD 14992

Depth Bar Ass'y.
(Superseded to 786-0120-0637)

Variations

MTD 14992-0637

Depth Bar Assembly - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

73

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

74

MTD 738-0148

Shld. Bolt 1/2" I.D. x .62" Lg.
(Superseded to 938-0148)

$16.99

$

Usually ships in 3-6 days

0

75

MTD 736-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

76

MTD 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

77

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

78

MTD 736-0463

Fl-Wash. .281" I.D. x .62"

$4.49

$

In Stock, Qty 12

0

79

MTD 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 X :50" Lg.

$4.49

$

In Stock, Qty 20+

0

80

MTD 710-0528

Hex Bolt 5/16-18 x 11/4" Lg.

$4.49

$

In Stock, Qty 20+

0
