21400 - Snapper 21" Walk-Behind Mower, 4hp Handles, Controls Hand Propelled (Except Commercial) Parts Diagram

21" Walk-Behind Mower, 4hp

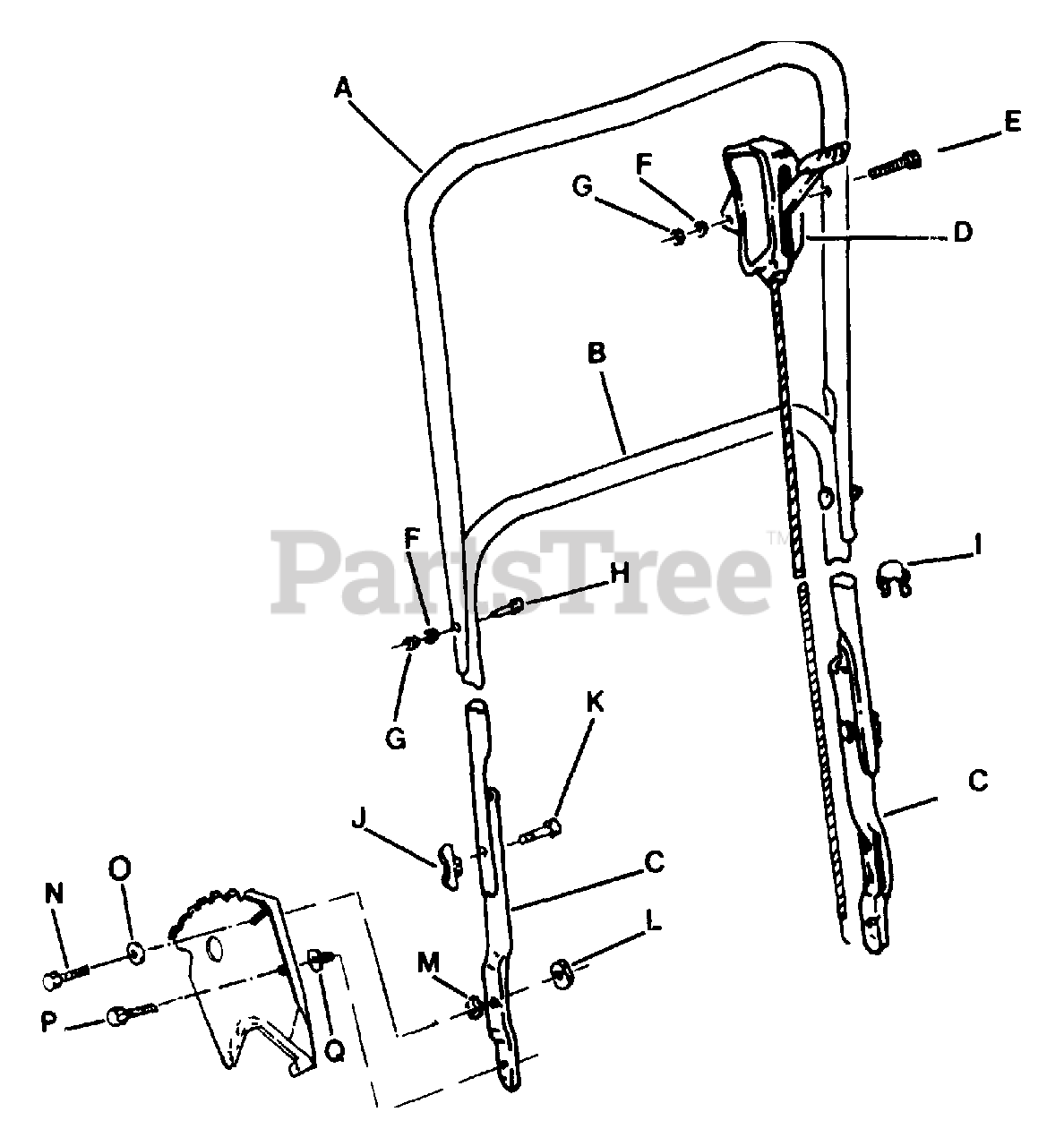

Handles, Controls Hand Propelled (Except Commercial) Parts Diagram

  • Title
A

Snapper 7033444

HANDLE, UPPER

Note: Was 39601

$

$

Not available

B

Snapper 7036037

HANDLE, MIDDLE

Note: Was 37331

$

$

Not available

C

Snapper 7038209

HANDLE, LOWER

Note: Was 37333

$

$

Not available

D

Snapper 7018186

CONTROL, THROTTLE 46.5" (BRIGGS - STRATTON ENGINE)
(Superseded to 7018186YP)

$69.99

$

Usually ships in 2-12 days

0

D

Snapper 7018187

CONTROL, THROTTLE 42.5" (TECUMSEH ENGINE)
(Superseded to 7018187YP)

$23.99

$

Usually ships in 2-12 days

0

E

Snapper 7090111

SCREW, HEX HEAD CAP 1/4-28 x 1 3/4

$2.99

$

In Stock, only 3 left!

0

F

Snapper 7090053

WASHER, INTERNAL TOOTH LOCK 1/4
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

G

Snapper 7090095

NUT, HEX 1/4-28
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

H

Snapper 7090529

SCREW, HEX HEAD CAP 1/4-28 x 1 1/4
(Superseded to 7090529YP)

$4.49

$

Usually ships in 2-12 days

0

I

Snapper 7023813

CLIP, THROTTLE CONTROL
(Superseded to 7023813SM)

Note: Was 10098

$3.49

$

In Stock, Qty 20+

0

J

Snapper 7015693

NUT, WING
(Superseded to 014X79MA)

Note: Was 50615

$4.99

$

Usually ships in 2-12 days

0

K

Snapper 7090015

BOLT, CARRIAGE 1/4-20 x 1 3/4
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

L

Snapper 7010974

NUT, WELD 5/16-24
(Superseded to 7010974YP)

$3.49

$

Usually ships in 2-12 days

0

M

Snapper 7090189

WASHER, INT/EXT TOOTH LOCK 5/16
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

N

Snapper 7090233

SCREW, HEX HEAD CAP 5/16-24 x 3/4
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

O

Snapper 7090188

WASHER, FLAT SAE 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

P

Snapper 7090204

SCREW, HEX HEAD CAP 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

Q

Snapper 7090895

NUT, TEE 5/16-18
(Superseded to 7090895YP)

Note: Was 90733

$3.49

$

Usually ships in 2-12 days

0
