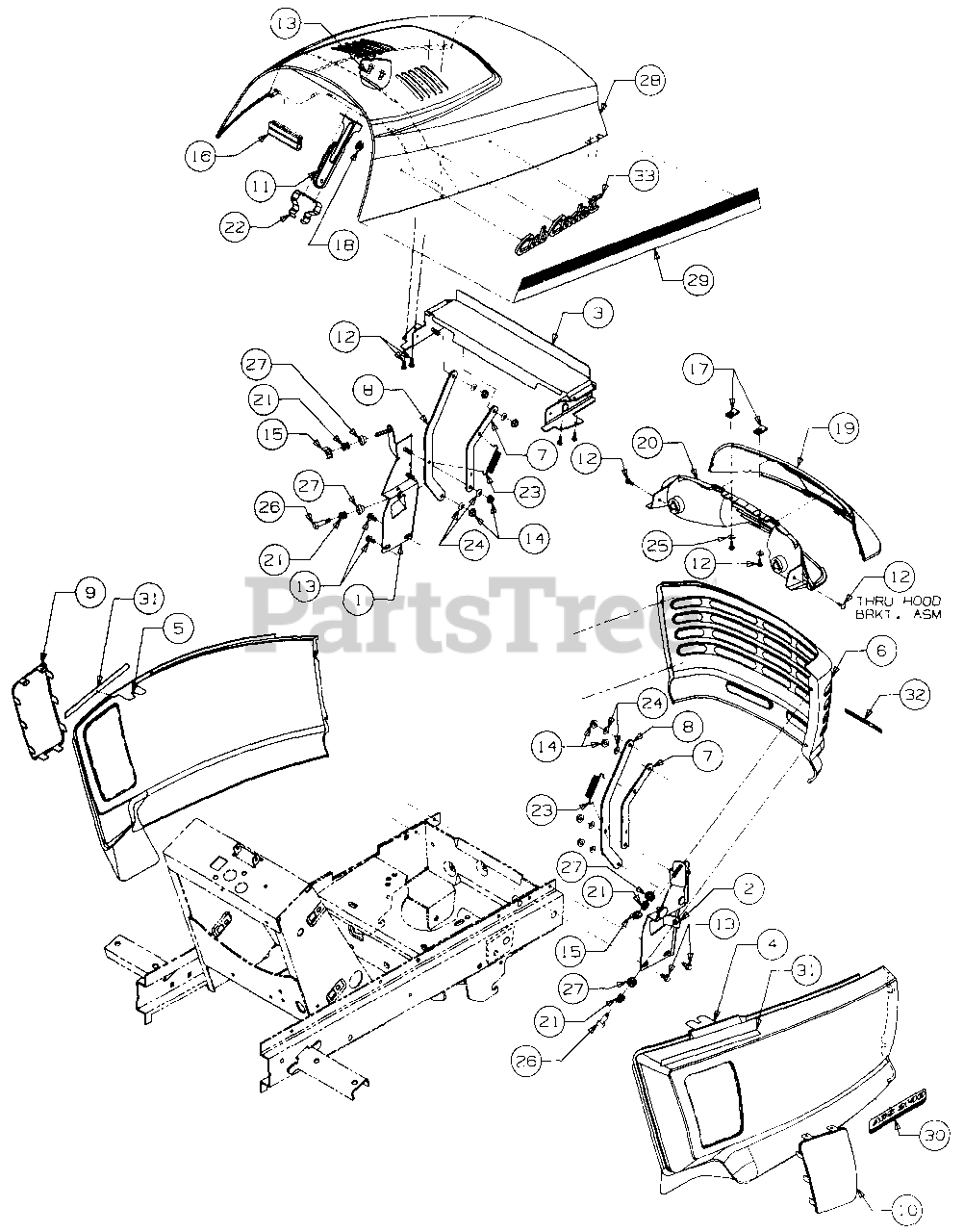

2140 (135-232G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Grille, Hood and Side Panels Parts Diagram

Garden Tractor

Grille, Hood and Side Panels Parts Diagram

  • Title

1

Cub Cadet 603-0211

Bracket, Grille LH

$

$

Not available

2

Cub Cadet 603-0212

Bracket, Grille RH
(Superseded to 603-0212A)

$

$

Not available

3

Cub Cadet 603-0262

Bracket, Upper Hood
(Superseded to 603-04191-0499)

Variations

Cub Cadet 603-0262-0499

Hood Bracket Assembly - CUB BEIGE (0499)

$

$

Not available

$

$

4

Cub Cadet 703-2396

Panel, RH Side
(Superseded to 703-2396-0499)

Variations

Cub Cadet 703-2396-0499

Side Panel R/H - CUB BEIGE (0499)

$260.99

$

Usually ships in 3-6 days

0

$260.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-2397

Panel, LH Side
(Superseded to 703-2397-0499)

Variations

Cub Cadet 703-2397-0499

SIDE PANEL L/H - CUB BEIGE (0499)

$

$

Not available

$

$

6

Cub Cadet 703-2398

Grille
(Superseded to 703-2398-0499)

Variations

Cub Cadet 703-2398-0499

Grille - CUB BEIGE (0499)

$159.99

$

Usually ships in 3-6 days

0

$159.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2465

Link, Short Hood

Variations

Cub Cadet 703-2465-0637

Hood Link - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2466

Link, Long Hood
(Superseded to 703-2466B)

$

$

Not available

9

Cub Cadet 703-2495

Screen, LH Panel

Variations

Cub Cadet 703-2495-0499

SCREEN (LH) PANEL - CUB BEIGE (0499)

$

$

Not available

$

$

10

Cub Cadet 703-2496

Screen, RH Panel
(Superseded to 703-2496-0499)

Variations

Cub Cadet 703-2496-0499

PANEL SCREEN (RH) - CUB BEIGE (0499)

$

$

Not available

$

$

11

Cub Cadet 703-2612

Guide, Hood

$

$

Not available

12

Cub Cadet 710-0351

Screw, Truss Mach Tapp, #10 x .50 Lg

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0559

Screw, Hex Wash Tapp, 1/4 x .50 Lg

$

$

Not available

14

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 723-3059

Seal, Heat Baffle

$21.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 726-0139

Nut, U-Type Speed, #10

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 726-3047

Retainer, Push Nut
(Superseded to 926-3047)

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 731-3138

Lens, Cub Cadet
(Superseded to 759-3947)

$179.99

$

In Stock, only 3 left!

0

20

Cub Cadet 731-3150

Reflector, Headlight
(Superseded to 759-3947)

$179.99

$

In Stock, only 3 left!

0

21

Cub Cadet 732-0334

Spring, Compression, .50 OD x .50 Lg

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 732-3116

Spring, Hood Latch

$

$

Not available

23

Cub Cadet 732-3121

Spring, Extension, .50 OD x 2.25 Lg

$

$

Not available

24

Cub Cadet 736-0175

Washer, Spring, .265 x .562 x .025 Thk
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

25

Cub Cadet 736-0400

Washer, Flat, .218 x .62 x .063 Thk

$5.49

$

In Stock, Qty 11

0

26

Cub Cadet 738-3141

Bolt, Shoulder, .31 Dia x .75 Lg

$5.49

$

In Stock, Qty 20+

0

27

Cub Cadet 748-3055

Bushing, Tapered
(Superseded to 948-3055)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 759-3747

Hood, Series 2000
(Superseded to 759-3747B)

Variations

Cub Cadet 759-3747-0499

HOOD-ASSEMBLY 15/20 - CUB BEIGE (0499)

$

$

Not available

$

$

29

Cub Cadet 777-1702

Graphic, Hood RH

$

$

Not available

Cub Cadet 777-1701

Graphic, Hood LH

Note: (Not shown)

$

$

Not available

30

Cub Cadet 777-1706

Graphic, AGS 2140

$

$

Not available

31

Cub Cadet 777-2276A

Strip, Protective
(Superseded to 777X40079)

$

$

Not available

32

Cub Cadet 777-2283

Graphic, Warning Hot
(Superseded to 777I20314)

$

$

Not available

33

Cub Cadet 779-3536

Script w/Studs, Cub Cadet
(Superseded to 979-3536)

$15.99

$

In Stock, Qty 7

0
