2140 (135-232G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Gearcase Parts Diagram

Garden Tractor

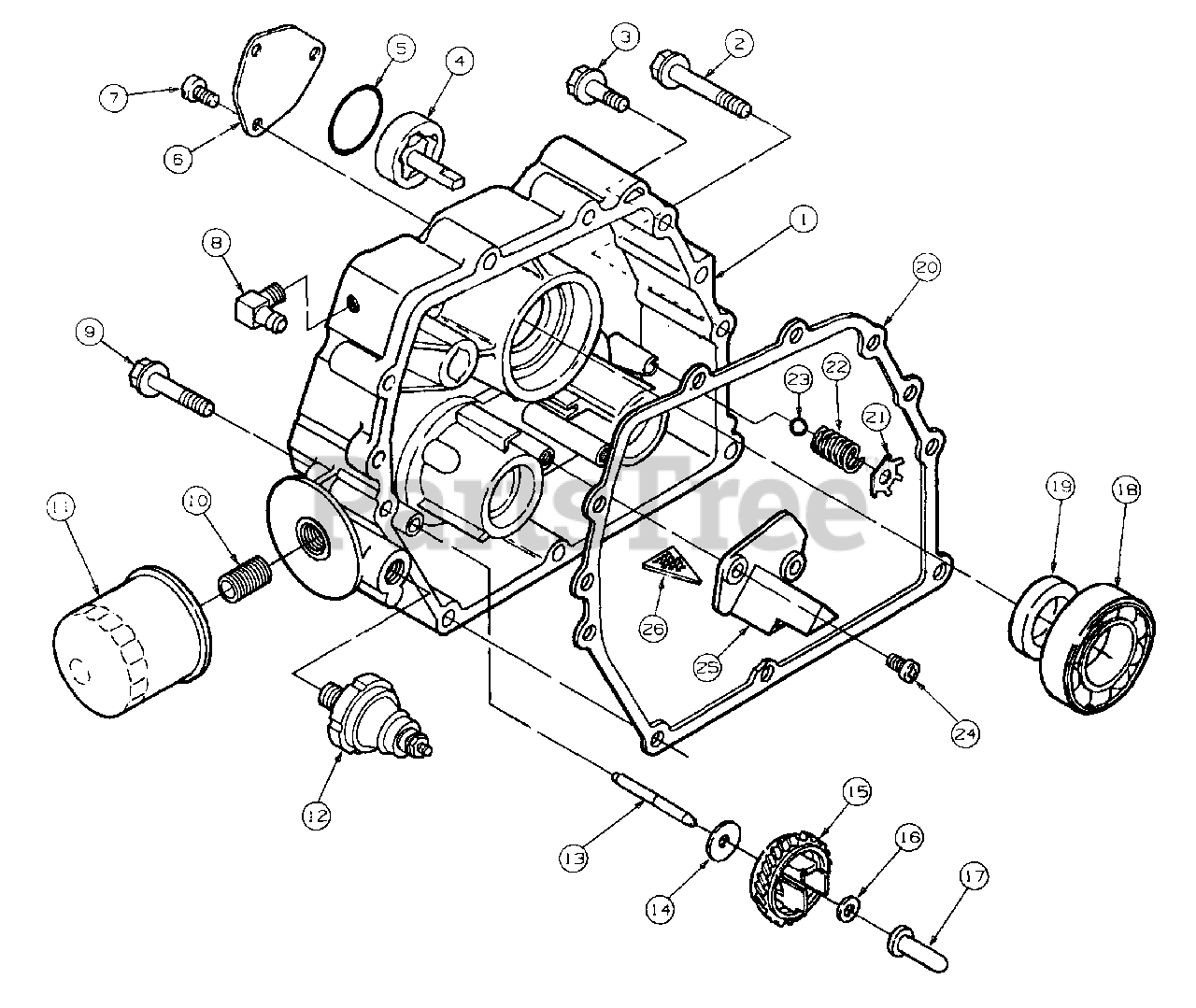

Gearcase Parts Diagram

  • Title

1

Cub Cadet ME-103-0820

Gearcase

$

$

Not available

2

Cub Cadet ME-815-0829-03

Screw, Hex Head Flanged, Thread Forming, M8 x 1.25 x 70 mm

$

$

Not available

3

Cub Cadet ME-815-0829-01

Screw, Hex Head Flanged, Thread Forming, M8 x 1.25 x 35 mm

$

$

Not available

4

Cub Cadet ME-120-1313

Pump Assy, Oil

$

$

Not available

5

Cub Cadet ME-509-0253

O-Ring

$

$

Not available

6

Cub Cadet ME-120-1299-02

Cover, Oil Pump M6 x 1 x 14 mm

$

$

Not available

7

Cub Cadet ME-823-0003-05

Screw, Pan Head Torx Drive
(Superseded to ME-823-0003-02)

$

$

Not available

8

Cub Cadet ME-502-0313

Elbow, Hose, 90°.

$

$

Currently unavailable

9

Cub Cadet ME-815-0829-02

Screw, Hex Head Flanged, Thread Forming, M8 x 1.25 x 50 mm

$

$

Not available

10

Cub Cadet ME-122-0475

Adapter, Oil Filter

$

$

Not available

11

Cub Cadet ME-122-0737-02

Filter, Oil

$40.99

$

Usually ships in 3-6 days

0

12

Cub Cadet ME-309-0640

Switch, Oil Pressure

$

$

Not available

13

Cub Cadet ME-775-0069

Shaft, Governor

$

$

Not available

14

Cub Cadet ME-526-2078

Washer, Flat, 6.2 mm ID x 18 mm OD x 1 mm Thk

$

$

Not available

15

Cub Cadet ME-150-2272

Gear, Governor

Note: includes & weights

$134.99

$

Usually ships in 3-6 days

0

16

Cub Cadet ME-150-2547

Retainer, Governor Gear

$

$

Not available

17

Cub Cadet ME-150-2530

Sleeve, Governor
(Superseded to ME-150-2754)

$

$

Not available

18

Cub Cadet ME-510-0160

Bearing, Crankshaft

$

$

Not available

19

Cub Cadet ME-509-0258

Seal, Crankshaft Oil

$

$

Not available

20

Gasket, Gearcase

Note: (Included in Gasket Set)

$

$

Not available

21

Cub Cadet ME-518-0560

Ring, Retaining

$

$

Not available

22

Cub Cadet ME-120-0140

Spring, Relief Valve

$

$

Not available

23

Cub Cadet ME-510-0043

Ball, Steel, 5/16 OD

$

$

Not available

24

Cub Cadet ME-823-0003-02

Screw, Torx Drive Pan Head, M6 x 1 x 14 mm

$

$

Not available

25

Cub Cadet ME-120-1295

Tube, Oil Pickup

$

$

Not available

26

Cub Cadet ME-120-1298

Screen, Oil Pickup

$

$

Not available

Cub Cadet ME-102-1441

Gasket Set

$

$

Not available
