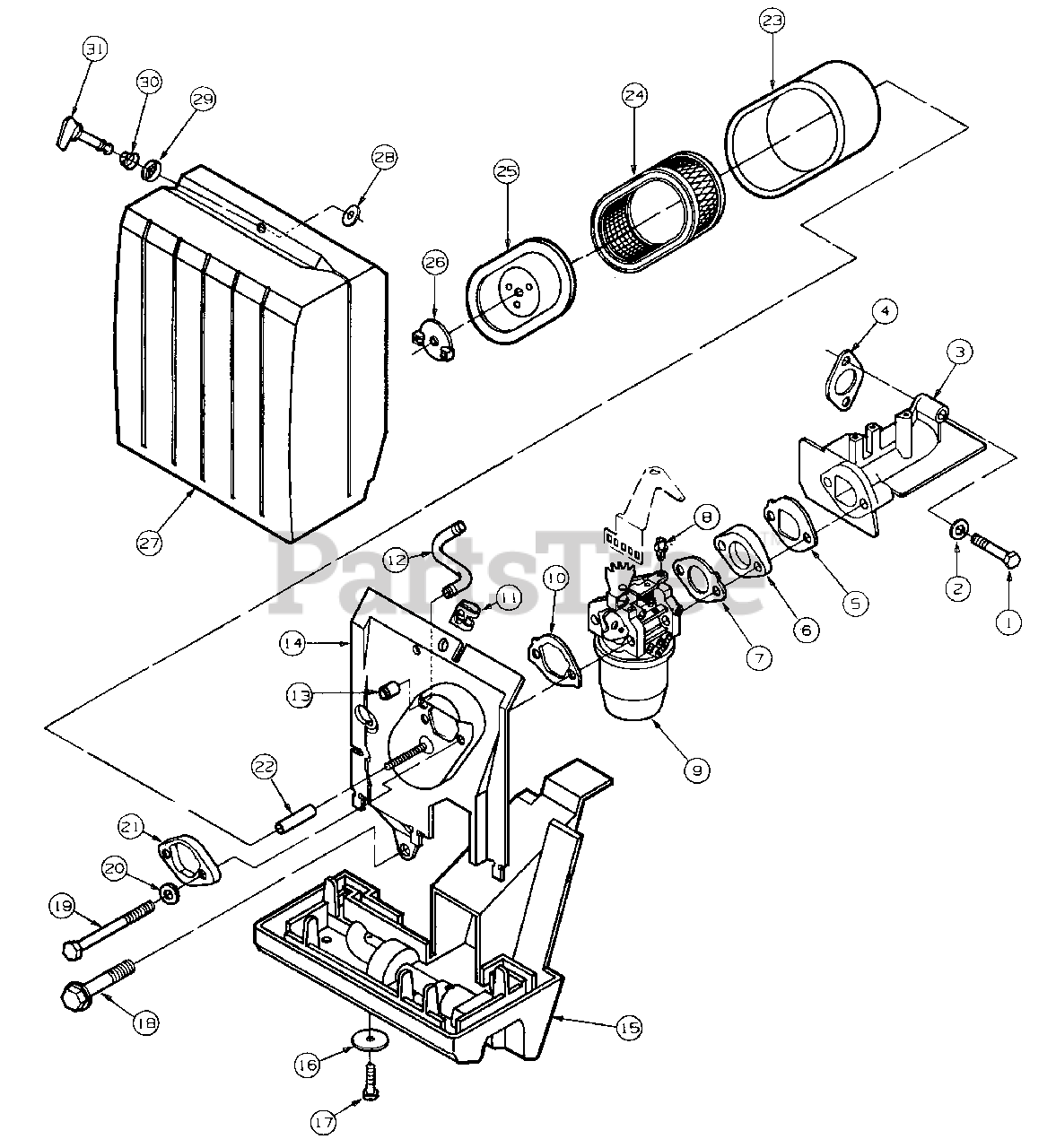

2140 (135-232G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Carburetor Parts Diagram

Garden Tractor

Carburetor Parts Diagram

  • Title
1

Cub Cadet ME-800-2063

Screw, Hex Head Cap M8 x 1.25 x 50 mm

$

$

Not available

2

Cub Cadet ME-526-0115

Washer, Flat, M8

$

$

Not available

3

Cub Cadet ME-154-2871

Elbow, Intake

$

$

Not available

4

Gasket, Intake

Note: (Included in Gasket Set)

$

$

Not available

5

Gasket, Insulator

Note: (Included in Gasket Set)

$

$

Not available

6

Cub Cadet ME-146-0532

Insulator, Carburetor

$

$

Not available

7

Gasket, Insulator

Note: (Included in Gasket Set)

$

$

Not available

8

$

$

Not available

9

Cub Cadet ME-146-0594

Carburetor
(Superseded to ME-146-0701)

Note: (Used on engines w/factory code 11187)

$653.99

$

Usually ships in 3-6 days

0

Cub Cadet ME-146-0701

Carburetor

Note: (Used on engines w/factory code 11317)

$653.99

$

Usually ships in 3-6 days

0

10

Gasket, Air Cleaner

Note: (Included in Gasket Set)

$

$

Not available

11

Cub Cadet ME-406-0747

Receptacle, Fastener

$

$

Not available

12

Cub Cadet ME-123-2031

Tube, Breather

$

$

Not available

$

$

Not available

14

Cub Cadet ME-140-2765-02

Pan Assy, Air Cleaner

$

$

Not available

15

Cub Cadet ME-140-2758

Duct, Air Inlet

$

$

Not available

16

Cub Cadet ME-526-0408

Washer, Fender (Special)

$

$

Not available

17

Cub Cadet ME-815-0527

Screw, Pan Head, Thread Forming, #10-16 x 1/2

$

$

Currently unavailable

18

Cub Cadet ME-815-0829-04

Screw, Hex Head Flange, Thread Forming, M8 x 1.25 x 16 mm

$

$

Not available

19

Cub Cadet ME-815-0816-01

Screw, Hex Head, Thread Forming, M6 x 1 x 90 mm

$

$

Not available

20

Cub Cadet ME-740-1004

Washer, Flat, M6

$

$

Not available

21

Cub Cadet ME-145-0694

Support, Carburetor

$

$

Not available

22

Cub Cadet ME-140-2536-05

Seal, Air Cleaner Spacer .625

$

$

Not available

23

Cub Cadet ME-140-2748

Wrapper, Air Filter
(Superseded to ME-140-2748-01)

$

$

Not available

24

Cub Cadet ME-140-2672

Filter, Air
(Superseded to ME-140-3010)

$

$

Not available

25

Cub Cadet ME-140-2674-01

Cover, Air Filter

$

$

Not available

26

Cub Cadet ME-865-0029

Nut, Wing, 1/4-20

$

$

Not available

27

Cub Cadet ME-140-2749

Cover, Air Cleaner

$

$

Not available

28

Cub Cadet ME-406-0749

Washer, Nylon (Special)

$

$

Not available

29

$

$

Not available

$

$

Not available

31

Cub Cadet ME-406-0748

Fastener, 1/4 Turn

$41.99

$

Usually ships in 3-6 days

0

$

$

Currently unavailable
