2140 (134-232G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Starter Components Parts Diagram

Garden Tractor

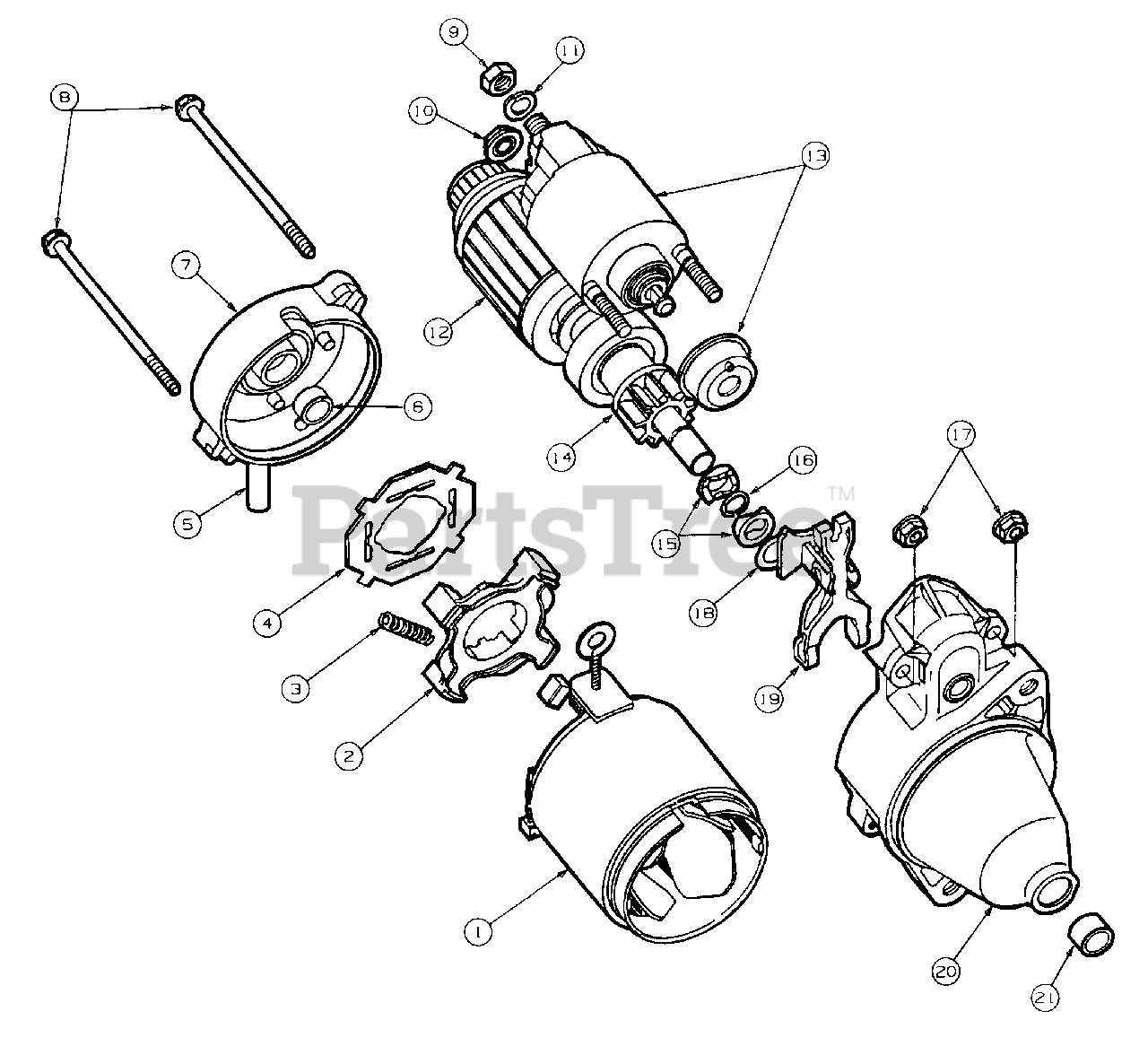

Starter Components Parts Diagram

  • Title

$

$

Not available

1

Cub Cadet ME-185-2659

Frame, Starter

$

$

Not available

2

Cub Cadet ME-185-2661

Holder, Brush

$

$

Not available

3

Cub Cadet ME-185-2662

Spring, Brush

$

$

Not available

4

$

$

Not available

$

$

Not available

6

Cub Cadet ME-185-2663

Bearing, Oilless

$

$

Not available

7

Cub Cadet ME-185-6383

Frame Assy, End

Note: (Includes Ref No. 5 & 6)

$

$

Not available

8

Cub Cadet ME-185-2660

Bolt, Through

$

$

Not available

$

$

Not available

$

$

Not available

11

Cub Cadet ME-185-2381

Washer, Spring

$

$

Not available

12

Cub Cadet ME-185-6381

Armature, Starter

$

$

Not available

13

Cub Cadet ME-185-2658

Switch, Magnetic

$

$

Not available

14

Cub Cadet ME-185-6382

Clutch, Sub

$

$

Not available

15

Cub Cadet ME-185-6385

Nut, Pinion Stop

$

$

Not available

16

$

$

Not available

$

$

Not available

18

Cub Cadet ME-185-6387

Washer, Plate

$

$

Not available

19

Cub Cadet ME-185-2656

Lever, Starter Drive

$

$

Not available

20

Cub Cadet ME-185-2706

Housing, Starter

$

$

Not available

21

Cub Cadet ME-185-6384

Bearing, Oilless

$

$

Not available
