2140 (134-232G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Fender and Running Board Parts Diagram

Garden Tractor

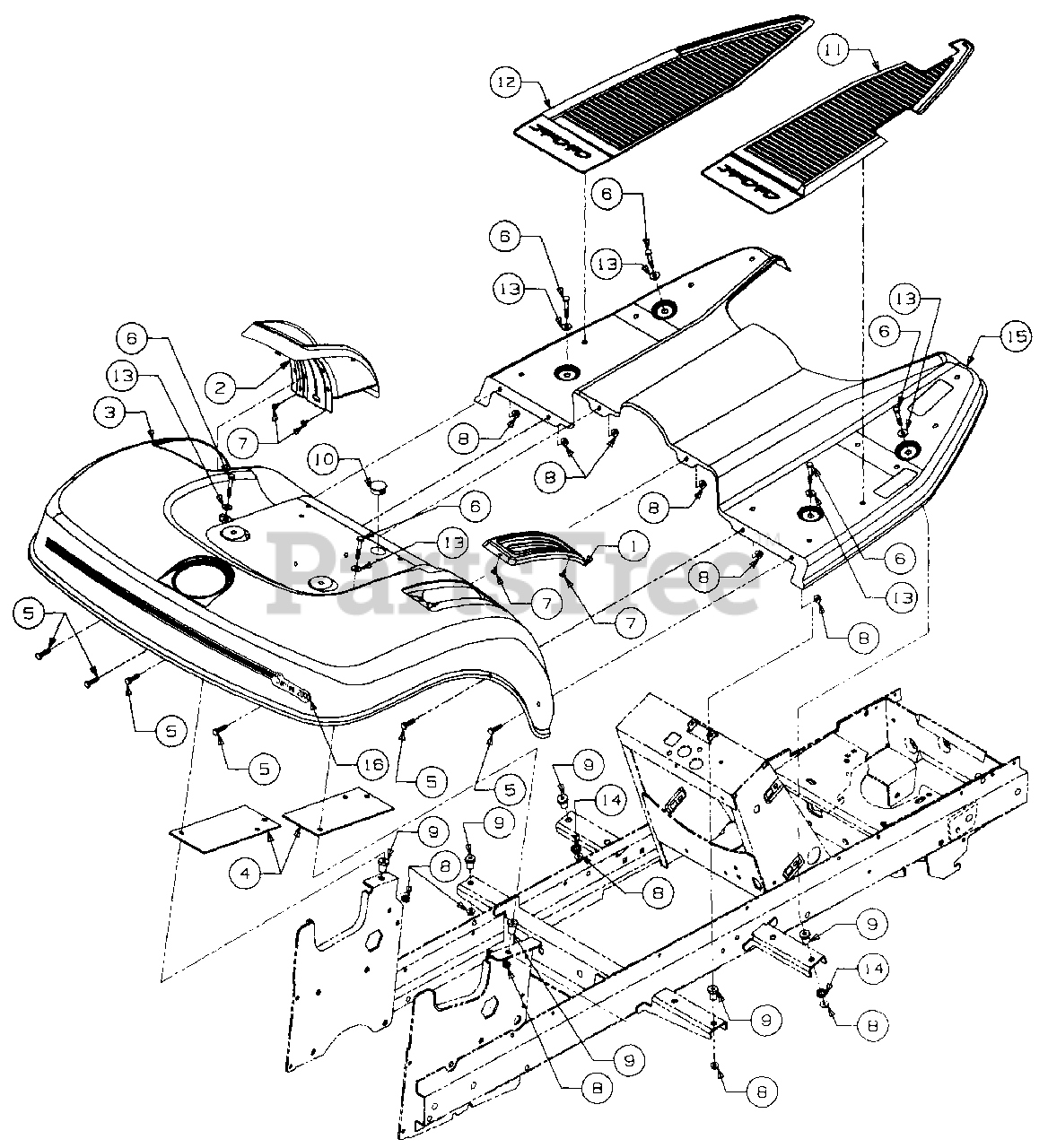

Fender and Running Board Parts Diagram

  • Title

1

Cub Cadet 631-3000

Cover, 6-Speed Shifter

$

$

Not available

2

Cub Cadet 631-3002

Cover, Implement Lift

$68.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2278

Fender

$

$

Currently unavailable

4

Cub Cadet 703-2628B

Plate, Fender Reinforcement

$

$

Currently unavailable

5

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 x .62 Lg
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 x 1.5 Lg

$5.49

$

In Stock, Qty 10

0

7

Cub Cadet 710-1268

Screw, Hex Tapp, #10 x .38 Lg

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 722-3023

Insolater, .50 OD x .88 Lg

$

$

Not available

10

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 735-3046

Pad, RH Foot
(Superseded to 735-3046A)

$

$

Not available

12

Cub Cadet 735-3047

Pad, LH Foot

$53.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-3090

Washer, Flat, .255 x .720 x .060 Thk

$6.99

$

In Stock, Qty 11

0

14

Cub Cadet 750-0760

Spacer, .511 ID x .70 OD x .38 Lg

$

$

Not available

15

Cub Cadet 759-3738

Running Board w/Graphic

Variations

Cub Cadet 759-3738-0498

RUNNING BOARD W/GRAPHIC - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 777-2101

Graphic, Warning

$

$

Not available

16

Cub Cadet 777-1915

Graphic, Rear Fender

$

$

Not available
