2140 (134-232G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Cylinder Head Parts Diagram

Garden Tractor

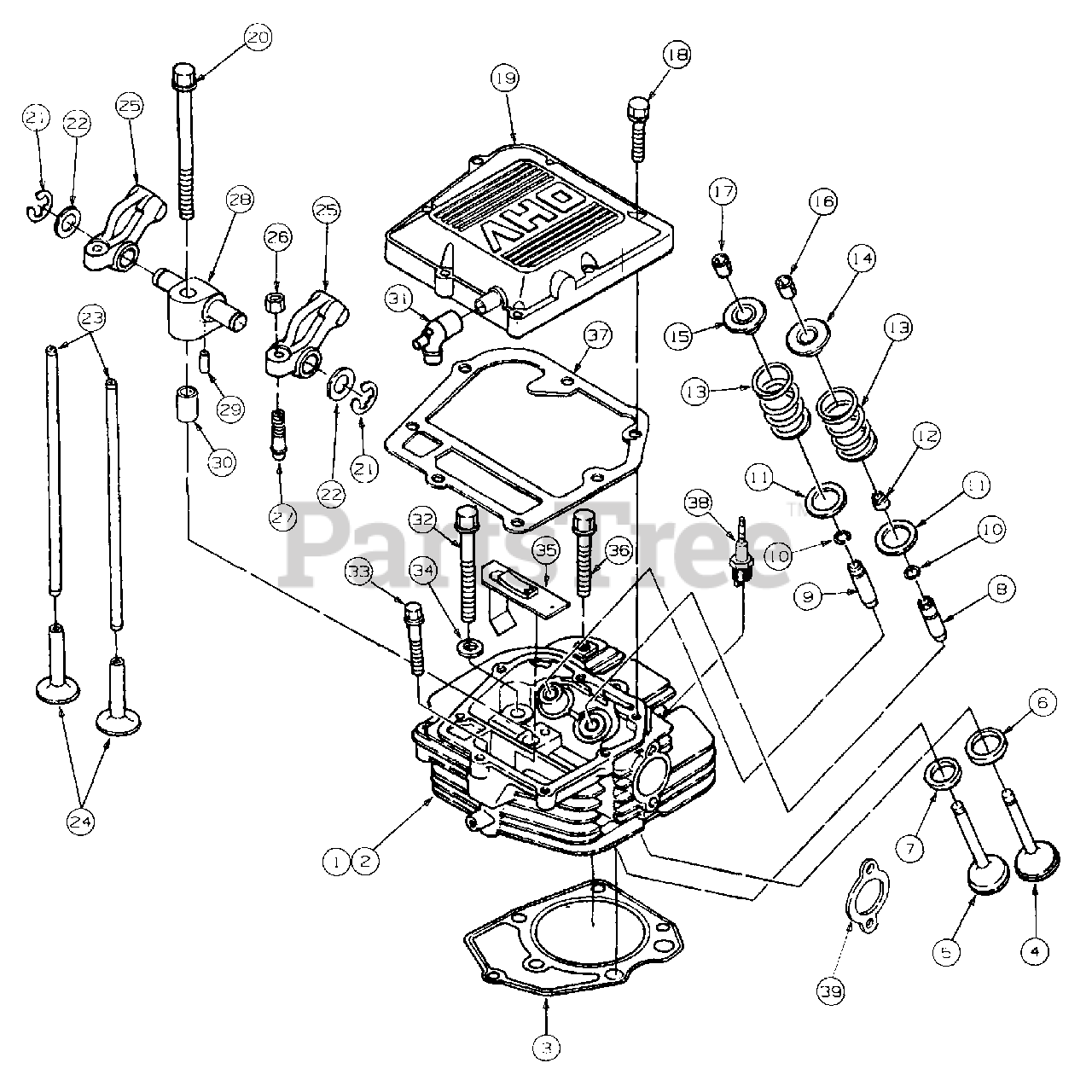

Cylinder Head Parts Diagram

  • Title

1

Cub Cadet ME-110-3828

Head Assy, Cylinder
(Superseded to ME-110-3912)

Note: Includes Ref No. 2 & 4 thru 17

$

$

Not available

2

Cub Cadet ME-110-3710

Head, Cylinder
(Superseded to ME-110-3911)

Note: Includes Ref No. 6 thru 10

$

$

Not available

3

Cub Cadet ME-110-3591

Gasket, Cylinder Head

$65.99

$

Usually ships in 3-6 days

0

4

Cub Cadet ME-110-3578

Valve, Intake

Note: (Marked IN)

$

$

Not available

5

Cub Cadet ME-110-3579

Valve, Exhaust

Note: (Marked EX)

$

$

Not available

6

Seat, Intake Valve

Note: (Not for resale)

$

$

Not available

7

Seat, Exhaust Valve

Note: (Not for resale)

$

$

Not available

8

Cub Cadet ME-110-3693

Guide, Intake Valve

$

$

Not available

9

Cub Cadet ME-110-3694

Guide, Exhaust Valve

$

$

Not available

10

Cub Cadet ME-110-3580

Ring, Valve Guide

$

$

Not available

11

Cub Cadet ME-110-3587

Washer, Valve Spring

$

$

Not available

12

Cub Cadet ME-110-3586

Seal, Intake Valve Stem
(Superseded to ME-509-0289)

$

$

Not available

13

Cub Cadet ME-110-3822

Spring, Valve

$

$

Not available

14

Cub Cadet ME-110-3825

Retainer, Intake Valve Spring

$

$

Not available

15

Cub Cadet ME-110-3826

Retainer, Exhaust Valve Spring

$

$

Not available

16

Cub Cadet ME-110-3827

Lock, Intake Valve

$

$

Not available

17

Cub Cadet ME-110-2752

Lock, Exhaust Valve

$

$

Not available

18

Cub Cadet ME-800-3026

Screw, Hex Flange M6 x 1 x 25 mm

$

$

Not available

19

Cub Cadet ME-110-3863-01

Cover, Valve

$

$

Not available

20

Cub Cadet ME-110-3595

Bolt, Cylinder Head M10 x 1.5 x 125 mm

$

$

Not available

21

Cub Cadet ME-518-0566

Clip, Retainer

$

$

Not available

22

Cub Cadet ME-115-0473

Washer, Rocker Arm

$

$

Not available

23

Cub Cadet ME-115-0424

Rod,Push

$

$

Not available

24

Cub Cadet ME-115-0423

Tappet

$

$

Not available

25

Cub Cadet ME-115-0426

Arm Assy, Rocker

Note: Includes Ref No. 26 & 27

$

$

Not available

26

Cub Cadet ME-115-0428

Nut, Lash Adjusting
(Superseded to ME-115-0496)

$

$

Not available

27

Cub Cadet ME-115-0427

Screw, Lash Adjusting

$

$

Not available

28

Cub Cadet ME-115-0429

Shaft, Rocker Arm

$

$

Not available

29

Cub Cadet ME-516-2004

Pin, Dowel

$

$

Not available

30

Cub Cadet ME-110-3615

Pin, Hollow Dowel

$

$

Not available

31

Cub Cadet ME-123-2030

Connector, Breather Tube

$

$

Not available

32

Cub Cadet ME-110-3594

Bolt, Cylinder Head M10 x 1.5 x 86 mm

$

$

Not available

33

Cub Cadet ME-110-3596

Bolt, Cylinder Head M8 x 1.25 x 50 mm

$5.99

$

In Stock, only 1 left!

0

34

Cub Cadet ME-740-1008

Washer, Flat, M10

$

$

Not available

35

Cub Cadet ME-123-2014

Breather

$

$

Not available

36

Cub Cadet ME-110-3593

Bolt, Cylinder Head M10 x 1.5 x 66 mm

$

$

Not available

37

Gasket, Valve Cover

Note: (Included in Gasket Set)

$

$

Not available

38

Cub Cadet 759-3340

Plug, Spark

$5.49

$

In Stock, only 4 left!

0

39

Cub Cadet ME-155-2378

Gasket, Exhaust

$

$

Not available

Cub Cadet ME-102-1441

Gasket Set

$

$

Not available
