2140 (134-232G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Clutch Assembly Parts Diagram

Garden Tractor

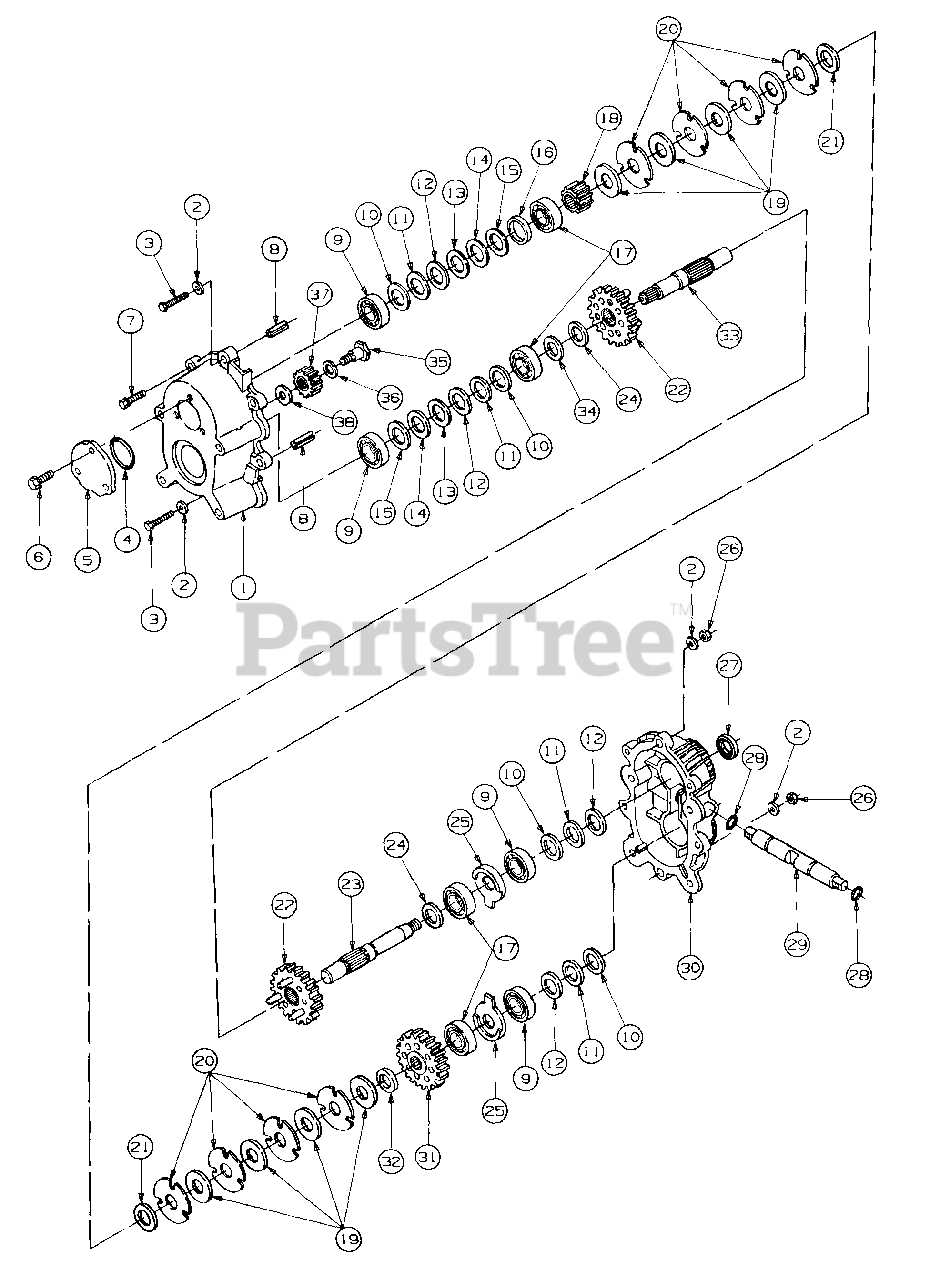

Clutch Assembly Parts Diagram

  • Title

1

Cub Cadet 619-3011

Housing, Rear Clutch

$

$

Currently unavailable

2

Cub Cadet 736-0463

Washer, Flat, .25 x .62 x .052 Thk

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 x 1.5 Lg

$5.49

$

In Stock, Qty 9

0

4

Cub Cadet 721-3048

O-Ring, 1.88 x .103

$

$

Not available

5

Cub Cadet 718-3017

Plate, Clutch Shim

$

$

Not available

6

Cub Cadet 710-3282

Screw, Hex TT-Tap, 1/4-20 x .62 Lg

$

$

Not available

7

Cub Cadet 710-0788

Screw, Hex Wash TT-Tap, 1/4-20 x 1.0 Lg

$7.49

$

In Stock, only 4 left!

0

8

Cub Cadet 715-3038

Pin, Slotted Spring, 7/16 x 1.0 Lg

$

$

Not available

9

Cub Cadet 741-3057

Bearing
(Superseded to 941-3057)

$38.99

$

In Stock, Qty 10

0

10

Cub Cadet 736-3126

Washer, Flat, 1.25 x 1.8 x .005 Thk

$

$

Not available

11

Cub Cadet 736-3127

Washer, Flat, 1.25 x 1.8 x .010 Thk
(Superseded to 936-3127)

$6.99

$

In Stock, Qty 9

0

12

Cub Cadet 736-3104

Washer, Flat, 1.25 x 1.8 x .015 Thk
(Superseded to 936-3104)

$

$

Not available

13

Cub Cadet 736-3105

Washer, Flat, 1.25 x 1.8 x .020 Thk
(Superseded to 736-3105A)

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-3106

Washer, Flat, 1.25 x 1.8 x .025 Thk
(Superseded to 936-3106)

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 736-3107

Washer, Flat, 1.25 x 1.8 x .062 Thk

$

$

Not available

16

Cub Cadet 750-3079

Spacer, Clutch Input

$

$

Not available

17

Cub Cadet 741-3040

Bearing, Angular Contact
(Superseded to 941-3040)

$

$

Not available

18

Cub Cadet 717-3355

Gear, 18T Spur

$

$

Not available

19

Cub Cadet 718-3004

Plate, Clutch
(Superseded to 918-3004)

$22.99

$

In Stock, Qty 16

0

20

Cub Cadet 703-2133

Disc, Friction
(Superseded to 903-2133)

$

$

Not available

21

Cub Cadet 736-3107

Washer, Flat, 1.25 x 1.8 x .062 Thk

$

$

Not available

22

Cub Cadet 618-3020

Carrier Assy, Clutch
(Superseded to 918-3020)

$125.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 711-3323

Shaft, Input

$

$

Not available

24

Cub Cadet 736-0287

Washer, Flat, .793 x 1.24 x .060 Thk

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 718-3003

Fulcrum, Clutch

$

$

Not available

26

Cub Cadet 712-3051

Nut, Hex Top Lock, 1/4-20

$

$

Not available

27

Cub Cadet 721-3035

Seal, Input

$

$

Not available

28

Cub Cadet 721-3033

O-Ring, 1/2 x 5/8

$

$

Not available

29

Cub Cadet 711-3325

Shaft, Clutch Actuator

$

$

Currently unavailable

30

Cub Cadet 619-3009

Housing, Front Clutch

$

$

Currently unavailable

31

Cub Cadet 717-3363

Gear, 36T

$

$

Not available

32

Cub Cadet 750-3077

Spacer, .915 ID x 1.25 OD x .148 Lg

$

$

Not available

33

Cub Cadet 711-3324

Shaft, Output

$

$

Not available

34

Cub Cadet 736-0443

Washer, Flat, .812 x 1.12 x .108 Thk

$

$

Not available

35

Cub Cadet 738-3096

Shaft, Reverse Idler Gear

$

$

Not available

36

Cub Cadet 736-3102

Washer, Flat, .50 x .86 x .030 Thk

$

$

Not available

37

Cub Cadet 618-3057

Gear Assy, 16T Reverse Idler

$

$

Not available

38

Cub Cadet 736-0344

Washer, Flat, .385 x 1.0 x .030 Thk

$4.99

$

In Stock, Qty 20+

0
