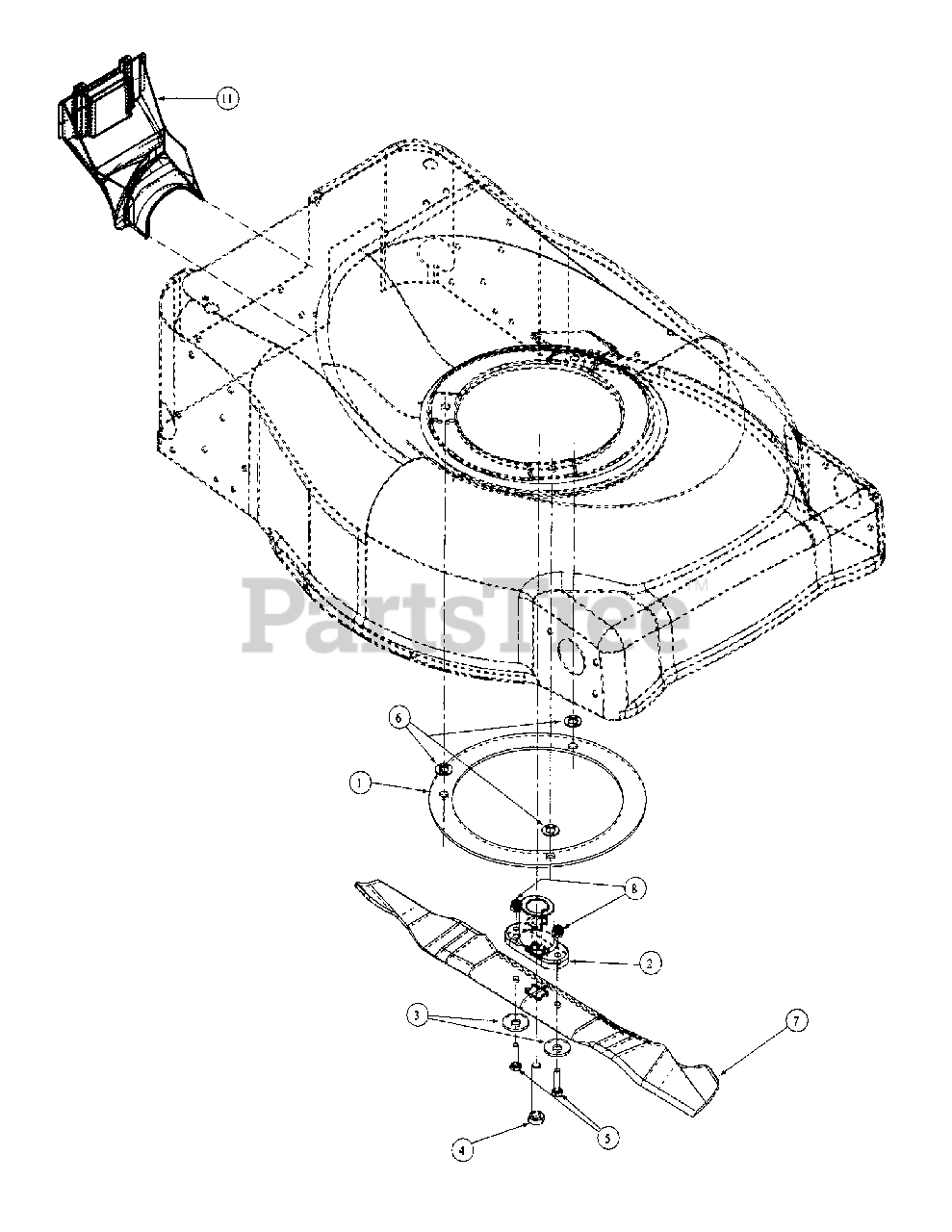

214 KW (51A-330-195) - MTD Pro Walk-Behind Mower Blade - Kawasaki Parts Diagram

Pro Walk-Behind Mower

Blade - Kawasaki Parts Diagram

  • Title
1

MTD 01002812

Engine Mount Support Plate, W/O BBC

Note: NLA

$

$

Not available

2

MTD 753-05151

Blade Adapter, 6 x 2.15 W/Star

$67.99

$

Usually ships in 3-6 days

0

3

MTD 01000942

Bell Washer, .396 x 1.140 x .095

$

$

Not available

4

MTD 710-1257

HHCS: 3/8-24, 2.50, Group 8, Spec

$7.99

$

In Stock, only 1 left!

0

5

MTD 01000944

HHCS, 1/4-20, 1.00, Group 5, Spec

$6.49

$

Usually ships in 3-6 days

0

6

MTD 01002710

Flat Washer, 3/8 X .738 X .063

$6.49

$

Usually ships in 3-6 days

0

7

MTD 942-0741

Blade:21" Mulching W/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

8

MTD 712-0324

Hex Nut, 1/4-20, GRC, Lock

$3.99

$

In Stock, Qty 16

0

11

MTD 931-1685

Mulch Plug

$

$

Not available
