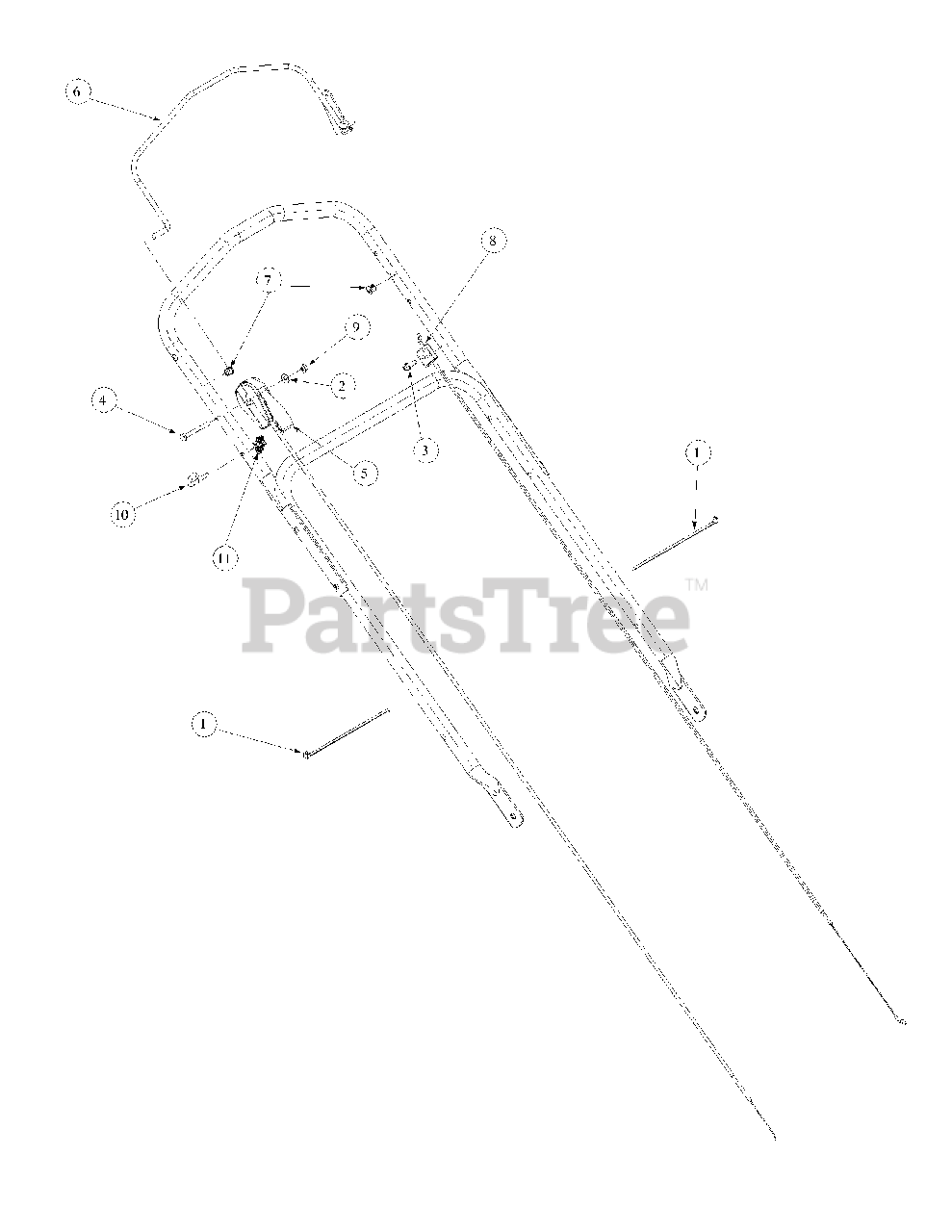

214 IP (51B-330-195) - MTD Pro Walk-Behind Mower Push Control Parts Diagram

Pro Walk-Behind Mower

Push Control Parts Diagram

  • Title
1

MTD 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, Qty 20+

0

2

MTD 936-0463

Flatwasher 1/4 X .630 X .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0642

Screw, TT, 1/4-20, 0.750, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0641

HHCS, 1/4-20, 2.25, GR5, Standard

$4.49

$

In Stock, only 2 left!

0

5

MTD 01000908

Control Throttle, W/Cable, KAW

$

$

Not available

6

MTD 01002843

Control Lever, W/0 BBC

$

$

Not available

7

MTD 01002527

Bushing, .3125 Diameter, Snap

$

$

Not available

8

MTD 01000859P

Control Cable

$

$

Not available

9

MTD 912-3027

Nut, 1/4-20, Hex Flange, Lock, Group F

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1205

Eye Bolt, 1/4-20, Bent Rope GDE

$3.99

$

In Stock, Qty 20+

0

11

MTD 720-0279

Handle Knob, ERS 1/4-20

$4.49

$

In Stock, Qty 20+

0
