214 IP (51B-330-195) - MTD Pro Walk-Behind Mower Handle Parts Diagram

Pro Walk-Behind Mower

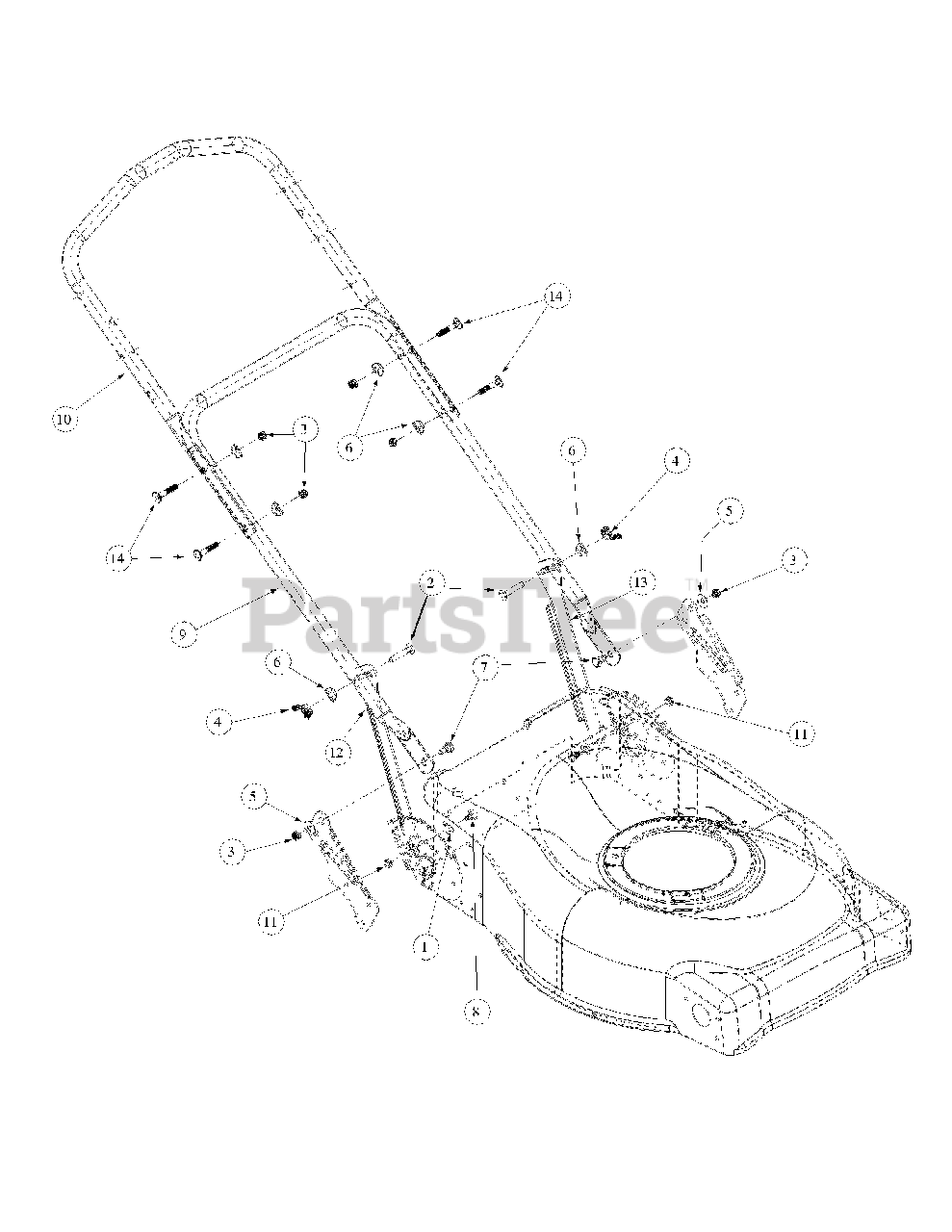

Handle Parts Diagram

  • Title

1

MTD 00012577

Thrust Washer

$5.49

$

In Stock, Qty 12

0

2

MTD 710-0458

Carrige Bolt, 5/16-18, 1.75

$4.49

$

In Stock, only 4 left!

0

3

MTD 912-0429

Hex Nut, 5/16-18, GRC, Lock
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

4

MTD 01000958

Wing Nut, 5/16-18, Lock

$

$

Not available

5

MTD 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

6

MTD 936-0451

Saddle Washer, 320 ID X .93 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

7

MTD 938-0141

Shoulder Screw, .435 x .350, 5/16-18

$7.49

$

In Stock, Qty 7

0

8

MTD 938-0155

Shield, Screw .437 x 1.62 LG

$6.99

$

Usually ships in 3-6 days

0

9

MTD 01002805

Lower Handle, 1.0"

$

$

Not available

10

MTD 01002808

Upper Handle, 1.0"

$

$

Not available

11

MTD 01002695

Lock Nut, 5/16-18, CEN

$

$

Not available

12

MTD 01001673

Strut, 3 Position Handle, Right hand

$

$

Not available

13

MTD 01001671

Strut, 3 Position Handle, Left hand

$

$

Not available

14

MTD 710-1174

Carrige Bolt, 5/16-18 x 2.0 CRVD

$7.49

$

In Stock, Qty 20+

0
