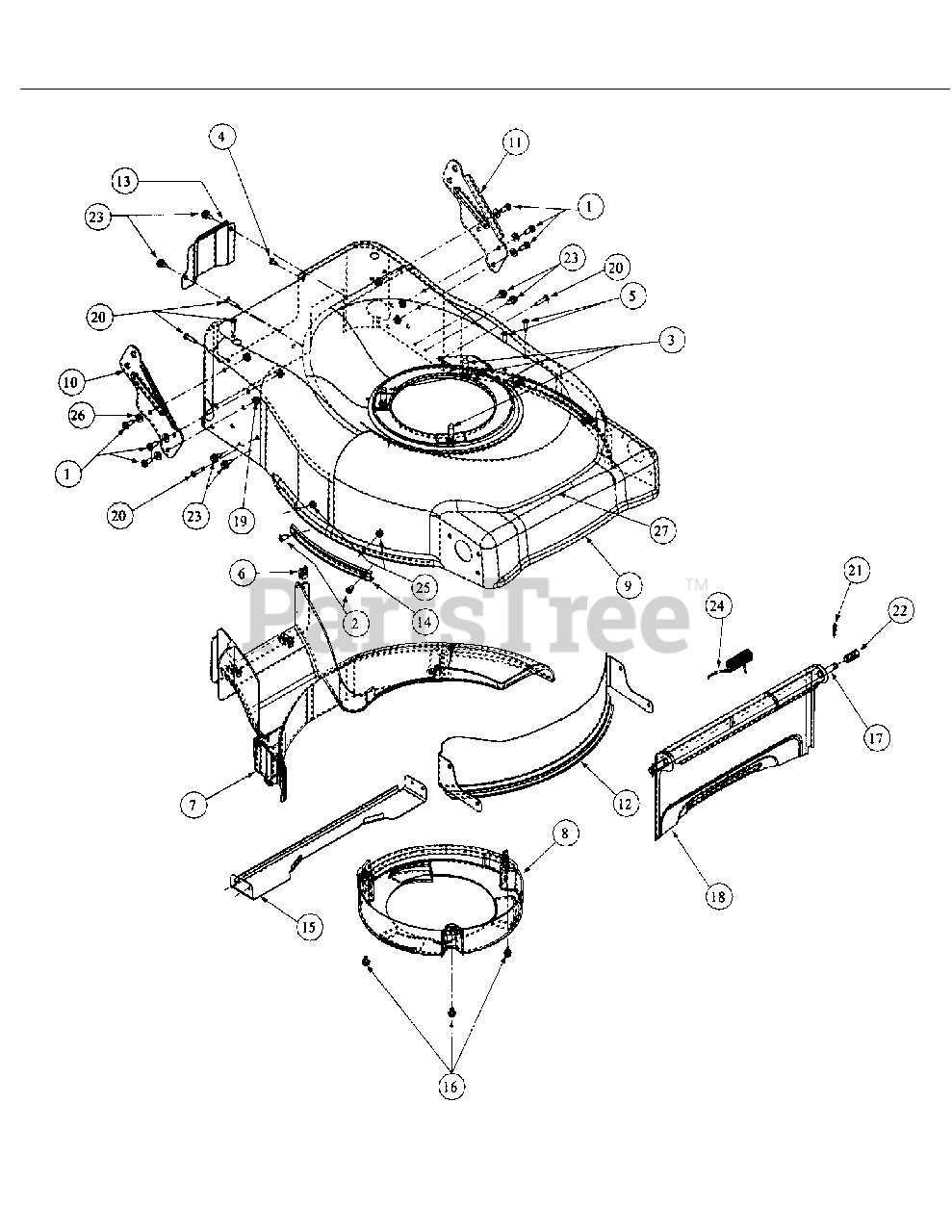

214 IP (51B-330-195) - MTD Pro Walk-Behind Mower Cutter Deck Parts Diagram

Pro Walk-Behind Mower

Cutter Deck Parts Diagram

  • Title

1

MTD 710-0751

HHCS, 1/4-20, .620, GR5, Standard

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-3256

Screw Button HD, 1/4-20 x .5

$10.99

$

Usually ships in 3-6 days

0

3

MTD 710-0502A

Screw, TTSems, 3/8-16, 1.250, HXLWS

$6.99

$

In Stock, only 2 left!

0

4

MTD 710-0351

Screw, B, 10-16, 0.500, TRUSTRX1

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1220

Screw, HL, 12-16:0.750, TRUSTRX1

$4.99

$

In Stock, only 4 left!

0

6

MTD 912-0400

U-Nut, 10-16

$5.99

$

Usually ships in 3-6 days

0

7

MTD 01000885

Baffle, RR, 21" Commercial

$

$

Not available

8

MTD 01000886

Cover, 21" Commercial

$

$

Not available

9

MTD 01002785

Deck, 21" Commercial

Note: NLA

$

$

Not available

10

MTD 01002788

Bracket, Handle, RH Commercial

$

$

Not available

11

MTD 01002789

Bracket, Handle, LH Commercial

$

$

Not available

12

MTD 01002790

Baffle Front Commercial 10.81 R

Note: NLA

$

$

Not available

13

MTD 01002795

Cover Plate

Note: NLA

$

$

Not available

14

MTD 01002800

Guard, Deck Side Flange

Note: NLA

$

$

Not available

15

MTD 01002803

Bracket, Support Baffle

$

$

Not available

16

MTD 710-0653

Screw, TT, 1/4-20, 0.375, Hex Indicator Washer

$4.49

$

In Stock, Qty 7

0

17

MTD 01002524

Rod, Pivot, Chute Door, .375 D1

$

$

Not available

18

MTD 01002793

Door, Grassbag, 21" RB

$

$

Not available

19

MTD 912-3027

Nut, 1/4-20, Hex Flange, Lock Group F

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0969

Screw, HL, 12-16, 1.000, TRUSTRXI

$4.49

$

In Stock, only 2 left!

0

21

MTD 914-0104

Cotter Pin, INT .072 x 1.12 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

22

MTD 750-0434

Spacer, .315 x .50 x 1.02 LG

$6.99

$

Usually ships in 3-6 days

0

23

MTD 01002775

Screw, AB, 1/4-14, 0.625, Hex Indicator Washer

$

$

Not available

24

MTD 932-0809

Spacer, Torsion, LH 0.120 x 15C

$18.99

$

Usually ships in 3-6 days

0

25

MTD 712-0324

Hex Nut, 1/4-20 GRC, Lock

$3.99

$

In Stock, Qty 16

0

26

MTD 936-0463

Flat Washer, 1/4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

27

MTD 01004521

Label, 21" Commercial

$

$

Not available
