214 IP (51B-330-195) - MTD Pro Walk-Behind Mower B&S Engine Cylinder & Head Parts Diagram

Pro Walk-Behind Mower

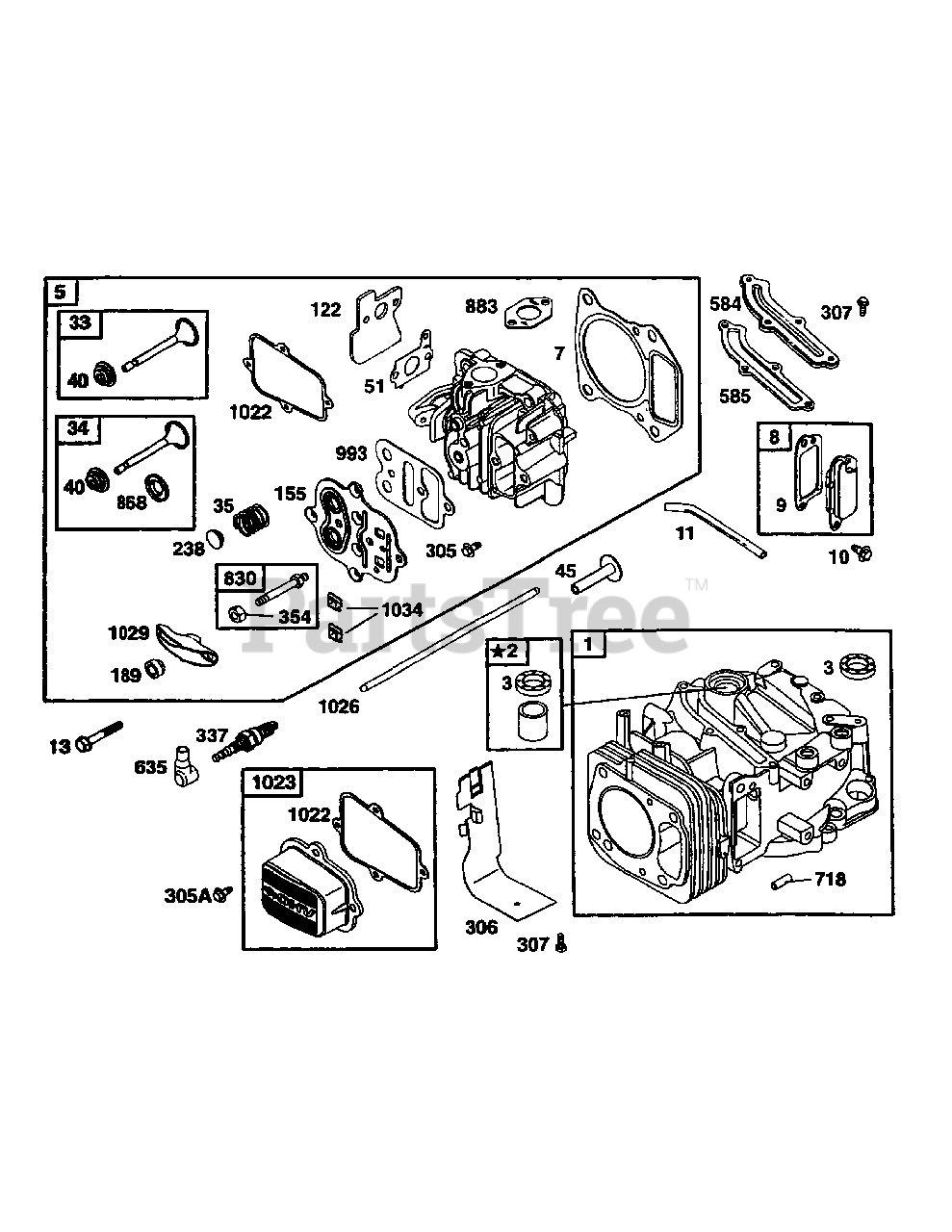

B&S Engine Cylinder & Head Parts Diagram

  • Title

1

MTD BS-499678

Cylinder Assembly

Note: NLA

$

$

Not available

2

MTD BS-399269

Bushing

$21.99

$

In Stock, only 1 left!

0

3

MTD BS-299819S

Seal-Oil

$5.49

$

In Stock, Qty 13

0

5

MTD n/a

Cylinder Head

$

$

Currently unavailable

7

MTD BS-697230

Cylinder Head Gasket

$9.99

$

In Stock, Qty 5

0

8

MTD BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

9

MTD BS-272481

Breather Gasket
(Superseded to BS-699833)

$5.49

$

Usually ships in 2-12 days

0

10

MTD BS-94955

Screw-Hex

Note: NLA

$

$

Not available

11

MTD BS-499675

Breather Tube
(Superseded to BS-691781)

$10.99

$

Usually ships in 2-12 days

0

13

MTD BS-691137

Screw-Hex

$

$

Not available

33

MTD BS-499642

Exhaust Valve

$35.99

$

In Stock, only 3 left!

0

34

MTD BS-795443

Intake Valve

$27.99

$

In Stock, only 1 left!

0

35

MTD BS-263149

Valve Spring

Note: NLA

$

$

Not available

40

MTD BS-93312

Valve Retainer
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 9

0

45

MTD BS-690977

Valve Tappet

$7.99

$

Usually ships in 2-12 days

0

51

MTD BS-692688

Intake Gasket

Note: NLA

$21.99

$

Usually ships in 3-6 days

0

122

MTD BS-692799

Carburetor Spacer

$14.99

$

In Stock, only 1 left!

0

155

MTD BS-696268

Cylinder Head Plate

$

$

Not available

189

MTD BS-263108

Rocker Arm Ball

Note: NLA

$

$

Not available

238

MTD BS-691300

Valve Cap

$9.49

$

In Stock, Qty 9

0

305

MTD BS-691108

Screw-Hex

$3.49

$

In Stock, Qty 20+

0

305A

MTD BS-691127

Screw-Hex

$4.49

$

In Stock, Qty 13

0

306

MTD BS-225366

Cylinder Shield

Note: NLA

$

$

Not available

307

MTD BS-690345

Screw-Hex

$4.99

$

Usually ships in 2-12 days

0

337

MTD 759-3336

Spark Plug
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

354

MTD BS-95137

Lock Nut

Note: NLA

$

$

Not available

584

MTD BS-224328

Breather Passage Cover

Note: NLA

$

$

Not available

585

MTD BS-691879

Breather Passage Gasket

$6.99

$

In Stock, only 1 left!

0

635

MTD BS-66538S

Spark Plug Boot

$3.99

$

In Stock, Qty 5

0

718

MTD BS-690959

Locating Pin

$6.99

$

In Stock, only 1 left!

0

830

MTD BS-694543

Rocker Arm Stud

$

$

Not available

868

MTD BS-692044

Valve Seal

$

$

Not available

883

MTD BS-691893

Exhaust Gasket

$4.49

$

In Stock, Qty 20+

0

993

MTD BS-694088

Plate Gasket

$8.49

$

In Stock, Qty 16

0

1022

MTD BS-691890

Rocker Cover Gasket

$7.99

$

In Stock, Qty 6

0

1023

MTD BS-692694

Rocker Cover

$35.99

$

Usually ships in 2-12 days

0

1026

MTD BS-692045

Push Rod
(Superseded to BS-795444)

$11.99

$

Usually ships in 2-12 days

0

1029

MTD BS-691230

Rocker Arm

$9.49

$

Usually ships in 2-12 days

0

1034

MTD BS-691343

Push Rod Guide

$9.99

$

In Stock, only 2 left!

0

MTD BS-692752

Short block

Note: NLA

$

$

Currently unavailable

MTD BS-122672-0020

Complete Engine Assembly

$

$

Not available
