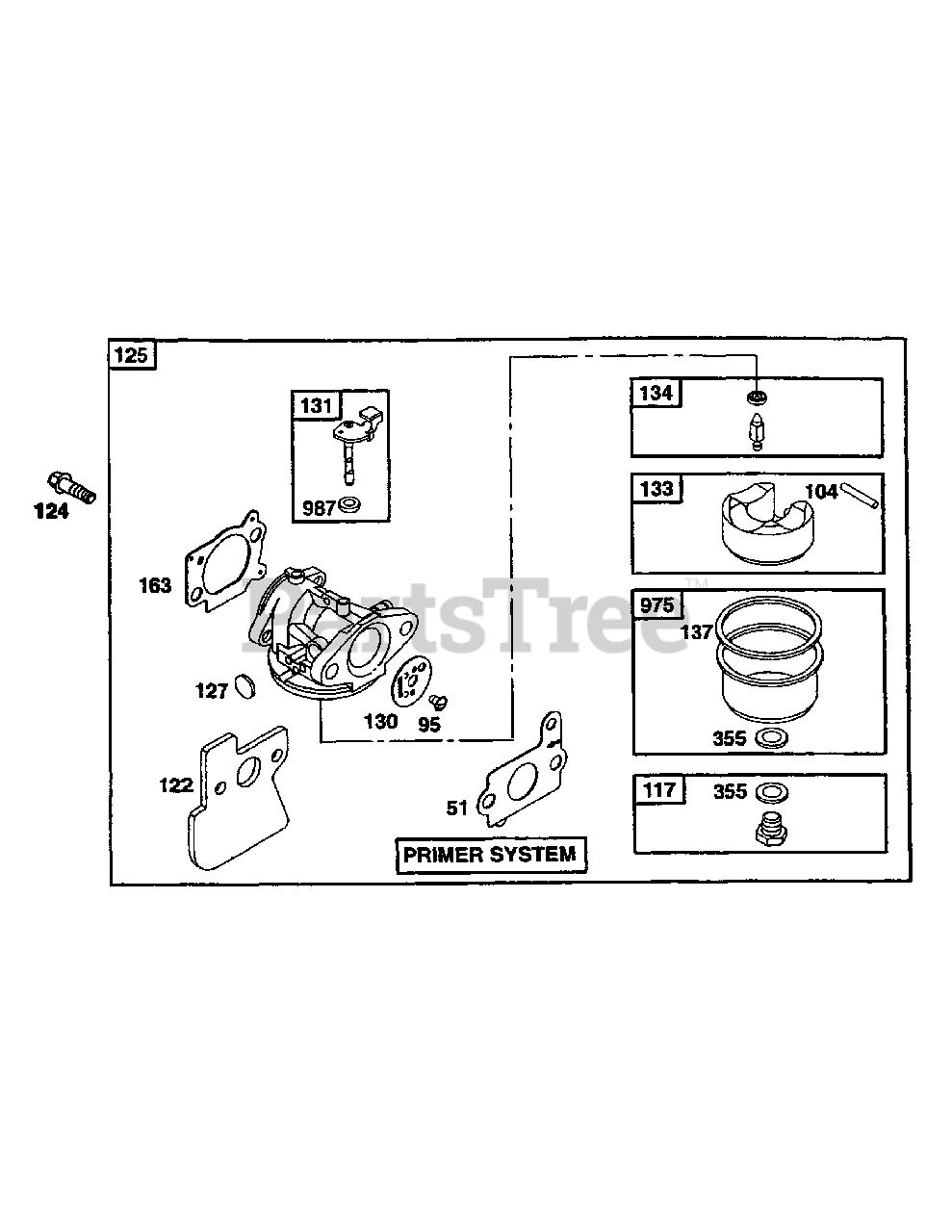

214 IP (51B-330-195) - MTD Pro Walk-Behind Mower B&S Engine Carburetor Assy Parts Diagram

Pro Walk-Behind Mower

B&S Engine Carburetor Assy Parts Diagram

  • Title
51

MTD BS-692668

Intake Gasket

$4.49

$

In Stock, only 3 left!

0

95

MTD BS-691636

Round Head Screw

$3.99

$

In Stock, only 2 left!

0

104

MTD n/a

Float Pin

$

$

Currently unavailable

117

MTD BS-692677

Main Jet

$19.99

$

Usually ships in 2-12 days

0

122

MTD BS-692799

Carburetor Spacer

$14.99

$

In Stock, only 1 left!

0

124

MTD BS-691136

Screw Hex
(Superseded to BS-691148)

$3.99

$

In Stock, only 2 left!

0

125

MTD BS-790120

Carburetor

$

$

Not available

127

MTD n/a

Welch Plug

$

$

Currently unavailable

130

MTD BS-691203

Throttle Valve

$9.49

$

Usually ships in 2-12 days

0

131

MTD BS-499682

Throttle Shaft

$16.99

$

Usually ships in 2-12 days

0

133

$9.99

$

In Stock, Qty 20+

0

134

MTD BS-398188

Needle Valve

$6.49

$

In Stock, Qty 20+

0

137

MTD n/a

Float Bowl Gasket

$

$

Currently unavailable

163

MTD BS-691894

Air Cleaner Gasket

$4.99

$

In Stock, Qty 6

0

355

MTD n/a

Seal Washer

$

$

Currently unavailable

975

MTD BS-796611

Float Bowl

$

$

Not available

987

MTD n/a

Throttle Shaft Seal

$

$

Currently unavailable

MTD BS-792383

Carburetor Kit

Note: (Not shown)

$28.99

$

In Stock, only 1 left!

0
