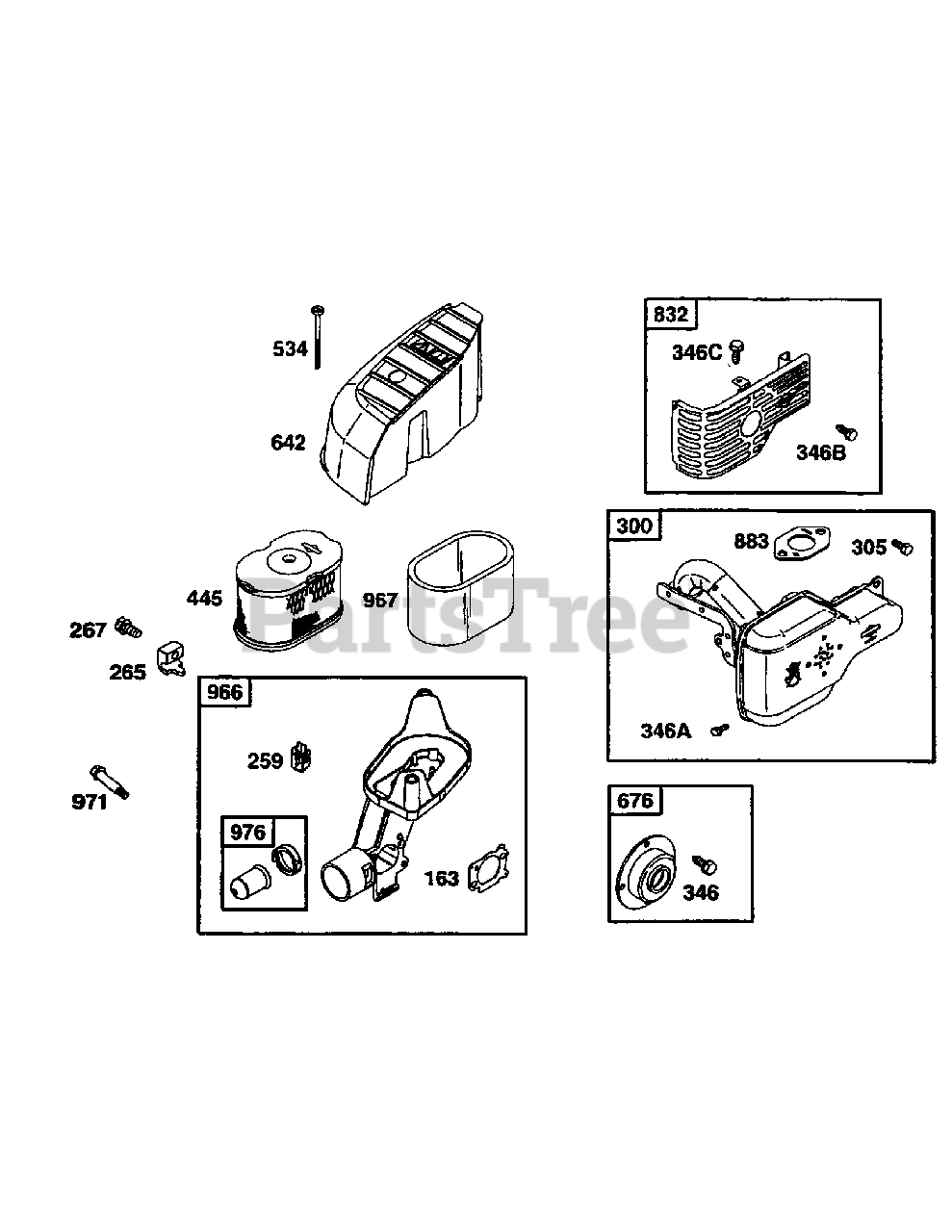

214 IP (51B-330-195) - MTD Pro Walk-Behind Mower B&S Engine Air Cleaner & Muffler Parts Diagram

Pro Walk-Behind Mower

B&S Engine Air Cleaner & Muffler Parts Diagram

  • Title

163

MTD BS-691894

Air Cleaner Gasket

$4.99

$

In Stock, Qty 11

0

259

MTD BS-691189

Casing Clamp Bracket

$4.99

$

Usually ships in 2-12 days

0

265

MTD 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

267

MTD BS-94694

Slotted Hex Screw

Note: NLA

$

$

Not available

300

MTD BS-692276

Muffler

Note: NLA

$42.99

$

Usually ships in 3-6 days

0

305

MTD BS-691108

Hex Screw

$3.49

$

In Stock, Qty 20+

0

346

MTD BS-690661

Hex Screw

$3.49

$

In Stock, Qty 9

0

346A

MTD BS-691140

Hex Screw

$3.99

$

Usually ships in 2-12 days

0

346B

MTD BS-690664

Hex Screw

$5.49

$

In Stock, only 1 left!

0

346C

MTD BS-692198

Hex Screw

$5.99

$

In Stock, Qty 13

0

445

MTD BS-697029

Air Filter

$13.99

$

In Stock, Qty 20+

0

534

MTD BS-690244

Shoulder Screw

$3.99

$

In Stock, only 2 left!

0

642

MTD BS-692692

Air Cleaner Cover

$

$

Not available

676

MTD BS-397931

Muffler Deflector

Note: NLA

$14.99

$

Usually ships in 2-12 days

0

832

MTD BS-692984

Muffler Guard

Note: NLA

$19.99

$

Usually ships in 2-12 days

0

883

MTD BS-691893

Exhaust Gasket

$4.49

$

In Stock, Qty 20+

0

966

MTD BS-690243

Air Cleaner Base

$

$

Not available

967

MTD BS-273356S

Pre Filter

$5.49

$

In Stock, Qty 16

0

971

MTD BS-690255

Shoulder Screw

$5.99

$

In Stock, only 3 left!

0

976

MTD BS-694395

Carb Primer

$4.49

$

In Stock, Qty 20+

0
