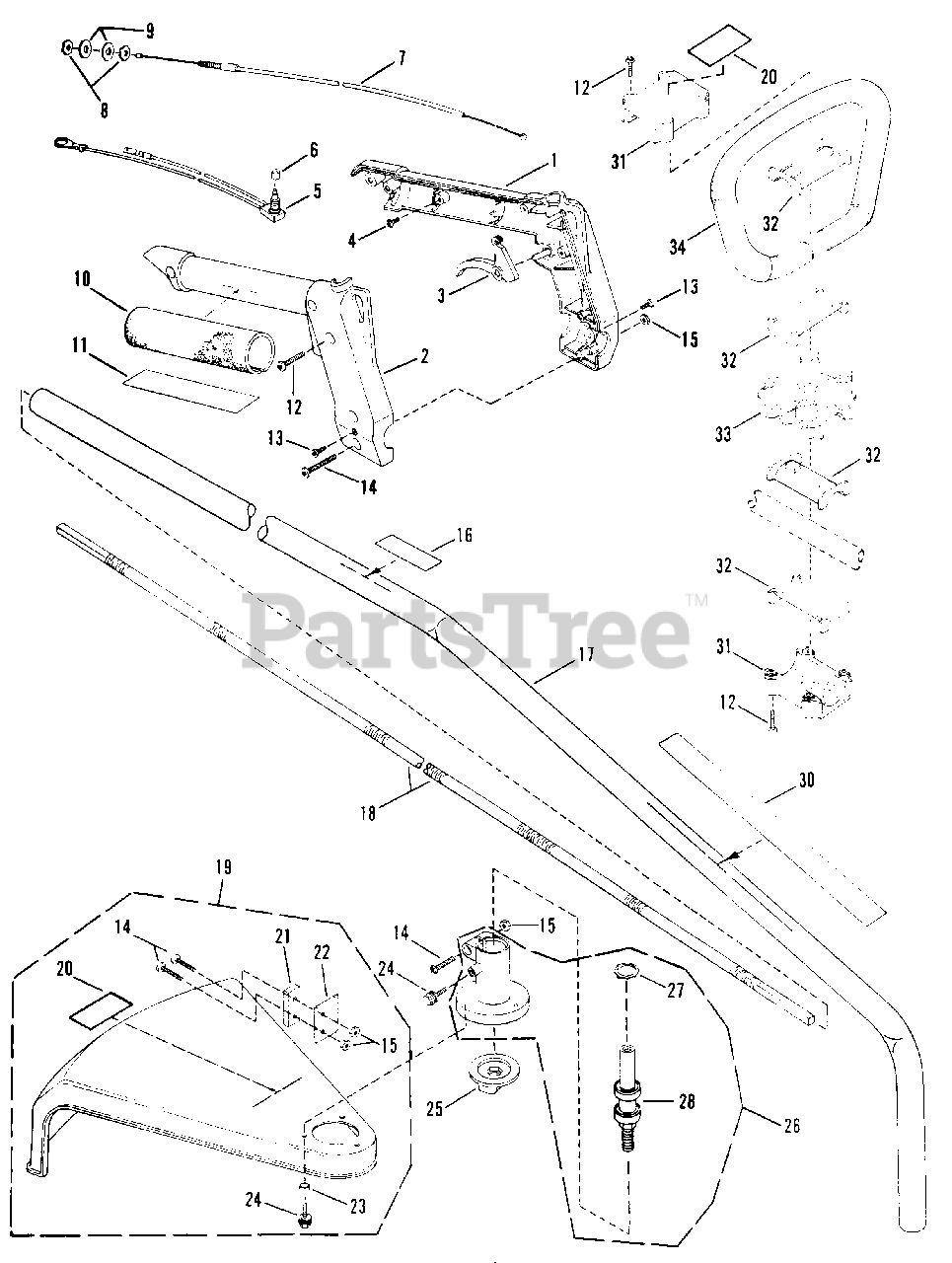

String Trimmer

Main Assembly Parts Diagram

  • Title

1

Snapper 7019761

HANDLE, Left Half

$

$

Not available

2

Snapper 7017003

HANDLE, Right Half

$

$

Not available

3

Snapper 7018854

TRIGGER

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7090957

SCREW, #10-16 x 3/8"

$

$

Currently unavailable

5

Snapper 7042304

SWITCH

Note: (Includes item 6)

$

$

Currently unavailable

6

Snapper 7015620

CAP, Switch

$

$

Not available

7

Snapper 7042302

CABLE, Throttle

$

$

Not available

8

Snapper 7042504

NUT, M6 Hex

$

$

Currently unavailable

9

Snapper 7042505

WASHER

$

$

Not available

10

Snapper 7015091

GRIP, Handle

$

$

Currently unavailable

11

Snapper 7015134

STRIP, Adhesive

$

$

Not available

12

Snapper 7090902

SCREW, #10-16 x 3/4"

$

$

Not available

13

Snapper 7090900

SCREW, TORX, #6 x 5/16"

$

$

Not available

14

Snapper 7090901

SCREW, #10-32 x 7/8"

$

$

Not available

15

Snapper 7090885

LOCKNUT, #10-32

$

$

Not available

16

Snapper 7023457

DECAL-WARNING (Eye Protection)

$

$

Currently unavailable

17

Snapper 7057501

TUBE/DECAL ASSM'Y.

Note: (Incl. items 16 & 30)

$

$

Currently unavailable

18

Snapper 7042419

SHAFT, Flex (53.96" x .245", .2" Square Ends x 1.38")

Note: Was 15652

$

$

Not available

19

Snapper 7016007

SHIELD ASSM'Y. KIT

Note: Was 68046 (Includes 20 & 23)

$14.99

$

Usually ships in 2-12 days

0

20

Snapper 7015984

DECAL, Replacement Part

$

$

Not available

21

Snapper 7015644

BLOCK, Line Cutter Mounting
(Superseded to 7015644YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7015645

CUTTER ASSM'Y., Line
(Superseded to 7015645YP)

Note: Was 51713

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7015240

SPACER

$

$

Not available

24

Snapper 7091075

SCREW, #10-24 x 5/8"
(Superseded to 7091075SM)

Note: Was 90956

$4.49

$

In Stock, Qty 5

0

25

Snapper 7018887

DUST SHIELD

$

$

Not available

26

Snapper 7051791

BEARING HOUSING ASSM'Y.,

Note: Was 51670 (Now 15651 + 15768 + 51791)

$

$

Currently unavailable

27

Snapper 7015768

RETAINER

$

$

Not available

28

Snapper 7051791

BEARING/ARBOR ASSM'Y.

$

$

Currently unavailable

30

Snapper 7018886

DECAL, Model

$

$

Currently unavailable

31

Snapper 7018909

HANDLE MOUNT, Cap

$

$

Currently unavailable

32

Snapper 7015739

ISO-MOUNT

$

$

Currently unavailable

33

Snapper 7017001

HANDLE MOUNT, Center

$

$

Currently unavailable

34

Snapper 7051671

HANDLE ASSM'Y., Loop

$

$

Not available
