214-406-000 - MTD Tiller (1994) Wheel Shaft Assembly Parts Diagram

Tiller

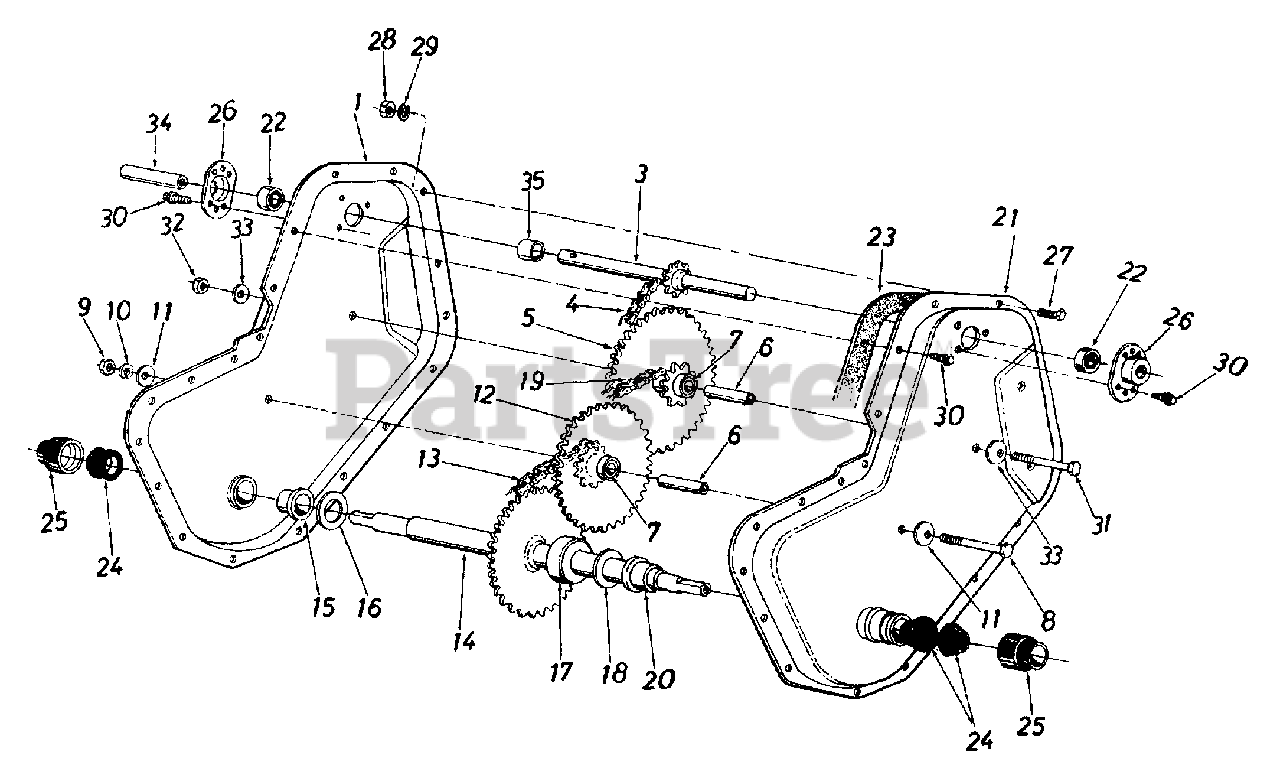

Wheel Shaft Assembly Parts Diagram

  • Title

1

MTD 686-0066

Chain Case Half Ass'y. - R.H.

Variations

MTD 686-0066-0637

No Longer Available CASE HALF- - POWDER BLACK (0637)

$

$

Not available

$

$

?2

MTD 748-0154

Bearing 5/8" I.D. x .813" O.D. x 1.31" Lg.

$

$

Not available

3

MTD 784-0136A

Input Shaft Ass'y.

$

$

Not available

4

MTD 713-0325

Chain #35 - 3/8" Pitch x 44 Links

$

$

Not available

5

MTD 713-0316

Sprocket and Hub Ass'y.

$

$

Currently unavailable

6

MTD 750-0351

Bearing Inner Axle

$

$

Not available

7

MTD 741-0228

Sleeve Brg. 5/8" I.D. x 3/4" O.D. x 1.50

$

$

Not available

8

MTD 710-0369

Hex Bolt 3/8-24 x 2.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

9

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

10

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-0219

Bell-Wash. .41" I.D. x 1.13" O.D. x .03
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

12

MTD 713-0330

Sprocket & Hub Ass'y. 9T-22T

$

$

Not available

13

MTD 713-0326

#420 Chain 1/2 Pitch x 28 Links Endless
(Superseded to 913-0326)

$

$

Not available

14

MTD 784-0126A

Wheel Shaft Ass'y.

$

$

Not available

15

MTD 741-0227

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

16

MTD 736-0265

Fl-Wash. .88" I.D. x 1.5" O.D. x .03

$

$

Not available

17

MTD 750-0354A

Spacer 7/8" I.D. x 1 3/4" O.D. x .68" Lg.

$

$

Not available

18

MTD 736-0265

Fl-Wash. .88" I.D. x 1.50" O.D. x .03

$

$

Not available

19

MTD 713-0267

#420 Chain 1/2" Pitch x 30 Links Endless

$

$

Not available

20

MTD 741-0227

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

21

MTD 15797

Chain Case Half Ass'y. - L.H.

Variations

MTD 15797-0637

No Longer Available HOUSING-WH - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 741-0155

Bearing
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

23

MTD 721-0156

Gasket
(Superseded to 921-0156A)

$

$

Not available

24

MTD 721-0157

Seal

$

$

Not available

25

MTD 731-0486

Dust Cup

$

$

Not available

26

MTD 05034A

Bearing Housing

Note: New Part

$

$

Not available

27

MTD 710-0195

Hex Bolt 1/4-28 x 5/8" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

28

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

29

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-0378

Hex Bolt 5/16-18 x 2.5" Lg.

$4.99

$

In Stock, only 4 left!

0

32

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

33

MTD 736-0159

Fl-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

34

MTD 750-0917

Spacer .64" I.D. x 1.76" Lg.

$

$

Not available

35

MTD 750-0916

Spacer .64" I.D. x .45" Lg.

$

$

Not available

MTD 737-0223

Grease - #00EP (16 oz. Bottle-10 oz. Req'd.)
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 19

0

MTD 686-0069

Wheel Chain Case Comp.

Note: New Part

$

$

Currently unavailable
